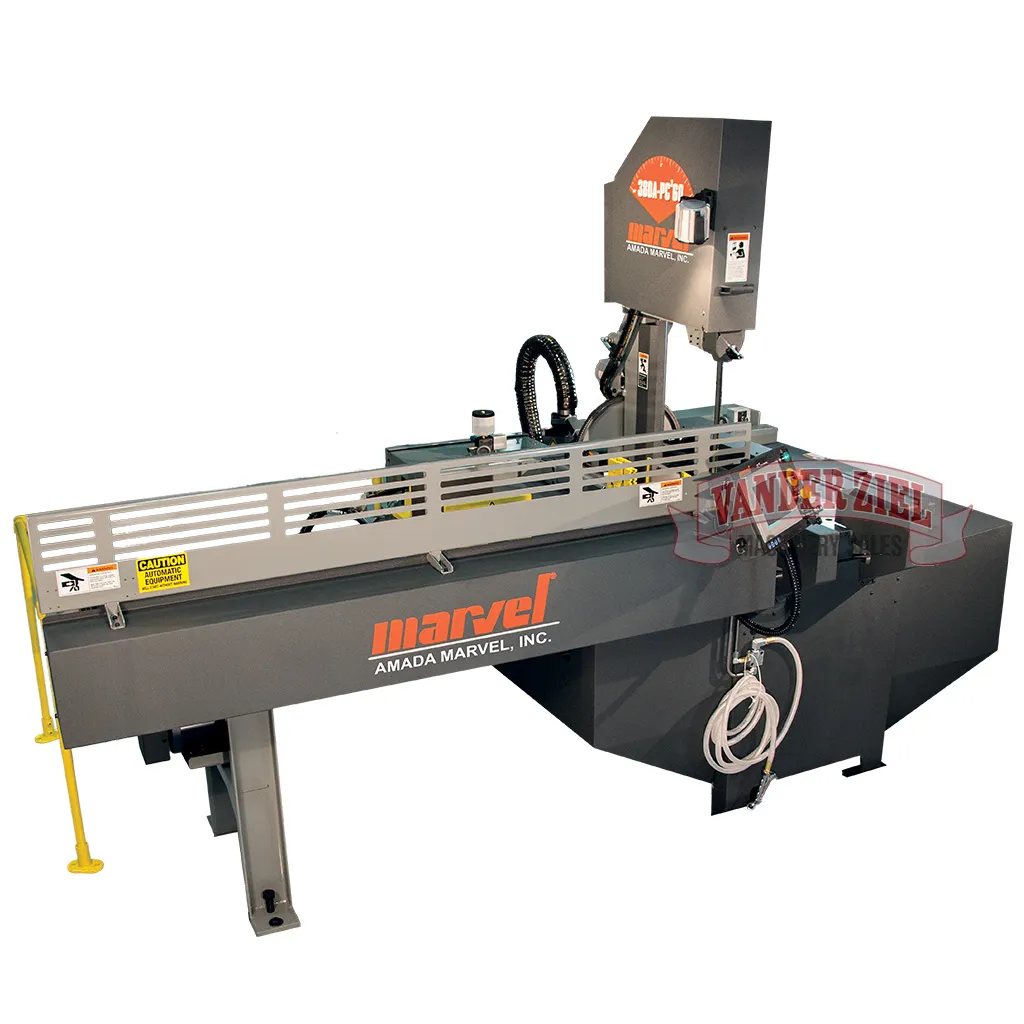

Marvel Series 380A-PC60 Automatic Indexing Vertical Tilt-Frame Saw, 15" x 20" Capacity - NEW

Marvel Series 380A-PC60 Automatic Indexing Vertical Tilt-Frame Saw, 15" x 20" Capacity - NEW

SKU#2321007

Capacity                                   Rectangles                                           Rounds
Nominal 0º Cant                        15" x 20" (381 mm x 508 mm)                 15" (381 mm)
Blade at  45^o                             15" x 14" (381 mm x 355 mm)                 14" (355 mm)
Blade at  60^o                             15" x   9.25" (381 mm x 235 mm)              9.25" (235 mm)
Blade at -45^o                             15" x 13.25" (381 mm x 336 mm)            13.25" (336 mm)
Blade at -60^o                             15" x   8" (381 mm x 203 mm)                   8" (203 mm)

Nominal 3º Cant                        14.5" x 20" (368 mm x 508 mm)              14.5" (368 mm)
Blade at  45^o                             14.5" x 13.5" (368 mm x 343 mm)           13.5" (343 mm)
Blade at  60^o                             14.5" x   8.75" (368 mm x 222 mm)           8.75" (222 mm)
Blade at -45^o                             14.5" x 12.75" (368 mm x 324 mm)         12.75" (324 mm)
Blade at -60^o                             14.5" x   7.75" (368 mm x 197 mm)          7.75" (197 mm)

Blade Drive:  5 HP electric with sensor less vector control for smooth acceleration and full torque.

Speed Range:  Infinitely variable: 60 to 400 FPM (18 to 122 m/min).  Blade speed can be automatically set when material is selected.

Tilting Column:  For miter cutting up to 60^o left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered, chain driven, with encoder feedback and MARVEL PC3 controller.

0° - 3° Canted Column:  Adjustable 0 or 3-degree forward approach angle, for notching, or increased efficiency in cutting of structural materials. Must specify if 0° or straight column set up is desired as the machines are by default shipped from the factory in 3° Canted Column.

Feed Force:  Direct Force Sensing Electric Ball Screw Feed which combines more consistent feed force with greater control, 0 - 300 lbs  (0-1335 N), column travels on re-circulating linear ball ways. Feed pressure can be automatically set when material is selected.

Jammed Blade Protection: Automatically senses resistance as the column returns and stops to prevent blade damage.

Blade:  16' (4877 mm) long x 1.25" (32 mm) wide, .042" (1.07 mm).  One Welded-Edge Band is furnished with each machine as part of standard Start-up supplies.

Blade Guides: Patent pending Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.

Blade Tension:  Hydraulically controlled, 35,000 psi. max. (241 MPa).  Machine equipped with automatic blade break / blade stall shut off switch.

Upper Blade Guide Arm:  Hydraulically positioned and locking, travels on linear guides, controlled through PC3 touch screen control.

Vises:  Hydraulic, half stroking with 6.7" (170 mm) high x 11.4" (290 mm) wide 60^o faceplates.  Optional variable vise pressure available.  (Option Code M9A).

Coolant System:  Built-in Flood system (Capacity of 26 gallons), available with Drop Lubrication system (requires compressed air connection)(Option Codes ML1 & ML2), including chip pan with chip removal ramp (optional Manual Chip Conveyor available).

Work-Rest Rollers:  One ball bearing roller on the entry side of the machine bed.

Flushing Hose:  Washes away chips from hard-to-get-at places reducing clean-up time.

Automatic Bar Feed: The Automatic Bar Feed design features a 48" stroke length with indexing speeds of up to 70 ft./min., and creep speeds of 33 in../min. The bar feed vise is electrically driven and combines precision double ball screws with preloaded re-circulating ball linear guides, resulting in positioning accuracy of +/- .005" per index.  The vise itself is hydraulically clamped to prevent material slippage.  Material can also be fed through the machine manually in both directions using the shuttle vise. Optional outboard and second machine vises are available (must specify right or left hand machine configuration at the time of order - Option Codes F3 & F4).

MARVEL PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 9" color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.  Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media.  Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage.

Standard Left-to-Right Work Entry: Opposite Hand or Right-to-Left work entry available (Modification M4A).

Motors:  Main Drive:  5 H.P. (3.75 kW), Vector Duty Induction Motor TENV
Coolant Pump:   1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump:  2 H.P. (1.5 kW), totally enclosed fan cooled, ball bearing, system pressure  800 psi  (5.5 MPa).

Controls: IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection. Power supply provides low voltage (24 volts DC) control to all push buttons at operator's control panel and machine lighting circuits. PLC control and drives mounted in moisture-tight compartment with vibration isolation mountings. Electrical Equipment conforms to National Electrical Code NFPA 79.  The Electrical Control Panel is U.L. Labeled.

Notice:   This quotation is based on the assumption that the end user's electrical power supply conforms to National Electrical Code NFPA No. 79-2012, section 4.3 at the machine terminals.  A copy of this section is available upon request.

Warning: Failure of the end user's electrical supply to conform to the above standard can hinder machine   performance and may require the addition of extra cost components not included with the standard machine. Repair and replacement of components damaged as a result of an inadequate power supply         are not covered by the manufacturer's warranty.

Standard Machine Color:  Machine Tool Gray

Start-up supplies included with each machine:
            Hydraulic Oil:  13 gallons (59 liters) in machine.
Cutting Fluid:  2 gallons (8 liters) soluble oil.
Bandsaw Blades:  One (1) Welded-Edge Blade.

Manufacturer's Technical Data:  Electronic documentation (CD) consisting of parts list, operating and maintenance instructions, installation plan, wiring, elementary electric and hydraulic diagrams, and electrical and hydraulic component list.  One paper copy of electrical and hydraulic schematics will be supplied with machine.

Machine Weight - 5,900 lbs.

Maximum Weight Capacity = 500 lbs./foot, up to a maximum of 7,000 lbs and 1,200 lbs evenly distributed on the machine table. Table height is 40".

Voltage Requirements:  Indicate the required voltage.
208  volt, 3 phase, 60 cycle (EK 1) by optional extra cost transformer ($1,650.00 additional)
230  volt, 3 phase, 60 cycle (EK 2)
460  volt, 3 phase, 60 cycle (EK 3)
575  volt, 3 phase, 60 cycle (EK 4) by optional extra cost transformer ($1,605.00 additional)

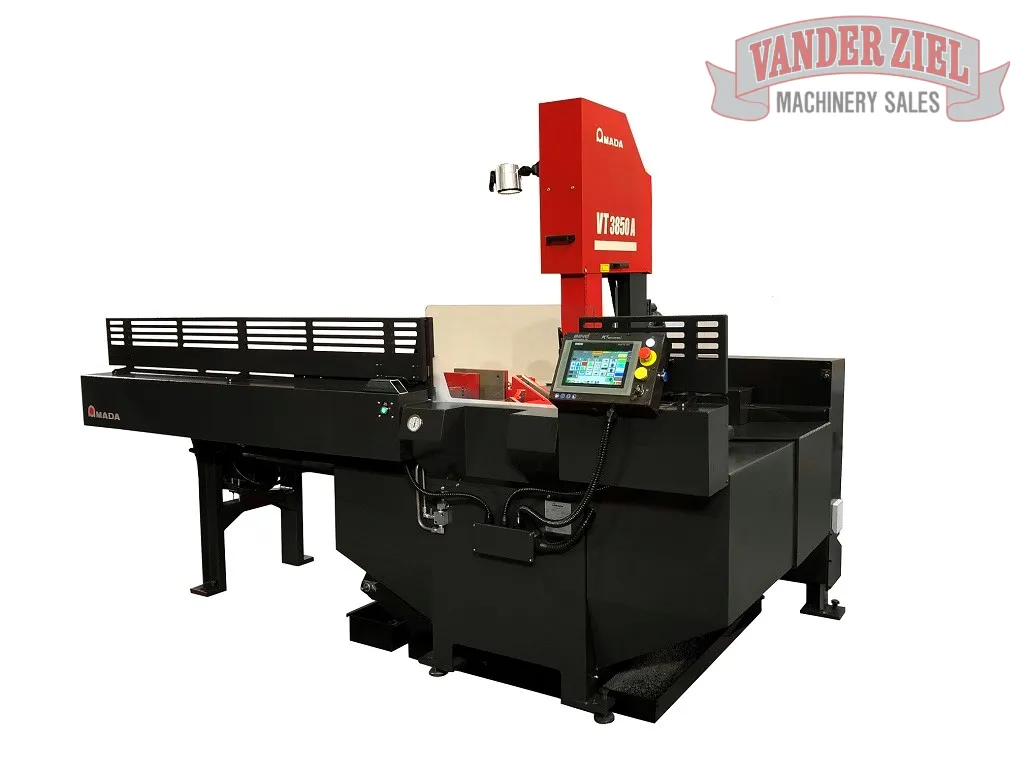

**Two Paint options are available, extra charges are possible**
