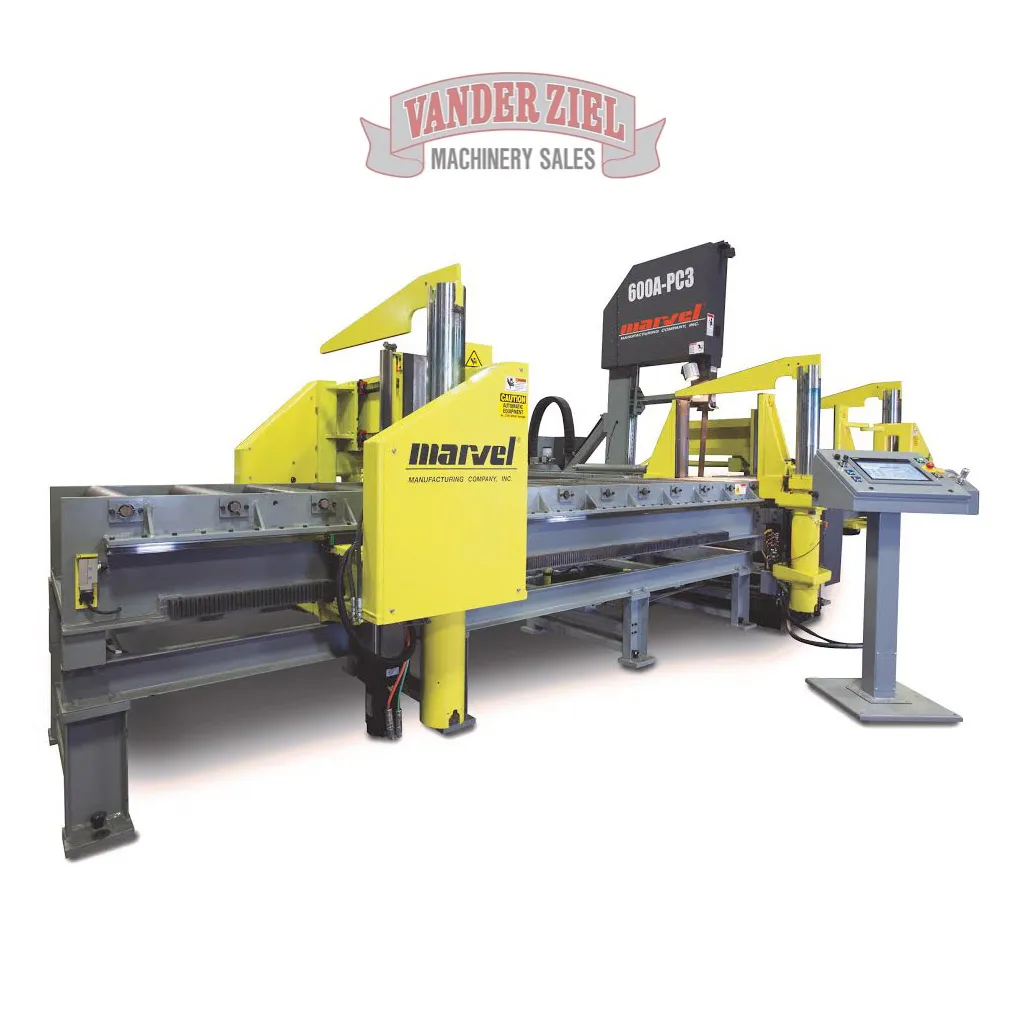

Marvel Series 600A-PC3.1S Automatic Indexing Vertical Tilt-Frame Saw, 24" x 24" Capacity - NEW

Marvel Series 600A-PC3.1S Automatic Indexing Vertical Tilt-Frame Saw, 24" x 24" Capacity - NEW

SKU#2321010

Capacity                                               Rectangles                                                       Rounds
Nominal                                                24" x 24" (610 mm x 610 mm)                24" (610 mm)

Blade Drive: Electric with sensorless vector control for smooth acceleration and full torque.

Speed Range:  Infinitely variable: 500 FPM (9 to 152 m/min), 10 HP Standard. Blade speed can be automatically set when material is selected.

3° Canted Column: Standard 3-degree forward approach angle for increased efficiency in cutting of structural materials.

Feed Force: Direct Force Sensing Electric Ball Screw Feed 0 - 350 lbs. (1560 N); column travels on recirculating linear ball ways. Feed pressure can be automatically set when material is selected.

Blade: 20' 2" (6147 mm) long x 2" (51 mm) wide, .063" (1.6 mm).  (One Welded-Edge Band is furnished with each machine as part of standard start-up supplies).

Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.

Blade Tension: Hydraulically controlled, 35,000 psi. max. (240 MPa).  Machine equipped with automatic blade break/blade stall shut-off switch.

Upper Blade Guide Arm: Hydraulically positioned and locking, controlled through the operator's touch screen.

 Vises: Hydraulic, full stroking with 24" (610mm) high x 7" (180mm) wide faceplates.  Variable vise pressure comes standard with machine. Includes full capacity Hydraulic hold-down (Nesting Clamp) mounted next to the in-feed machine vise for vertical clamping of structural shapes or multiple bar work.

Coolant System: Built-in with Flood and Automatic Mist Lubrication system (requires compressed air connection), including chip pan with manual hand crank type chip conveyor. (optional power Chip Conveyor M8 is available).

Flushing Hose: Washes away chips from hard-to-get-at places reducing clean-up time.

Automatic Bar Feed: The Automatic Bar Feed design features a 120" (3048mm) stroke length with indexing speeds of up to 55 ft/min. The bar feed vise is servo driven with encoder feedback, and combines heavy duty rack and gear drive with preloaded recirculating linear guides. The vise itself is hydraulically clamped to prevent material slippage.  Optional second machine vise and/or Hold down is available (must specify right or left hand machine configuration at the time of order - Option Codes F8 & F4). Optional Remnant reducer is available, See option code PS4 Weight Capacity: 750lbs/ft (1,118kg/m). Total Capacity: 7,500 lbs (3,400kg).

MARVEL PC3.1 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with an 8" color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.  Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media.  Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage.

Material can also be fed through the machine manually in both directions using the hydraulic shuttle vise.  Blade can be stopped with all other power functions operative.

Standard Left-to-Right Work Entry:  Opposite Hand - RIGHT-TO-LEFT work entry available (Modification M4A).

Table Height: 40"

Motors:  Main Drive: 10 H.P., 1800 RPM, totally enclosed, fan cooled, ball bearing.
Coolant Pump: 1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump: 5 H.P. (3.7 kW), 1800 RPM, totally enclosed fan cooled, ball bearing, system pressure 900 psi (6.2 MPa).

Controls:  IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection.  Power supply provides low voltage (24 volts DC) control to all push buttons at operator's control panel and machine lighting circuits.  PLC control and drives mounted in vented compartment with vibration isolation mountings.  Electrical Equipment conforms to NFPA 79-2015.  The Electrical Control Panel is UL 508A listed.

Notice: This quotation is based on the assumption that the end user's electrical power supply conforms to NFPA 79-2015, section 4.3 at the machine terminals.  A copy of this section is available upon request.

Warning: Failure of the end user's electrical supply to conform to the above standard can hinder machine performance and may require the addition of extra cost components not included with the standard machine.  Repair and replacement of components damaged as a result of an inadequate power supply are not covered by the manufacturer's warranty.

Standard Machine Color:  Machine Tool Gray

Start-up Supplies included with each machine:
Hydraulic Oil: 10 gallons (38 liters) in machine.
Cutting Fluid: 2 gallons (8 liters) soluble oil.
Bandsaw Blades: One (1)  Welded-Edge Blade.

Manufacturer's Technical Data: Two (2) sets consisting of parts list, operating and maintenance instructions, installation plan, wiring, elementary electric and hydraulic diagrams, and electrical and hydraulic component list.

Shipping Weight 6,850 lbs. (2,880 kg)

Voltage Requirements:  Indicate the required voltage.
460 volt, 3 phase, 60 cycle (EK 3) Standard Voltage
208,230 and 575 transformed to 460 volt by a 45 kva transformer.
