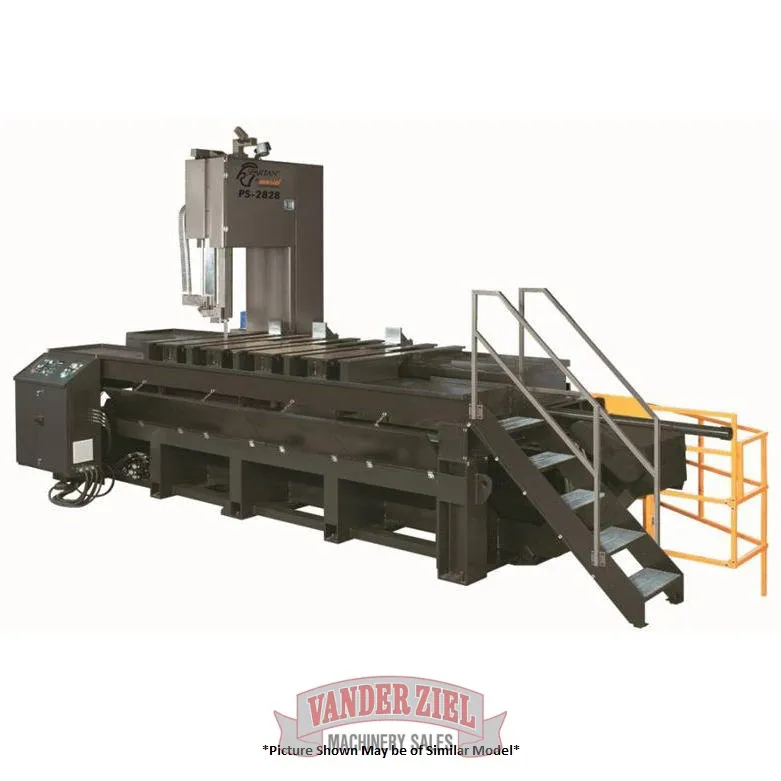

Mavel Spartan 27.5" x 27.5" Vertical Plate Saw, Model PS 2828/5/8 - NEW

Mavel Spartan 27.5" x 27.5" Vertical Plate Saw, Model PS 2828/5/8 - NEW

SKU #  2322004

SPARTAN MODEL PS-2828/5 VERTICAL MOVING HEAD PLATE SAW WITH 2 INCH BLADE

Capacity:  27.5" (700 mm) Height x 27.5" (700 mm) Width x 59" (1.5 meters) Length

Blade: 2" (54mm) x .063" (1.3 mm) x 22' 3.75" (6800 mm)

Blade Guides: Hydraulically clamped carbide blade guides with hydraulic controlled upper blade guide arm.

Saw Head: Movement via hydraulic cylinder on ground square ways.

Support Table Width:  Inner Table        27.5" (700 mm)
Outer Table       27.5" (700 mm)

Speed Range: 50-250 fpm (15-75 m/min.) inverter controlled, infinitely variable, driven by heavy-duty worm gear transmission.

Feed Rate:  .080-20"/m (2-500 mm/min.)

Motors:            Blade Drive                   7.5   H.P. (5.5 KW)
Hydraulic Pump              2      H.P. (1.5 KW)
Coolant Pump                1      H.P. (0.7 KW)

Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.

Table Height:  63" (1600 mm)

Overall Dimensions:  21' 0" (6400 mm) Long x 8' 4" (2550 mm) Wide, with 5' table.
23' 0" (7000 mm) Long x 8' 4" (2550 mm) Wide, with 8' table

Machine Height:  12' 1.67" (3700 mm)

Machine Weight:  Approximately 19,800 lbs. (9,000 kg) 5' model, 25,300 lbs. (11,500 kg.) 8' model.

STANDARD FEATURES

• Space Saving Moveable Saw Head


• Saw Head Travels on Ground Square Ways


• Built In Positioning Scales on Inner Table


• Hydraulically Positioned Guide Arm


• Hydraulic Blade Tension


• Hydraulic Movement of Saw Head


• Rapid Approach and Return of Saw Head


• Motion Detector for Blade Breakage or Stalling


• Hydraulic Blade Feed with Compensation Valve


• Work Light


• Hydraulically Clamped Tungsten Carbide Blade Guides


• Powered Chip Brush


• Independent Control Panel


• Inverter Controlled Blade Speeds


• Flushing Hose

Priced with a 59" Table, Available with a 98" Table
