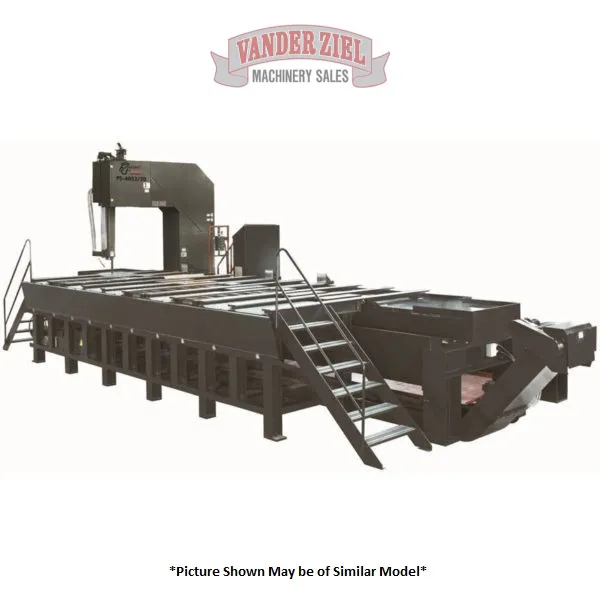

Marvel Spartan 40" x 51.125" Vertical Plate Saw, Model PS 4052/10/15/20 - NEW

SKU # 2322006

SPARTAN MODEL PS-4052/10 VERTICAL MOVING HEAD PLATE SAW WITH 2-5/8 INCH BLADE

Capacity:  40" (1000 mm) Height x 51.125" (1300 mm) Width x 118" (3 meters) Length

Blade:  27' 2.75" (8300 mm) x 2.125" (67 mm) x .063 (1.6 mm)

Support Table Width:  Inner Table        51.125" (1300 mm)

Outer Table              63" (1600 mm)

 Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.

 Feed Rate:  .040-12"/m (1-300 mm/min.)

 Motors:            Blade Drive                   10 H.P.
Feed Drive                    2 H.P.
Hydraulic Pump             3 H.P.
Coolant Pump                1 H.P.

Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.

Table Height:  59" (1500 mm)

Overall Dimensions:  32' 7" (10,000 mm) Long x 14' 9.125" (4500 mm) Wide, with 20' table.

Machine Height:  14' 8" (4500 mm)

Machine Weight:  Approximately 35,200 lbs. (16,000 kg) (20' model)

STANDARD FEATURES

• Space Saving Moveable Saw Head


• Precision Linear Ways


• Hydraulically Positioned Saw Guide Arm


• Hydraulic Blade Tension


• AC Servo Feed


• Programmable Feed and Blade Speed Settings


• Rapid Approach and Return of Saw Head


• Motion Detector


• Automatic Feed Adjustment


• On-Screen Self Diagnostics


• Out-of-Square Detector


• Powered Chip Brush

Priced with a 118" Table, available with a 177" or 236" Table.
