National 3' x 16 GA Box and Pan Hand Brake, Model U3616 - NEW
National 3' x 16 GA Box and Pan Hand Brake, Model U3616 - NEW
SKU #2502000
Specifications:
| Model | U3616 | Stand |
| Capacity(Yield Strength 30,000 lbs. @ rated capacity) | Mild Steel 16 Gauge1.6mmStainless 20 Gauge.9mm | |
| Maximum Lift of Beam | 1 1/4"/32mm | |
| Finger Width | 2" 3" 4"51mm 76mm 102mm | |
| Maximum Depth of Box | 4"/102mm | |
| Bending Length | 36 1/4" | |
| Shipping Weight | 500lbs/227kgs1689 x 965 x 1372mm | 100lbs/45kgs |
| Floor Space | 54"x19"x271/4"1372x483x692mm |

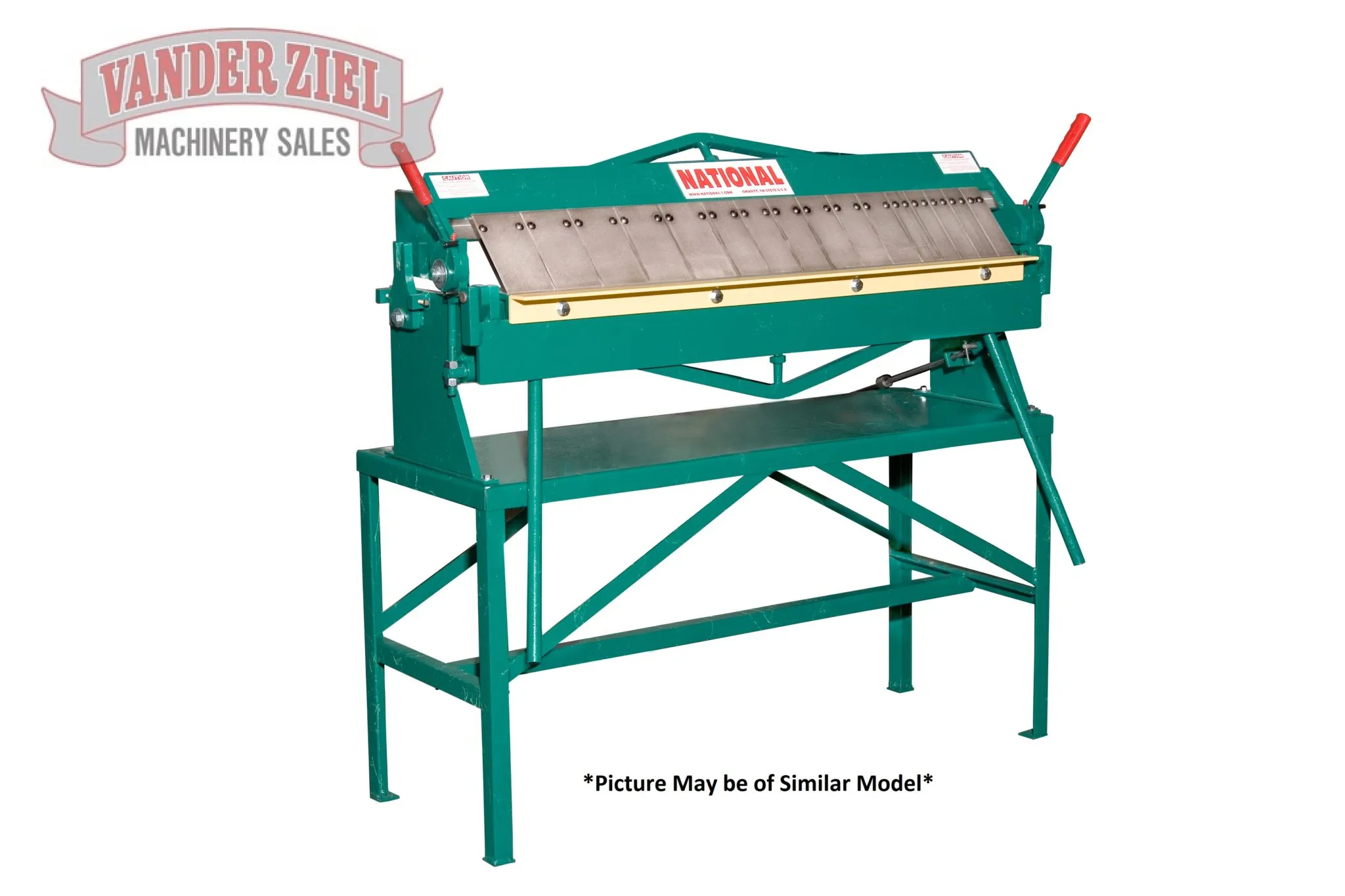

** Shown with Optional Stand**
REF: 000148
