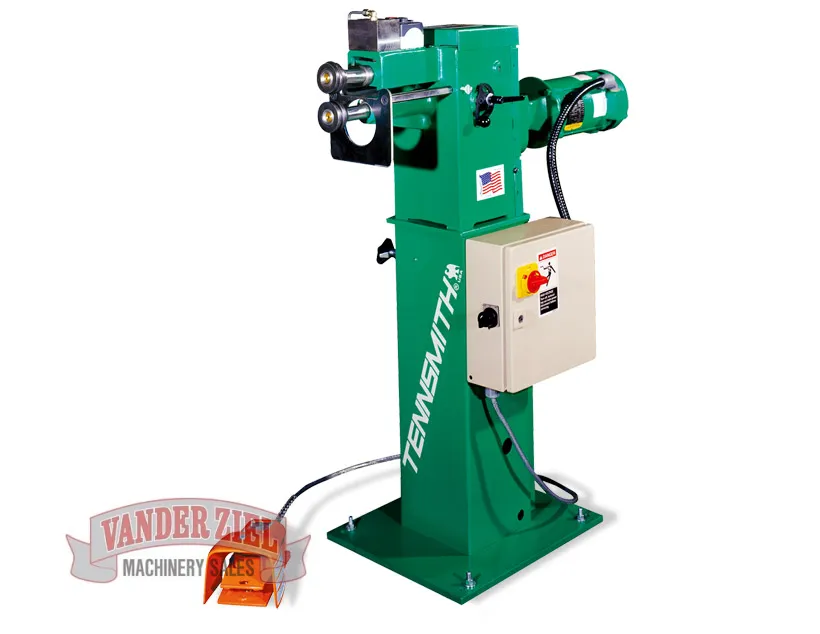

Tennsmith 16 GA Powered Rotary Bending Machine, Model PR16 - NEW
Tennsmith 16 GA Powered Rotary Bending Machine, Model PR16 - NEW
SKU # 2624007
Specifications:
The PR-16 power rotary is a versatile machine capable of forming numerous applications up to 16-gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stand.
A 3/4-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit; an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit.
Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available.
Please contact TENNSMITH for special application forming.
| Roll Chart PR16 | |||
| Roll Diagram | Type | ||
| Elbow Edging | |||
| Flange | |||
| Flattening | |||
| Offset | |||
| Turning | |||
| Burring | |||
| Wiring | |||
| Crimping | |||
| Ogee Beading | |||
| Single Beading | |||
| Power Rotary Machine | PR16 |
| Capacity, mild steel | 16 gauge/1.6 mm |
| Capacity, stainless steel | 20 gauge/1.0 mm |
| Throat | 10 in./254 mm |
| Distance, shaft center to center | 2.5 in./63.5 mm |
| Gear ratio | 3 : 1 |
| Working speed variable | 3 to 45 rpm |
| Motor | 3/4 hp, 1PH |
| Shipping weight | 350 Ibs./159 kg |
REF: 000102
