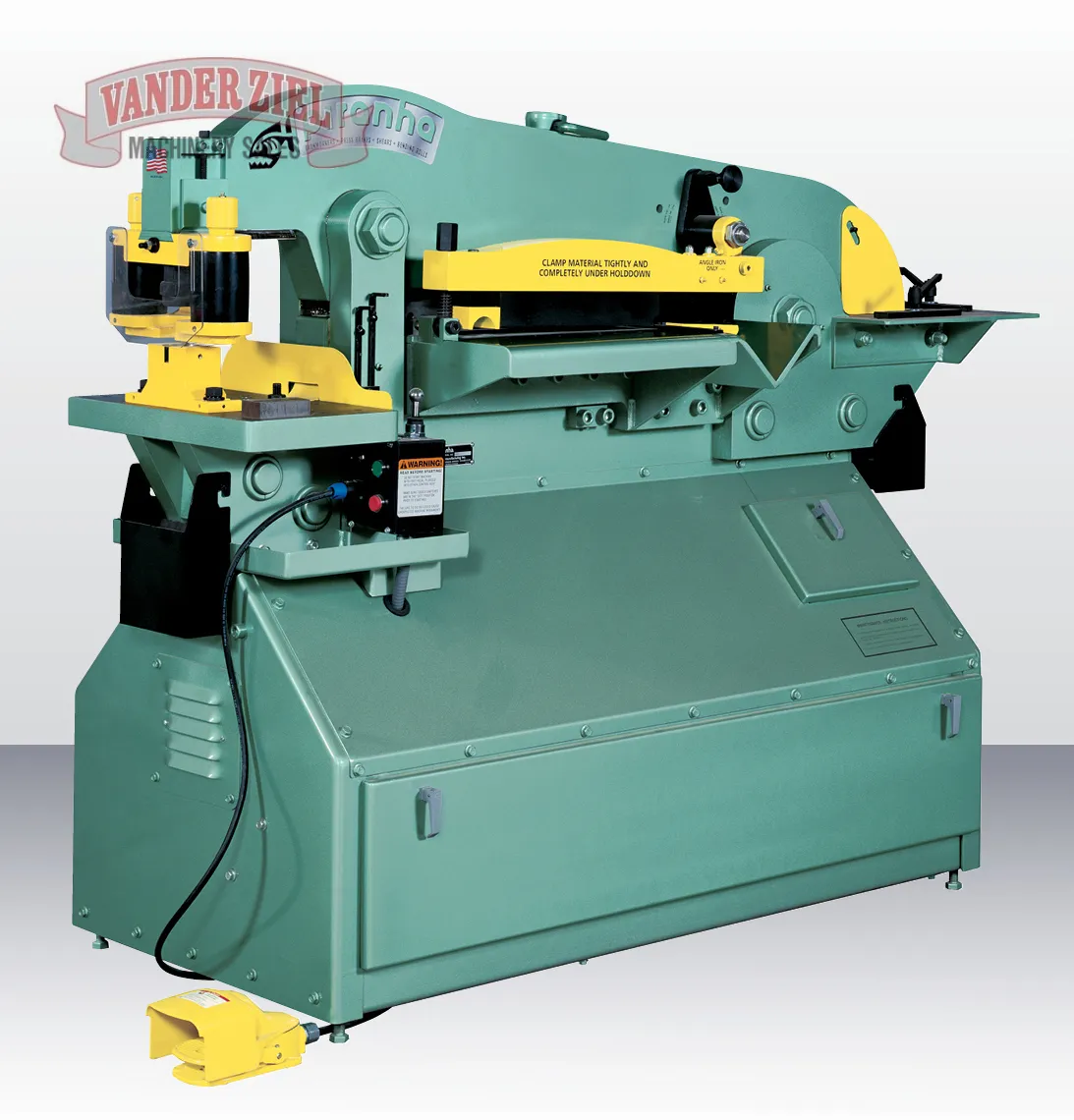

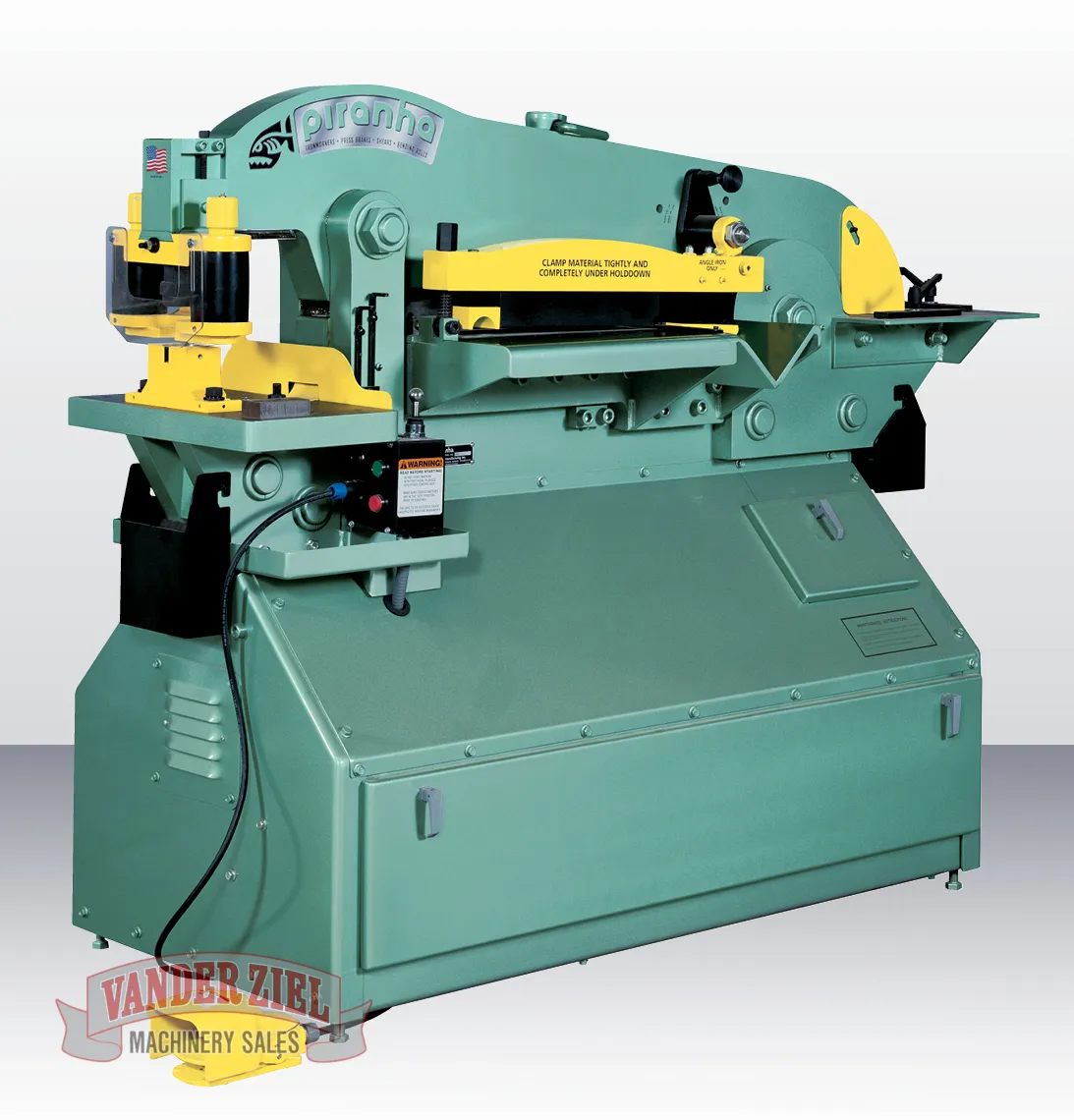

Piranha 110 Ton Ironworker, Model P-110 - NEW
Piranha 110 Ton Ironworker, Model P-110 - NEW
SKU# 2710004
Specifications:
| Throat Depth | 12" | Coper-Notcher (Tons)(Max.) | 954" x 6" x 3/8" |
| Open Height | 15-1/2" | Bending Attachment(Optional) | 12", 24" |
| Closed Heightw/o Die Block | 10-1/4" | Punch End - Strokes Per MinuteOptional Speed-Up Kit | 30 @ 3/4"41 @ 3/4" |
| Stroke Length | 5-1/4" | Work Station HeightApprox. | 44" |
| Platen Table Size (D-W) | 14-1/2" x 21" | HydraulicsPump GPMSystem R/V PSI | 10.53200 |
| PunchHole Size (Max. Material)Max. Hole Size (Material) | 110 Tons1-7/16" (1")5" (1/4") | Fluid Capacity (gal.) | 25 |
| Plate Shear | 20-1/2" Long1" x 12"3/4" x 18"1/2" x 20" | Motor Std. 230/460 3 Ph.1800 RPMOpt Phase & Voltage Available | 10 HP 3 Ph. |
| Angle Shear | 6" x 6" x 5/8" | Dimensions (Net)W-L-H Approx. | 35" x 90" x 66-1/2" |
| Bar ShearRound (min. to max.)Square (min. to max.) | 1/2" to 2"1/2" to 1-3/8" | Weight (Net)Lbs. Approx. | 5800 |
REF: 000012
