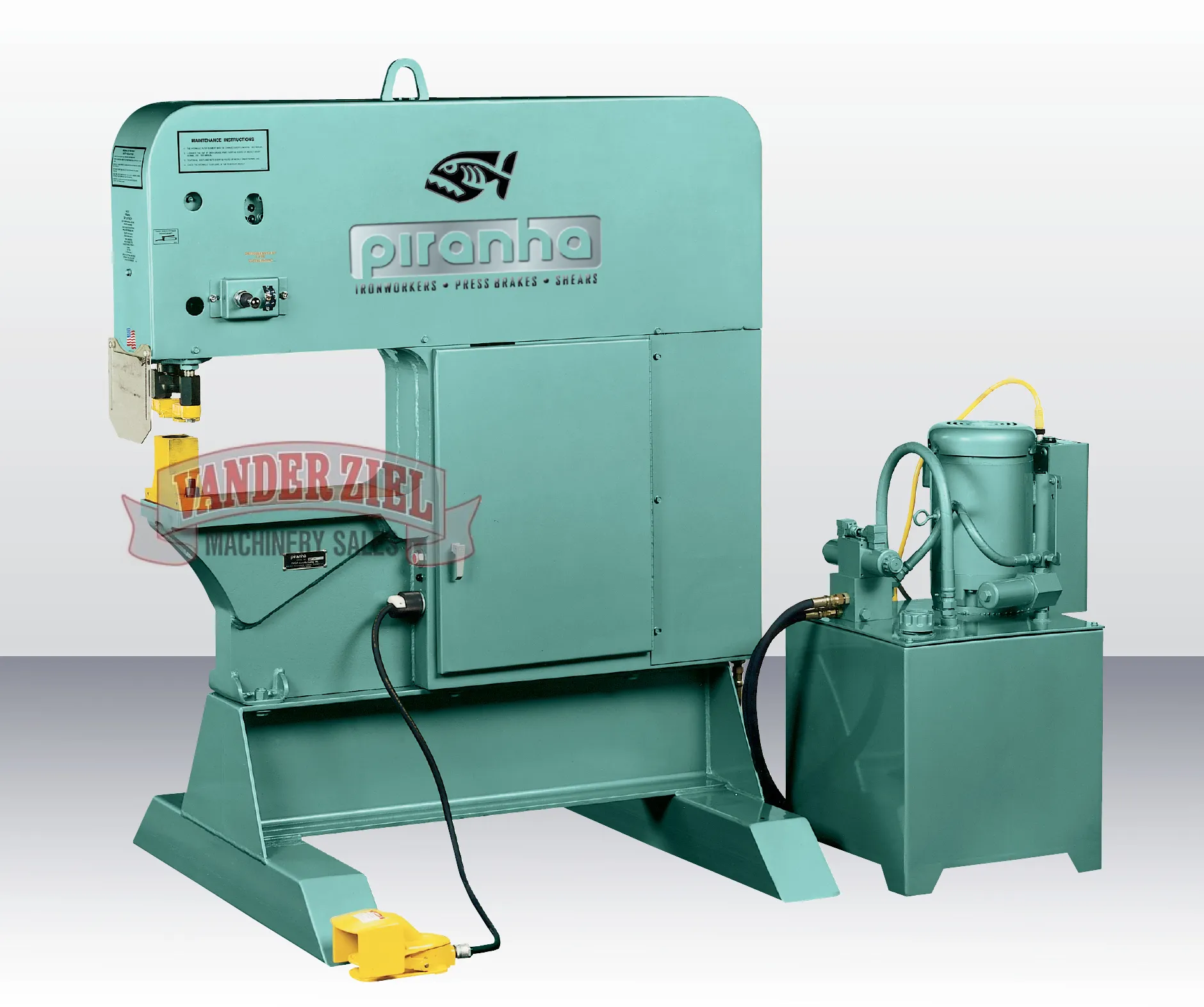

Piranha 120 Ton Single End Punch Press, Model SEP-120

Piranha 120 Ton Single End Punch Press, Model SEP-120
SKU# 2726001
Specifications:
| Throat Depth | 21.5" | Coper-Notcher (Tons)(Max.) | N/A |
| Open Height | 12-1/4" | Bending Attach. (Optional) | 18" |
| Closed Heightw/o Die Block | 10-1/4" | Punch EndStrokes Per Minute | 16 @ 1" |
| Stroke Length | 2" | Work Station HeightApprox. | 42" |
| Platen Table Size (D-W) | 20" x 10" | HydraulicsPump GPMSystem R/V PSI | 10.52850 |
| PunchHole Size (Max. Material)Max. Hole Size (Material) | 120 Tons1-1/2" (1")5" (1/4") | Fluid Capacity (gal.) | 30 |
| Plate Shear | N/A | Motor Std. 230/460 3 Ph.1800 RPMOpt Phase & Voltage Available | 10 HP 3 Ph. |
| Angle Shear | N/A | Dimensions (Net)W-L-H Approx. | 48" x 60" x 72" |
| Bar ShearRound (min. to max.)Square (min. to max.) | N/A | Weight (Net)Lbs. Approx. | 4100 |
REF: 000016
