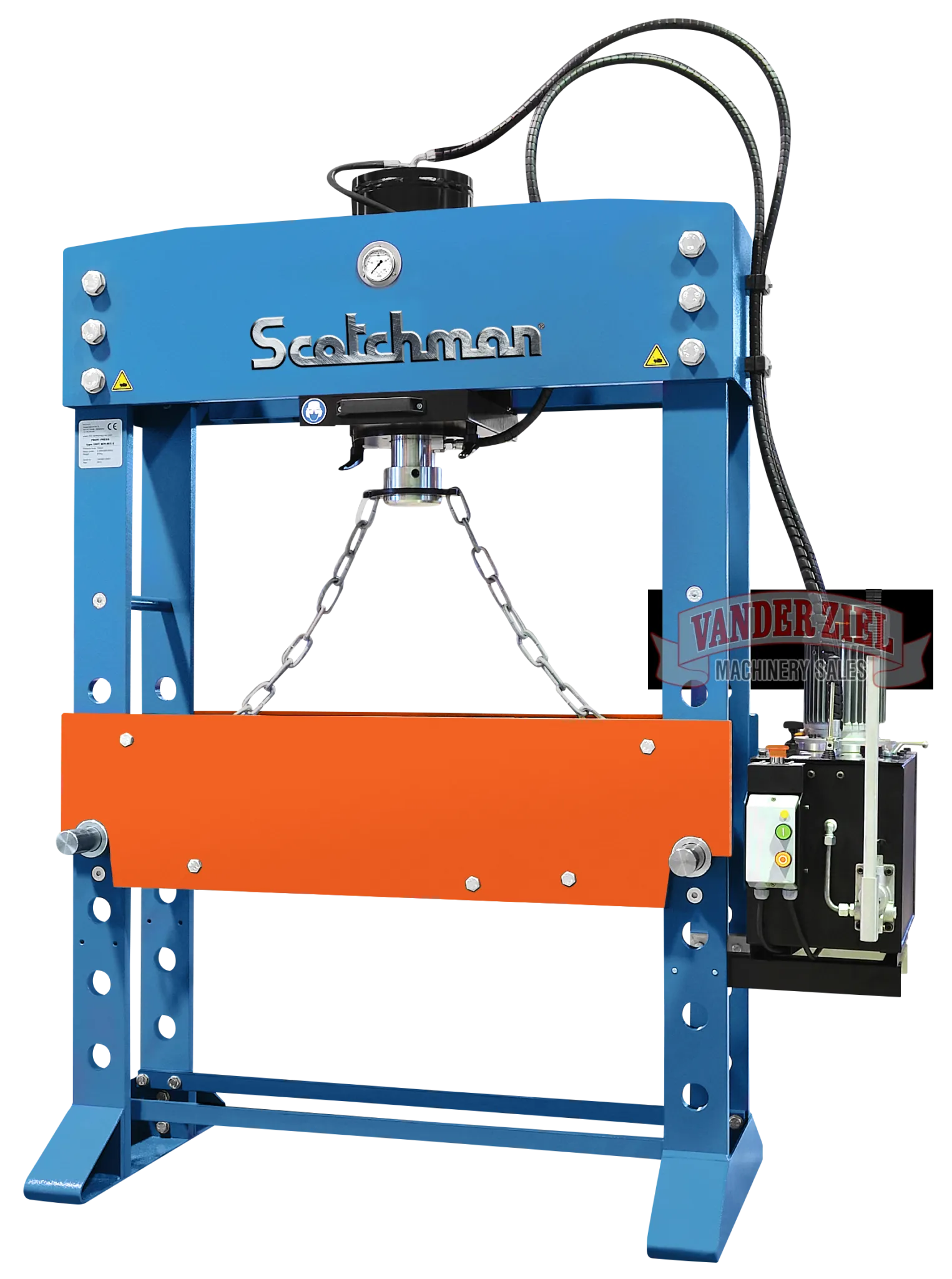

Scotchman 110 Ton Hydraulic H-Frame Press, Model ProPress 110

Scotchman 110 Ton Hydraulic H-Frame Press, Model ProPress 110

SKU # 3014001

Specifications:
Capacity 100 Tons
Motor 3 HP
RPM 3000
Ram Speed - Approach 17 ipm
Ram Speed - Press 5 ipm
Ram Speed - Return 21 ipm
Open Height, Minimum 7"
Open Height, Maximum 36"
Stroke 15"
Lateral Ram Slide Yes
Width Between Uprights 43 1/4"
Width Between Table Channels 11 3/4"
Footprint 65 1/2" x 34"
Overall Height 84 1/4"
Weight 2,344 lbs.

Preliminary Specifications - Subject to Verification
