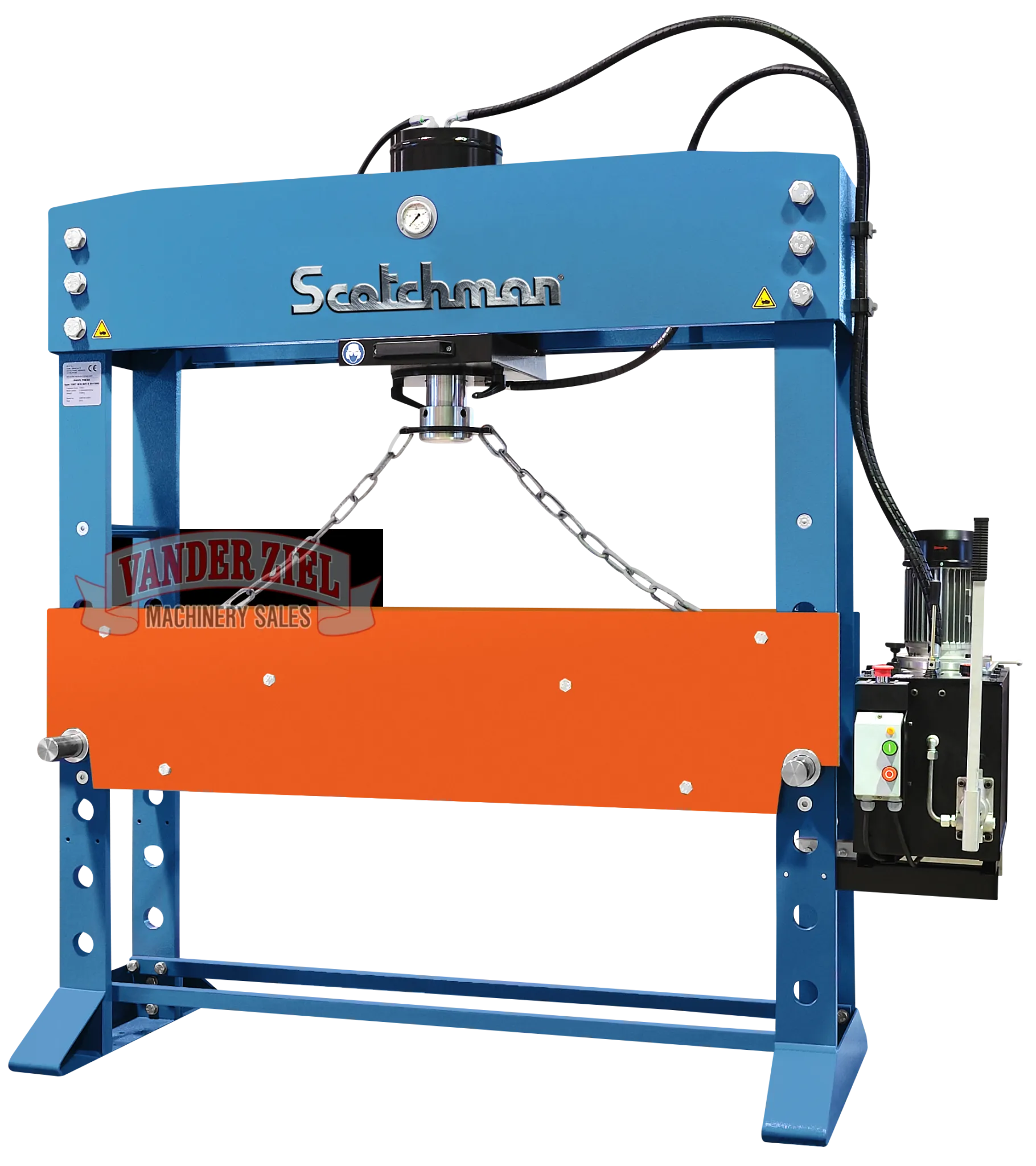

Scotchman 110 Ton Hydraulic Wide H-Frame Press, Model ProPress 110W

Scotchman 110 Ton Hydraulic Wide H-Frame Press, Model ProPress 110W

SKU # 3014002

Specifications:
Capacity 100 Tons
Motor 3 HP
RPM 3000
Ram Speed - Approach 17 ipm
Ram Speed - Press 5 ipm
Ram Speed - Return 21 ipm
Open Height, Minimum 5"
Open Height, Maximum 34 3/4"
Stroke 15"
Lateral Ram Slide Yes
Width Between Uprights 59"
Width Between Table Channels 11 3/4"
Footprint 81 1/4" x 34"
Overall Height 82"
Weight 3,451 lbs.

Preliminary Specifications - Subject to Verification
