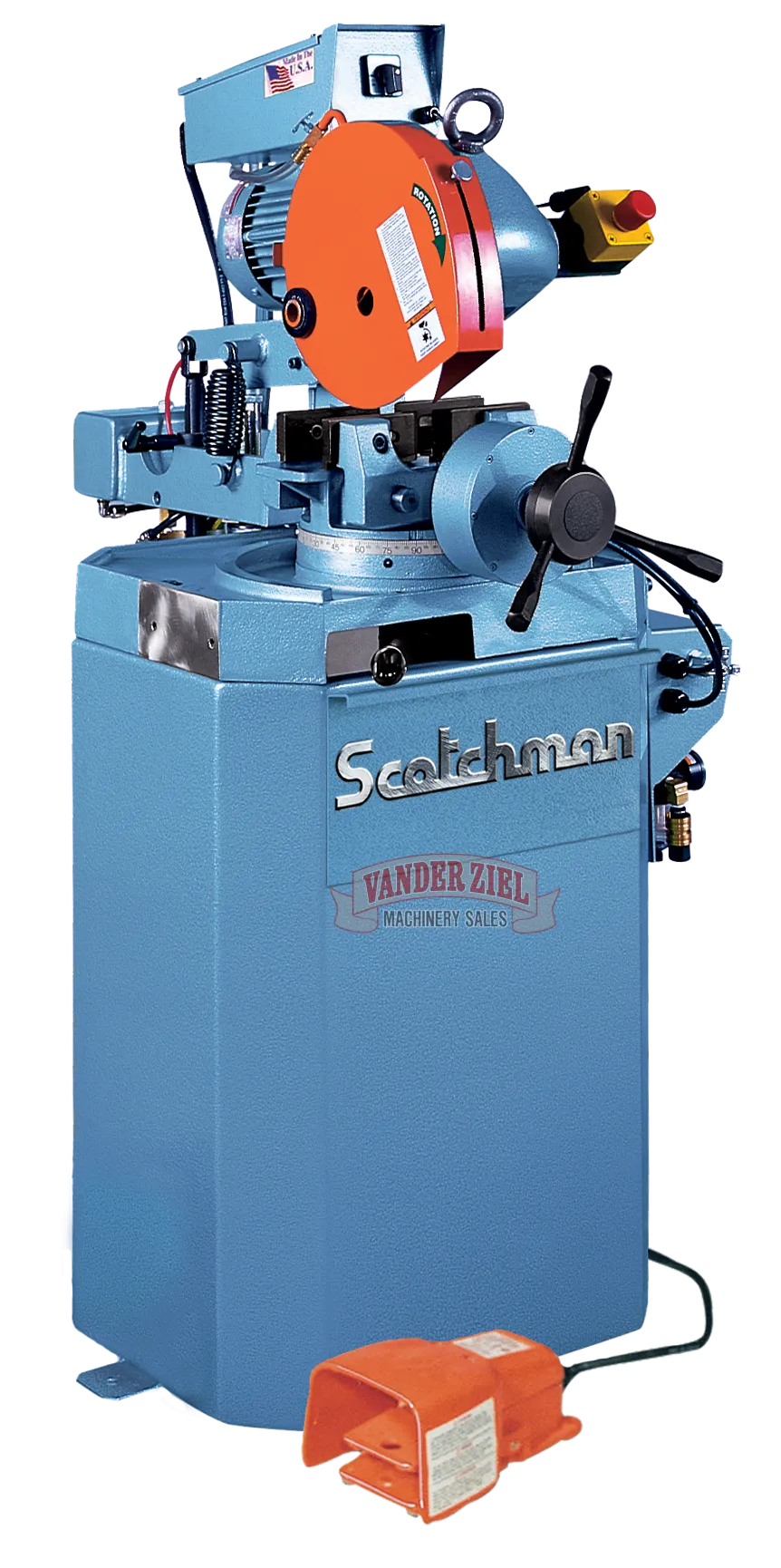

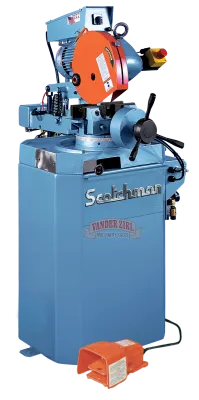

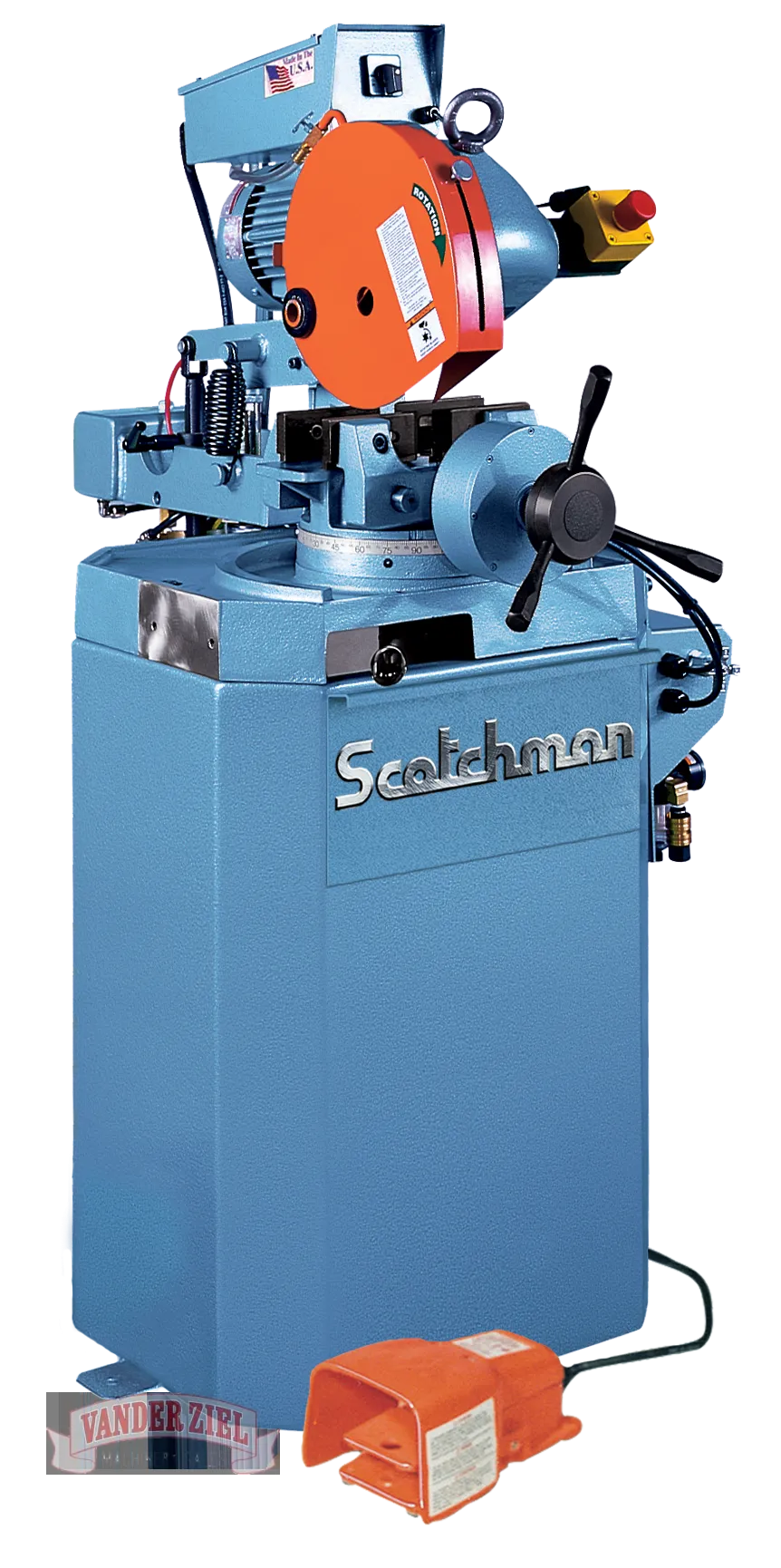

Scotchman 10" Cold Saw with Power Downfeed, Power Vise, Model CPO 275 PKPD - NEW
Scotchman 10" Cold Saw with Power Downfeed, Power Vise, Model CPO 275 PKPD - NEW
SKU # 3019003
Specifications:
| Cutting Speeds | Must Specify when Ordering |
| LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe | LT (Low Turn)30 rpm / 60 rpm |
| HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material | HT (High Turn)60 rpm / 120 rpm |
| SS(Single Speed) designed for 220v 1ph applications | SS (Single Speed)60 rpm |
| TUBINGRoundSquareRectangleSOLIDRoundSquare | 90 Deg3-3/8" (86 mm)3" x 3" (76 x 76 mm)3" x 2-3/8" (76 x 60 mm)90 Deg1-1/2"(38 mm)1-1/2" x 1-1/2" (38 x 38 mm) |
| Factory Wired | Specify208 3 ph230 3 ph460 3 ph575 volt 3 ph 60 hz220 1 ph (SS Model Only) |
| Maximum Diameter Blade | 10-3/4" |
| Arbor Bore | 1-1/4" |
| Pin Spacing | 2/8/45 |
| Width | 21-7/8" |
| Depth | 43-1/2" |
| Height not including handle | 53-1/4" |
| Height from floor to vise | 36-1/8" |
| Shipping Weight | 670 lbs. |
REF: 000032
