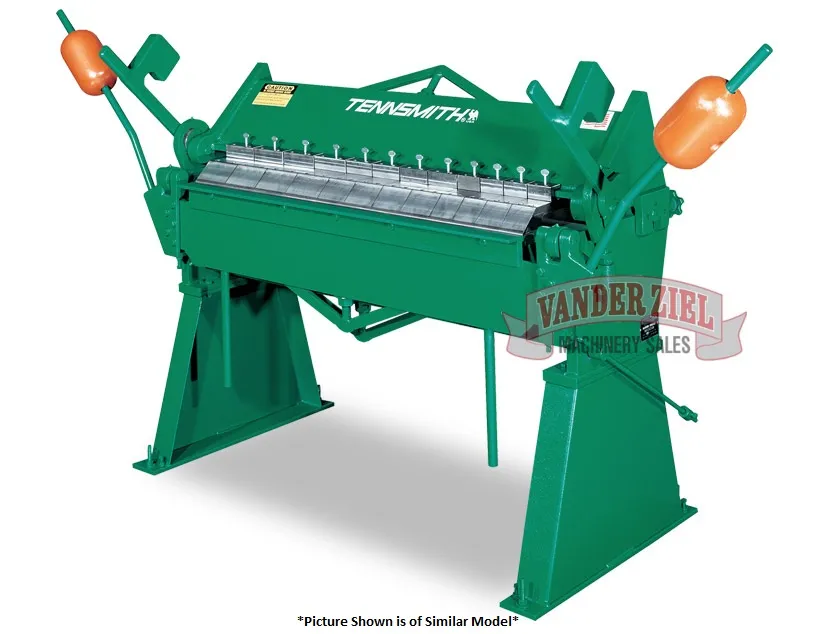

Tennsmith 10' x 14 GA Box & Pan Brake, Model F6-120-14 - NEW

Tennsmith 10' x 14 GA Box & Pan Brake, Model F6-120-14 - NEW
SKU # 3602018
Specifications:
TENNSMITH's F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for a quick-setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Other adjustment features include:
- Leveling screws and lock nuts on the pedestals
- Jack screws and tensioner bolts on the apron
- Truss rods on the apron, base and upper beam
- Fully adjustable counter balances to facilitate the
bending process - Removable apron angle and insert permit 1/4-inch
reverse bends in lighter material
| Box & Pan Hand Brakes | F6-120-14 |
| Capacity, mild steel | 14 gauge/2.0 mm |
| Capacity, stainless steel | 18 gauge/1.0 mm |
| Bending length | 120 in./3048 mm |
| Maximum Iift of beam | 2-1/4 in./57 mm |
| Front to rear beam adjustment | 1/2 in./12.7 mm |
| Maximum depth of box | 6 in./152.4 mm |
| Minimum reverse bend | 1/4 in./6 mm |
| Minimum flange in capacity material | 1 in./25 mm |
| Finger widths | 3, 4 and 5 in.76.3, 101.6 and 127 mm |
| Dimensions, counterweights in place, LxWxH | 161 x 53 x 60 in.4090 x 1347 x 1524 mm |
| Shipping weight | 3675 Ibs./1670 kg |
Available options: Radius fingers; extension fingers (right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc.); open end fingers (provide triangular, square and rectangular tube forming abilities). Ask dealer for more details.
REF: 000089
