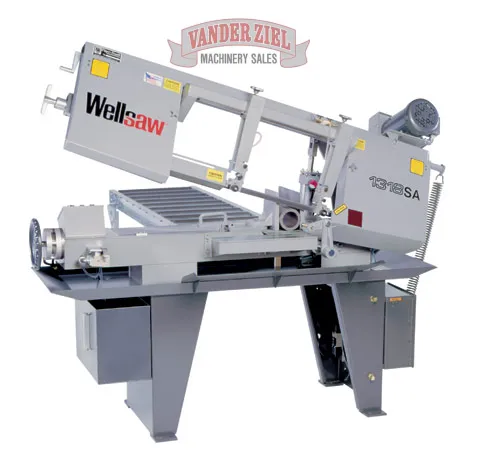

Wellsaw 13" x 18" Semi-Automatic Horizontal Saw, Model 1318-SA - NEW

Wellsaw 13" x 18" Semi-Automatic Horizontal Saw, Model 1318-SA - NEW

SKU#3920006

Specifications
Capacity Round 13"
Rectangular 13" x 18"
45° Angle 11" x 9-1/2"
Blade Size 1" x .035" x 12'6" (150")
Blade Speeds Infi nitely Variable
70-375 SFPM
Blade Guides Carbide Guides with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
208-230-460/60/3
Coolant System Tank Capacity 8 Gallons
Submersible Pump/3 GPM
Vise Control Quick Acting/Manual Screw
Swivel Vise To 45°
Feed Control Variable Hydraulic/
Counterbalance Spring
Band Wheels 15" Diameter Cast Iron
Bed Height 35"
Floor Area 40"W x 84"L
Shipping Weight 955 Lbs.

Standard Features
PLC Controlled, Full Cycle Semi-Automatic Operation
Variable Hydraulic Feed Rate Control
Spring-Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Perimeter Ring Gear
Blade Drive
Baldor® Motor
3hp Motor 3 Phase TEFC
2hp Single Phase ODP
Infi nitely Variable Blade Speeds
Rite-Tension® Blade Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise/Air Powered
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
