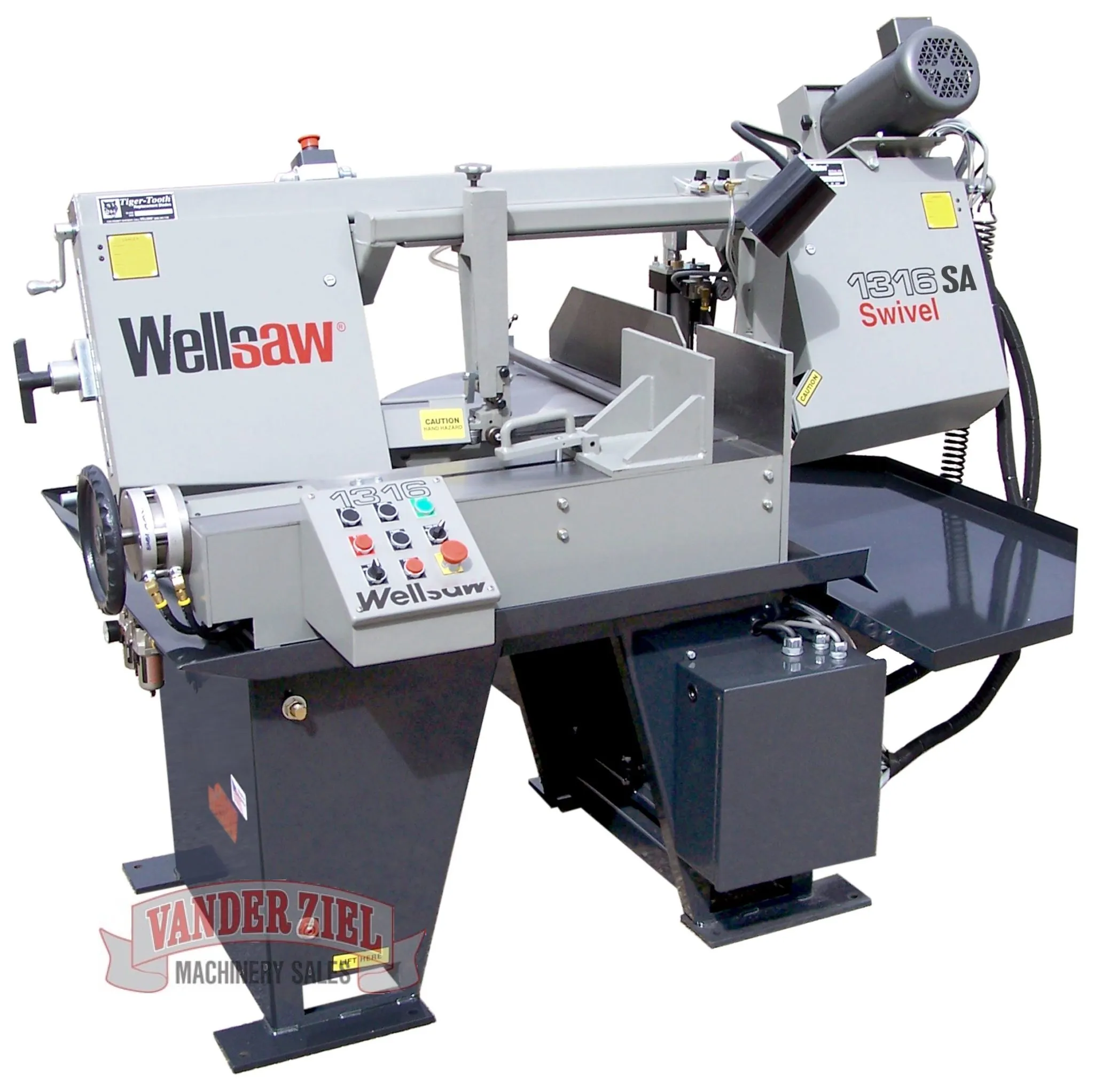

Wellsaw 13" x 16" Horizontal Semi-Automtic Saw, Model 1316S-SA - NEW

Wellsaw 13" x 16" Horizontal Semi-Automtic Saw, Model 1316S-SA - NEW
SKU#3920011
Specifications
Capacity Round | Rectangular
@ 0° (90°) 13" | 13"H x 16"W
@ 45° 11-1/2" | 13"H x 11-1/2"W
@ 60° 8" | 8-1/2"H x 8"W
Blade Size 1" x .035" x 12'6" (150")
Blade Speeds Infinitely Variable 70-375 SFPM
Blade Guides Carbide Guides with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
208-230-460/60/3
Coolant System Tank Capacity 8 Gallons
Submersible Pump 115V/.6 Amp/3 GPM
Vise Control Air Cylinder/Quick Position
Feed Rate Control Variable Hydraulic/
Counterbalance Spring
Band Wheels 15" Diameter Cast Iron
Stock Stop Projection 25"
Bed Height 35"
Floor Area 90"W x 76"L
Shipping Weight 1800 Lbs
Standard Features
PLC Controlled, Full Cycle Semi-Automatic
Saw Head Swivels on Precision Ball Bearings
Miter to 60° - No Need to Swivel the Stock
Large Protractor for Accurate Angle Selection
5' x 18" Infeed Roller Conveyor
Work Light with Transformer
Variable Hydraulic Feed Rate Control
Spring-Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Perimeter Ring Gear Blade Drive
Baldor® Motor
3hp Motor 3 Phase TEFC
2hp Single Phase ODP
Infi nitely Variable Blade Speeds
Wet Cutting System with Full Surround Pan
Rite-Tension® Blade Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Magnetic Starter with Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise/Air Powered
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
