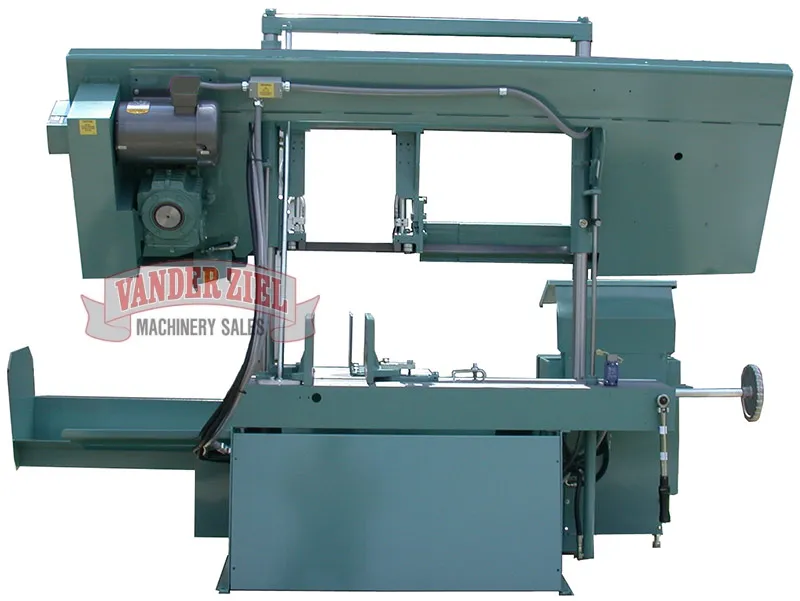

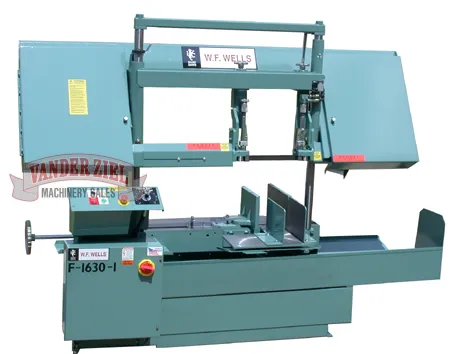

W.F. Wells 16" x 30" Semi-Automatic Horizontal Saw, Model F-1630-1 - NEW

W.F. Wells 16" x 30" Semi-Automatic Horizontal Saw, Model F-1630-1 - NEW

SKU#4020005

Machine Specifications

Capacity: Rectangular at 90° 16" High x 30" Wide, Round at 90° 16" Diameter
Rectangular at 45° 16" High X 13" Wide, Round at 45° 13" Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1 1/4" X .042" X 16'8"
Sawing Feed: Variable, Hydraulic
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Manual with Indicator
Bandwheel Size: 20"
Vise: Manual, 8-1/2"
Blade Drive: 7 1/2 HP, 3ph, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity:  3/4 Gallon
Hydraulic Drive:  1/3 HP Motor
Work Height: 26"
Shipping Weight: 2,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 118" Length x 52" Width x 88" Height
