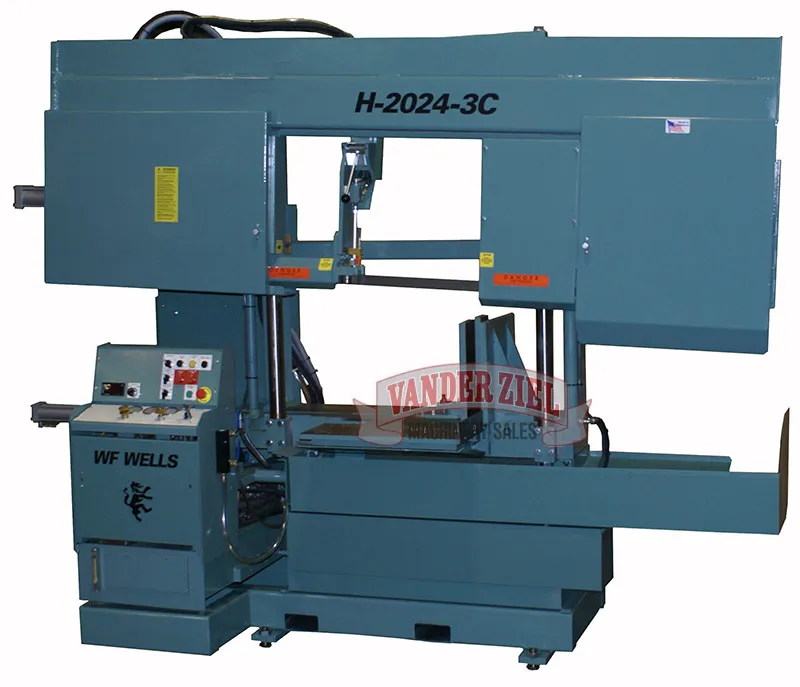

W.F. Wells 19.5" x 24" Semi-Automatic Horizontal Saw, Model H-2024-3C - NEW

W.F. Wells 19.5" x 24" Semi-Automatic Horizontal Saw, Model H-2024-3C - NEW

SKU#4020013

Machine Specifications

• Capacity: Rectangular @ 90° 19- 1/2" H x 24" W, Round at 90° 20" Diameter


• Weight Capacity: 5,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 1 1/2" X .050" X 20′-0"


• Blade Guide: Roller Guides with Carbide Inserts


• Blade Tension: Hydraulic Order


• Bandwheel Size: 22"


• Vise: Manual or Full Stroke Hydraulic, 15"


• Blade Drive: 10 HP, AC Vector Drive


• Sawing Force: 0-750 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 2 HP Motor


• Work Height: 35"


• Shipping Weight: 3,900 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Shipping Dimensions: 103"L x 50"W x 93"H
