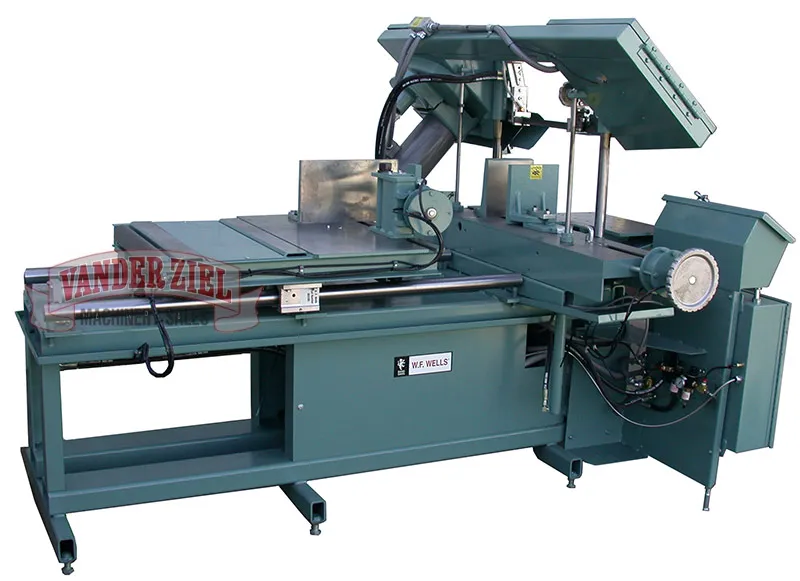

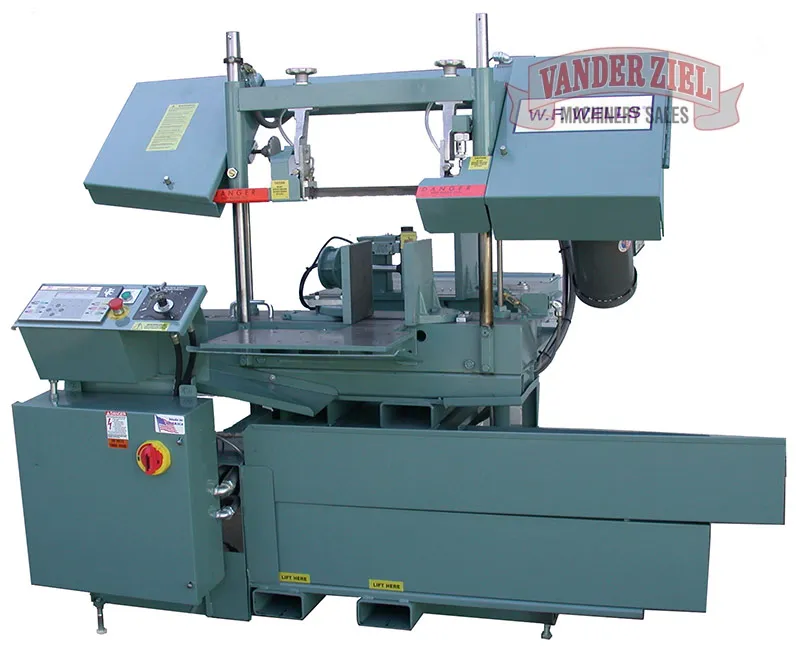

W.F. Wells 9" x 14" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model W-914A-CNC - NEW

W.F. Wells 9" x 14" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model W-914A-CNC - NEW

SKU#4020025

Machine Specifications

• Capacity: Rectangular at 90° 9" High x 14" Wide Round 9" Diameter


• Weight Capacity: 3,000 lbs


• Blade Speed: 70-380 SFPM


• Blade Size: 1" X .035" X 11′ 6"


• Blade Guide: Roller Guides with Carbide Inserts


• Vise: Air, 8 1/2" High


• Bandwheel Size: 14 1/2"


• Blade Tension: Manual


• Blade Drive: 3 HP Variable Speed


• Sawing Force: 30-120 lbs


• Coolant Capacity: 15 Gallon


• Hydraulic Capacity:  3/4 Gallon


• Hydraulic Drive:  3/4 HP Motor


• Work Height: 35"


• Barfeed Projection: Hydraulic 0-25" CNC Controlled


• Projection Accuracy: +/-.002"


• Shuttle Indexes: Unlimited


• Remnant End: 8"


• CNC Programmable Controller with Color Touch Screen


• Machine Diagnostics & Programming Prompting


• 99+ Job Selection


• Automatic Kerf Compensation


• Blade Break/Stall Switch


• Fork Lift Pockets in Base


• Tipoff Worktable: 19 1/2" Wide x 15 1/2" Deep


• Shipping Weight: 2,400 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 82" Length x 96" Width x 68" Height
