Price $0

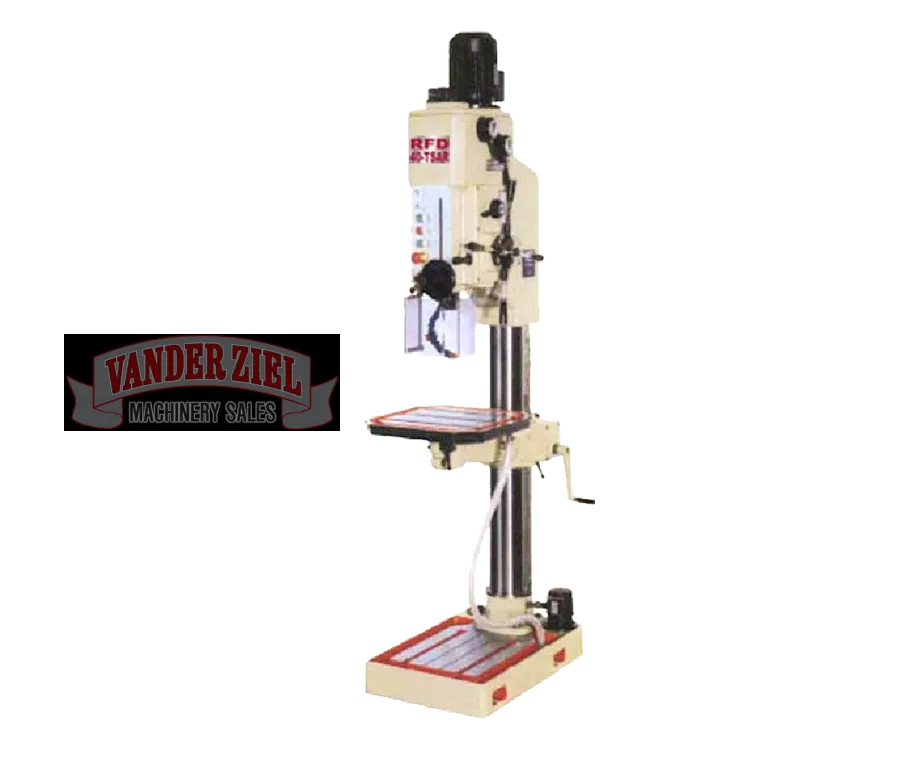

Lagun TSAR Floor Drill - NEW

SKU #4205000

Capacity	40	45
Maximum Drilling Capacity in Steel	1.57"	1.77"
Maximum Tapping Capacity in Steel	1.25"	1.37"
Morse Taper No.	4 7" 7"
Maximum Drilling Depth
Maximum Tapping Depth
Motor	40	45
Main Motor	2 hp	3HP
Standard Speeds 50 Hz	93 - 1420 RPM
Standard Speeds 60 Hz	112 - 1704 RPM
Drilling Feed Number	3
Drilling Feed Range	0.0039" - 0.0071" -0.0095"
Motor Pump Cooling	0.10 hp
Weights	40	45
Weight Admitted by Worktable	441 lb
Approximate Machine Weight	881 lb	959 lbs.
Packaging Data	40	45
Gross Weight with Packaging	1,058 lb	1,246 lbs.
Dimensions	35.43" x 23.62" x 94.48"	41.34" x 26.77" x 98.43"
Volume	45.76 ft³	63.03 ft³
