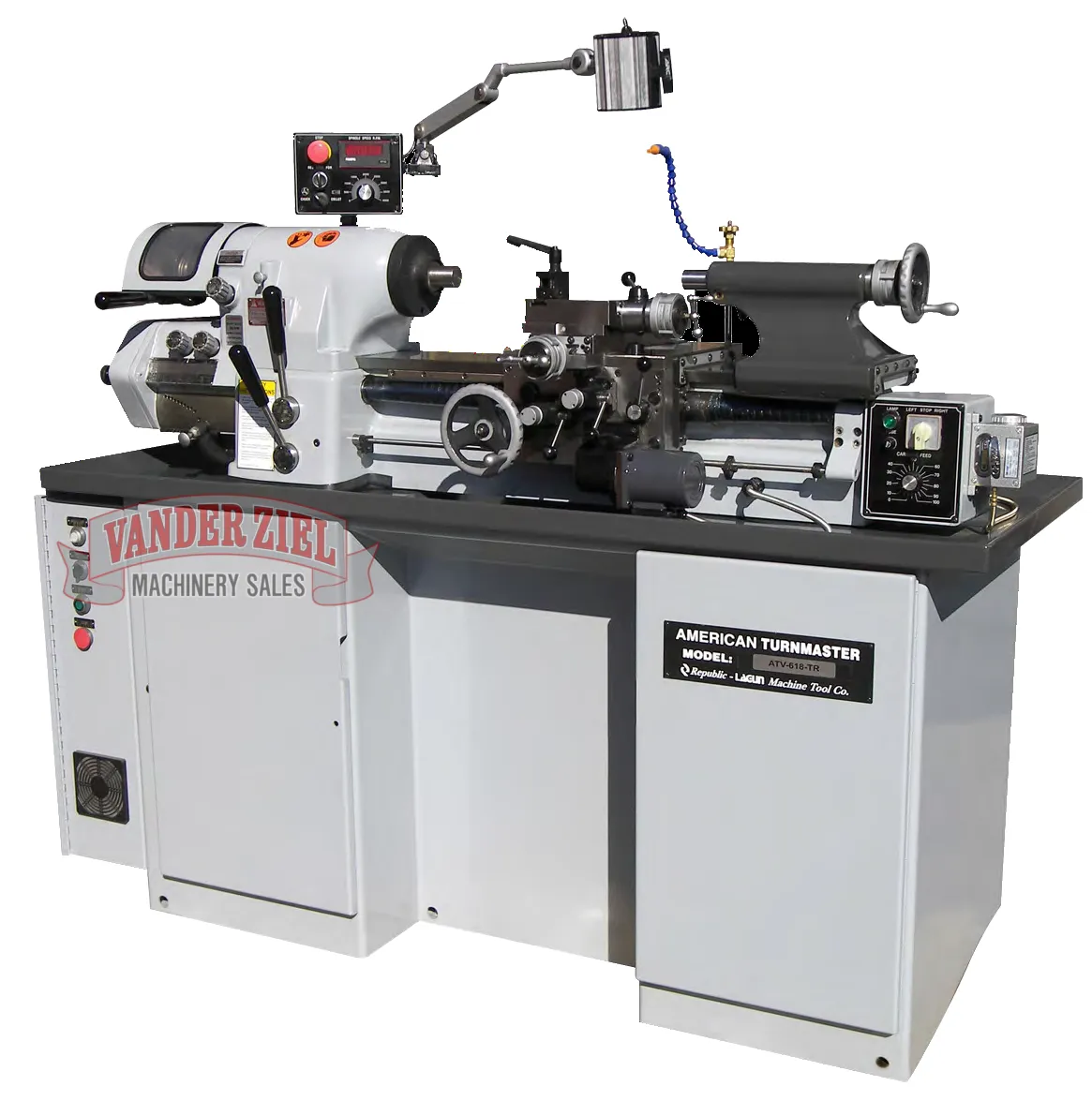

Lagun 11" x 36" Precision Tool Room Lathe, Model ATV-618-TR - NEW
Lagun 11" x 36" Precision Tool Room Lathe, Model ATV-618-TR - NEW
SKU #4211001
ATV-618 Specifications
| Table | |
| Swing Over Bed | 11" |
| Swing Over Carriage | 9" |
| Swing Over Cross slide | 6" |
| Distance Between Centers | 18" |
| Length of Bed | 36" |
| Headstock | |
| Spindle Nose Diameter | 2.189" |
| Spindle Speed | Infinitely variable |
| Spindle Speed Range | 0 to 4,000 RPM |
| Spindle nose, ID / CO, 5C | 10°/4° |
| Spindle Nose, Outside Taper | 4° |
| Capacity | |
| 5C Round collets | 1 - 1/16" |
| 5C Hex collets | 7/8" |
| 5C Square collets | 3/4" |
| With Expanding Collets | 3" |
| With Step Chucks | 1-1/16" to 6" |
| With Jaw Chucks | 6" |
| Travels, Feeds, and Threads | |
| Cross Slide Travel | 6" |
| Compound Slide Travel | 3" |
| Quick Action Compound Slide Travel | 0.1" |
| Carriage Variable Feed Range | 5/16" to 7" |
| Cross Slide Variable Reed Range | 3/16" to 4" |
| Leadscrew, Pitch x Diameter | 8 TPI X 1" |
| Thread Range | 11 - 108 TPI |
| Tailstock | |
| Tailstock Spindle Diameter | 1.358" |
| Spindle Taper | No. 2 MT |
| Spindle Travel | 3.75" |
| Electronics | |
| Main drive, EVS, 3/60/220 volt | 3 Hp; Opt. 5HP |
| Coolant Pump Motor | 0.25 Hp |
| Physical Dimensions | |
| Gross Weight | 2,314 lb |
| Length | 73" |
| Width | 30 " |
| Height | 67" |
REF: 010893
