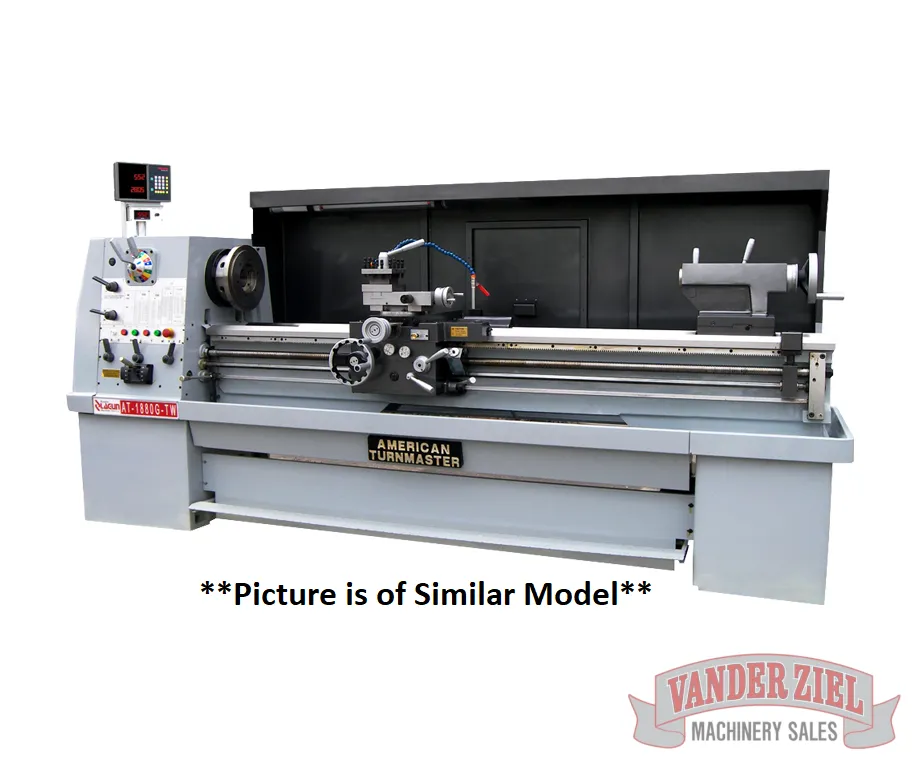

Lagun American Turnmaster 14" x 60" Lathe, Model AT-1460-G Colchester Type - NEW
Lagun American Turnmaster 14" x 60" Lathe, Model AT-1460-G Colchester Type - NEW
SKU #4211006
| Capacity | |
| Swing over bed | 14 3/16" |
| Swing over cross slide | 8 3/8" |
| Distance between centers | 60" |
| Headstock | |
| Spindle nose, cam-lock | D1-6 |
| Spindle bore (max. bar dia.) | 2 1/16" |
| Spindle speeds (hi-lo) | 16 steps |
| Spindle speed range | 40-2000 rpm |
| Low Range | 40-60-100-165-245-375-625-1000 |
| High Range | 80-120-200-330-490-750-1250-2000 |
| Carriage | |
| Length on bed | 20" |
| Width of bridge | 16 1/15" |
| Cross Slide Travel | 8 11/16" |
| Top Slide Travel | 5 1/2" |
| Bed | |
| Number of V ways | 2 each "V" Ways (opt. 3 each "V" ways) |
| Bed width | 10 1/4" |
| Swing in gap | 21" |
| Tailstock | |
| Quill diameter | 2.5" |
| Quill center | M.T.4 |
| Quill Travel | 6 1/2" |
| Feeds and threads | |
| Range of whitworth threads & no.() | 2-72 T.P.I (45) |
| Range of metric threads & No. () | 0.2 - 14(39) |
| Range of D.P. & number () | 8-44(21) |
| Range of M.P. & number () | 0.3-3.5(18) |
| Longitudinal feeds | 0.002-0.067" |
| Cross feeds | 0.001-0.034" |
| Motor | |
| Main motor, 2-speed (full hp on first speed, 1/2 hp on second speed) | 5 / 2.5 hp |
| Coolant Pump | 1/8 hp |
REF: 010898
