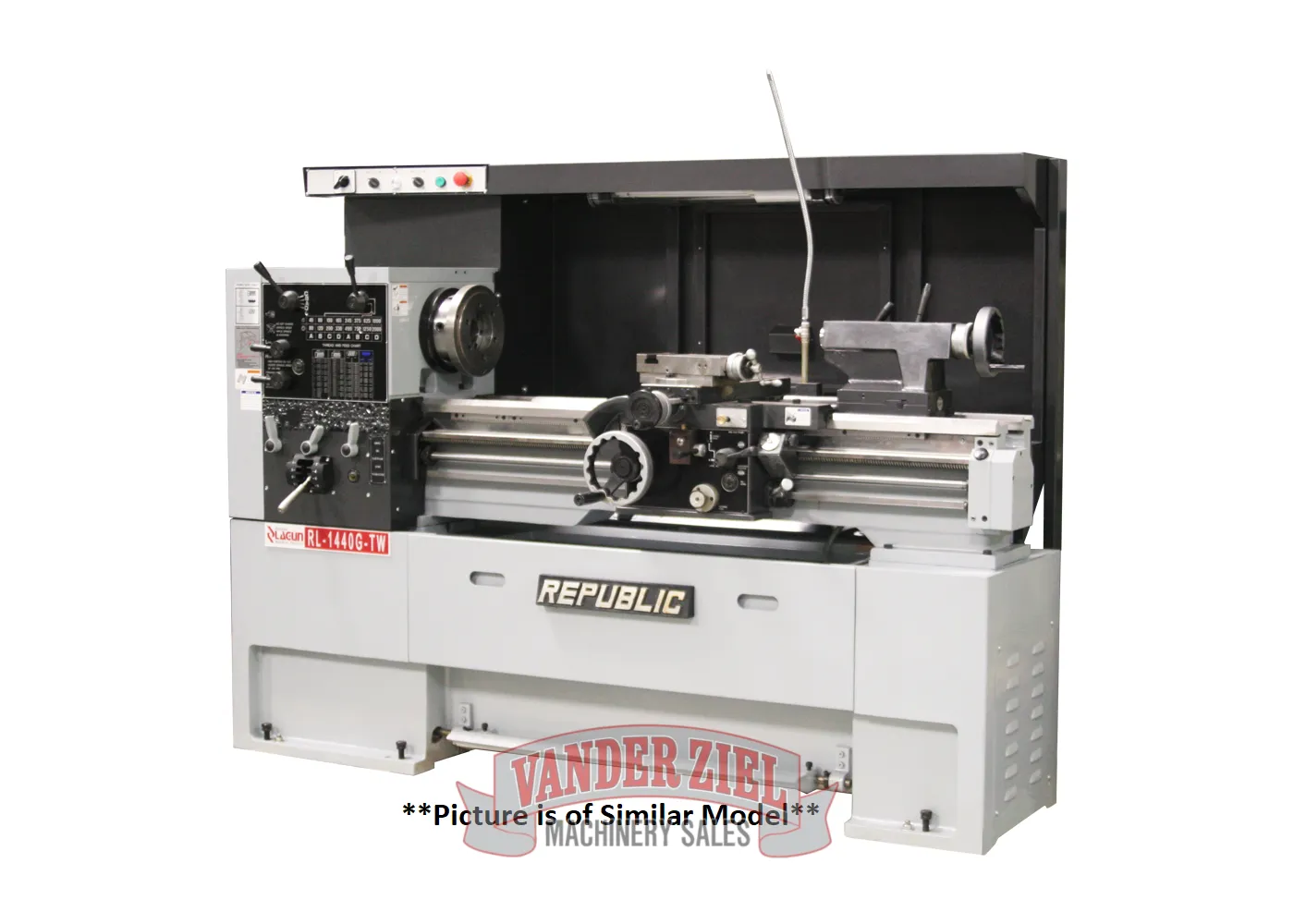

Lagun Republic 14" x 40"/60" Precision Gap Bad Lathe, Model RL-14 - NEW
Lagun Republic 14" x 40"/60" Precision Gap Bad Lathe, Model RL-14 - NEW
SKU # 4211010
| Capacity | |
| Swing Over Bed | 14.17" |
| Swing Over Cross Slide | 8.42" or 10.39" |
| Distance Between Centers | 39.37" or 59.06" |
| Swing in Gap | 20.98" to 22.95" |
| Gap Width from Spindle Nose | 5.31" or 8.85" |
| Headstock | |
| Spindle Nose, Cam-lock | D1-6 |
| Spindle Bore | 2.067" |
| Spindle Speeds | 16 Steps (w/ Optional EVS; 2 steps) |
| Spindle Speed RangeOptional EVS | 40 RPM to 2,000 RPM20 RPM to 3,000 RPM w/ EVS |
| Carriage | |
| Length on Bed | 20.19" |
| Width of Bridge | 16.22" |
| Cross Slide Travel | 8.66" |
| Top Slide Travel | 5.12" |
| Bed | |
| Number of V Ways | 3 |
| Bed WIdth | 10.23" |
| Feeds & Threads | |
| Range of Threads | 2 TPI to 72 TPI |
| Number of Threads | 45 |
| Longitudinal Feed | 0.0019" to 0.0669" |
| Cross Feed | 0.0009" to 0.0334" |
| Tailstock | |
| Quill Diameter | 2.04" |
| Quill Travel | 5.98" |
| Quill Center | M.T.4 |
| Motor | |
| Main Motor(standard) | 5 Hp |
| Coolant Pump | 0.125 Hp |
| Measurement | |
| Length Packed | 89.37" |
| Width Packed | 44.09" |
| Height packed | 68.70" |
| Weight | |
| Gross Weight | 2,976 lb |
REF: 010902
