40 TO 240 TONS CAPACITY
For simplicity, efficiency, economy, in hydraulic bending. Dreis & Krump offers a Hydraulic Press Brake that does the job at a price you can afford.

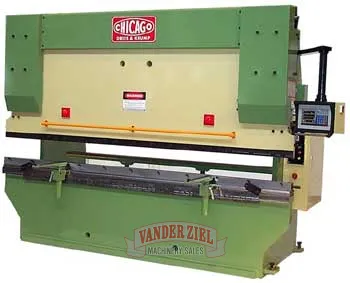

Chicago 120 Ton Hydraulic Press Brake, Model HPB - NEW
Chicago 120 Ton Hydraulic Press Brake, HPB
SKU: 4503007
Hydraulic Press Brake Models
HPB STANDARD FEATURES:
- All steel welded construction.
- Tonnage indicator with adjustable load control.
- Sectional ram clamping bars.
- Adjustable slow down switch.
- Die holder.
- Mechanical leveling - torsion bar.
- Electronic stroke counter.
- NC back gauge, ball screw driven with vertical height adjustment.
- Full length dovetail slot.
- Deflection compensator built into bed top.
- Operator hand rail.
- Numeric Control of second axis.
- Foot switch control.
| Model | Tons | Max Length | Between Housings | Open Height | Stroke | Throat Depth | Advance Speed | Press Speed | Return Speed | H.P. | Weight Lbs. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPB 11032 | 120 | 10' 6" | 8' 8" | 14" | 8" | 12" | 240 IPM | 24 IPM | 140 IPM | 10 | 15000 | |
| HPB 11040 | 120 | 13' 1" | 11' 3" | 14" | 8" | 12" | 240 IPM | 24 IPM | 140 IPM | 10 | 20000 | |
| HPB 11026 | 120 | 8' 6" | 6' 8" | 14" | 8" | 12" | 240 IPM | 24 IPM | 140 IPM | 10 | 14000 |
REF: 013231
