Geka Bendicrop 50 Single Cylinder Ironworker - NEW
Geka Bendicrop 50 Single Cylinder Ironworker - NEW
SKU # 4610003

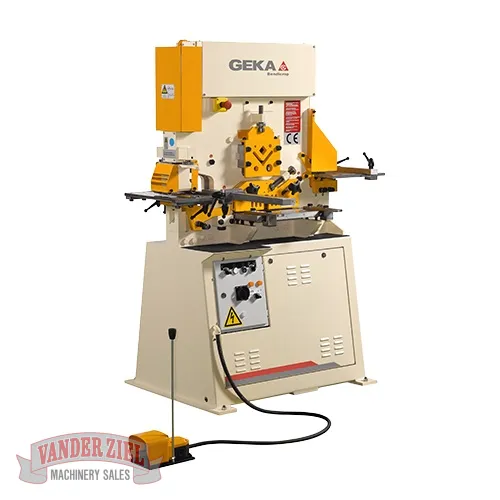

Bendicrop 50 Ironworker Machine
Bendicrop 50 hydraulic ironworker for sale from Geka, featuring a built-in bending station
The Bendicrop 50, part of Geka's Bendicrop Series of hydraulic ironworking machines, features a single cylinder and six workstations. The six workstations include a built-in bending station that makes the Bendicrop machines unique in the market.
BENDICROP 50 FEATURES AND SPECIFICATIONS
| FEATURES | BENDICROP 50 |
|---|---|
| Punching Power | 55 US Tons |

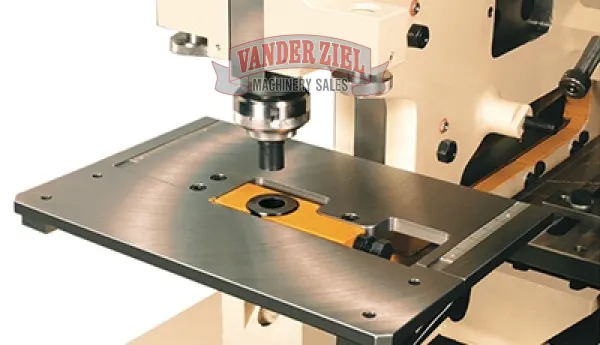

| Punching | Ø 1-1/16" x 1/2" |

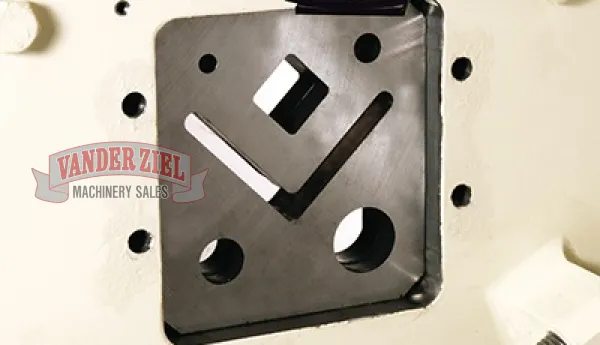

| Shearing flat bars | 14 x 3/8"@ 2º14 x 1/2"@4º |
| Shear of angle section L at 90 | 3" x 3" x 5/16 |

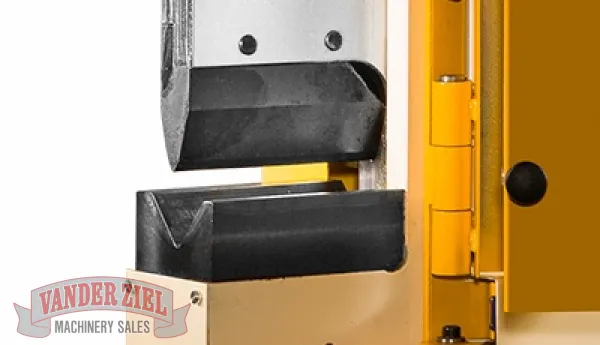

| Bending | 4" x 3/8" with 2 "V" dies of1-5/8" and 2-3/4" Openings |

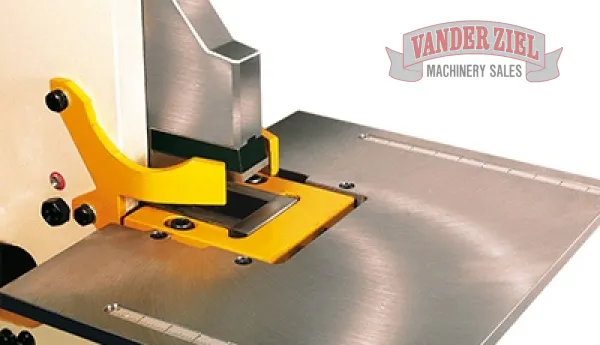

| Rectangular Notching | Thickness 3/8"Width of Notcher 1-9/16"Depth of Cut 3/8" |
| Round and Square Bar Shearing | Ø1-3/8" Ø1-3/16" Square |
- The manufacturer reserves the right to make modifications without prior notice.
- All capacities based on a material resistance of 65,000 tensile.
- Throat depth of punch is 6-7/8".
- Can also accept cutting of U profiles up to 3" x 4.1lb and other shapes of profiles in the Section
- Shearing. Ask of more details on the sizes you may need to shear.
- Also, the ability to install a Pipe/Tube Notcher, Triangular Notcher, or even a second Punching
- Station place of the Rectangular Notcher.

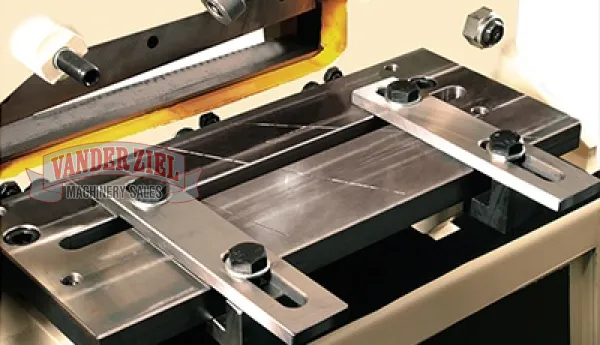

- Furthermore, it is fitted with a system to reduce deformation (twisting) when Shearing Fat Bars.
- The manufacturer reserves the right to make modifications without prior notice.
- All capacities based on a material resistance of 65,000 tensile.
Thanks to the blade holder's vertical movement, the machine has the machine performs excellently in its six workstations:
- Punching station
- Notching station
- Flat bar shearing station
- Angle cutting station
- Round and square bar shearing station
- Integrated bending station
The machine also comes equipped with Geka's anti-torsion system, which reduces deformation when shearing flat bars.
REF: 013698
