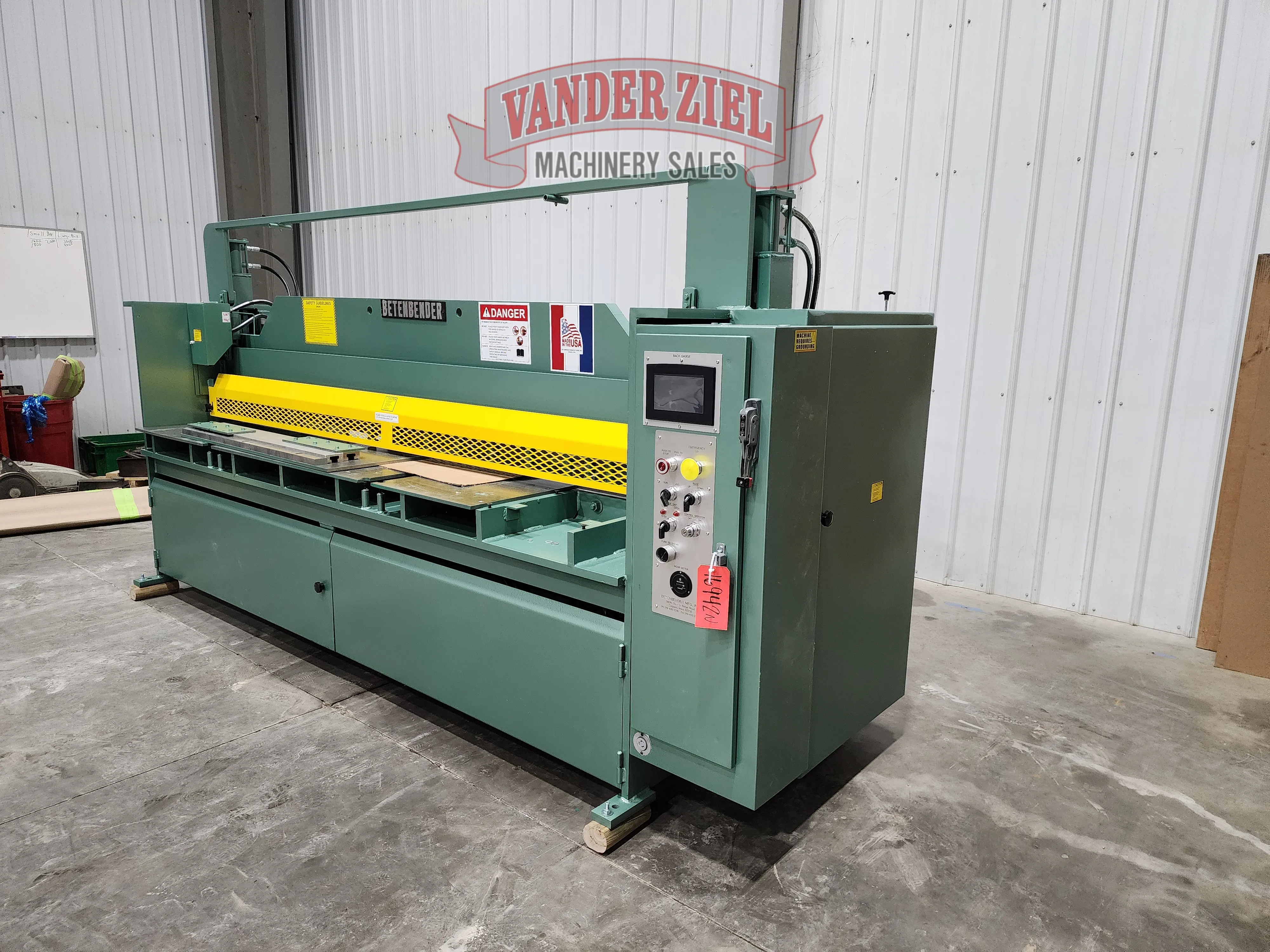

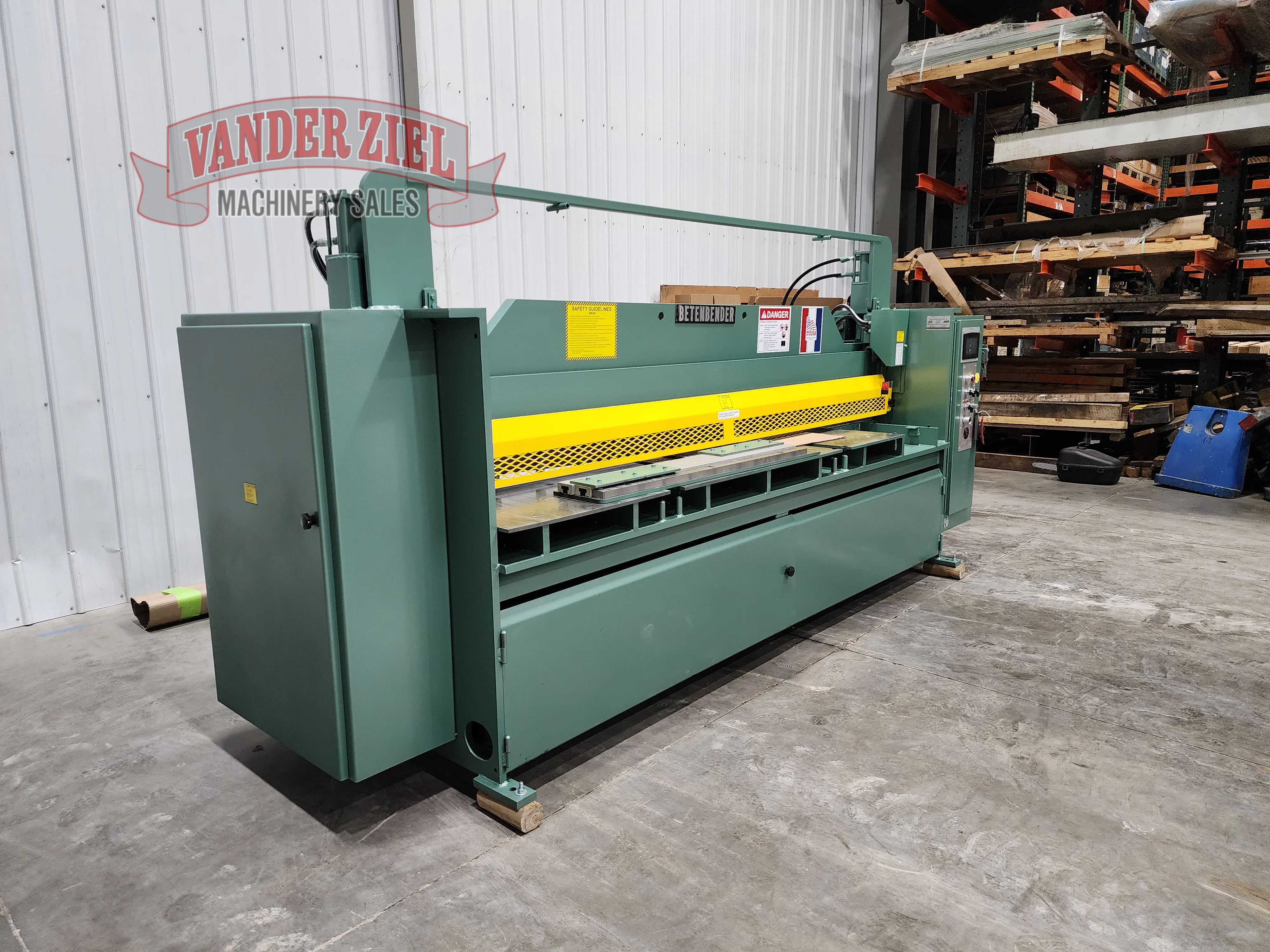

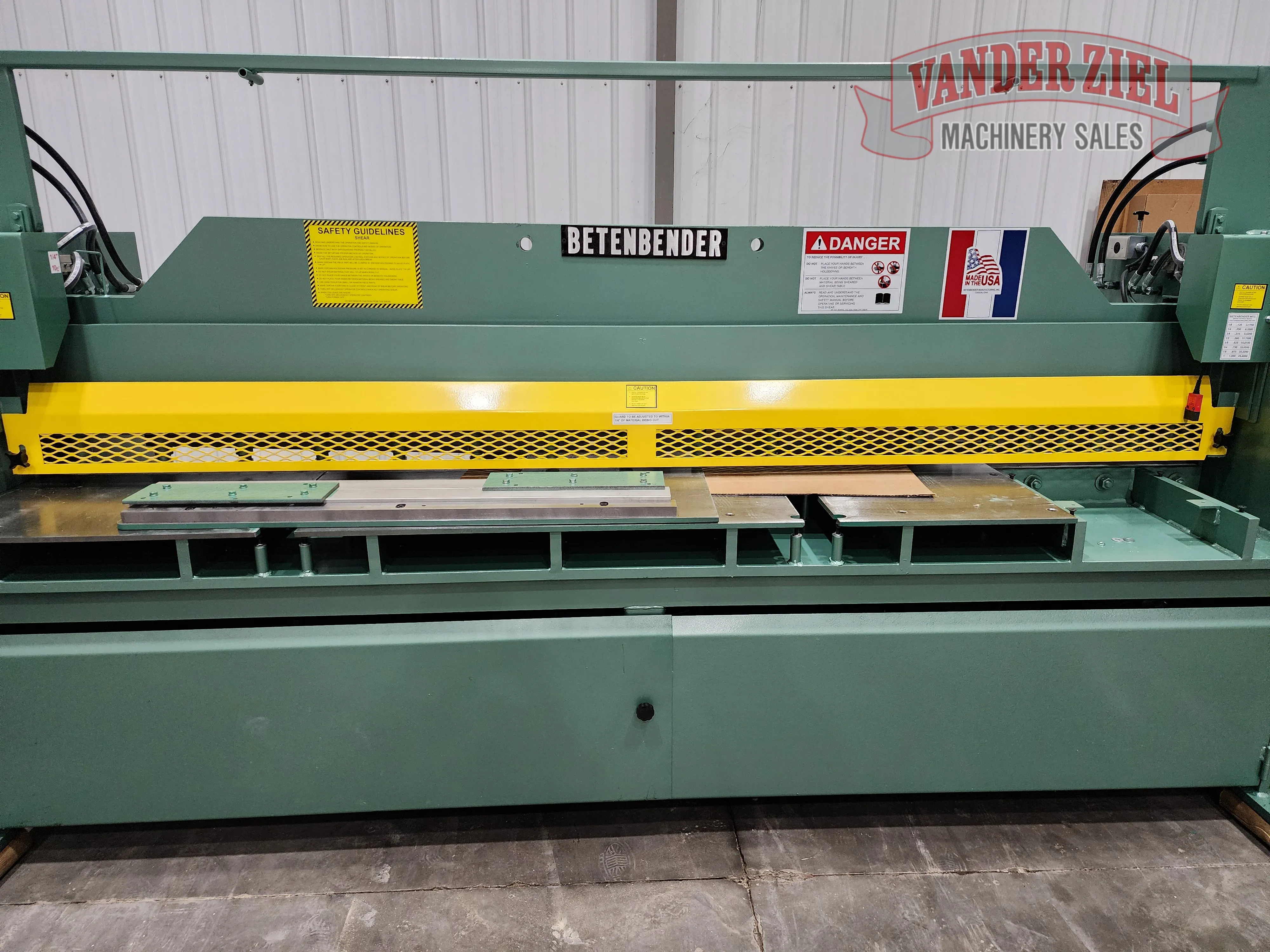

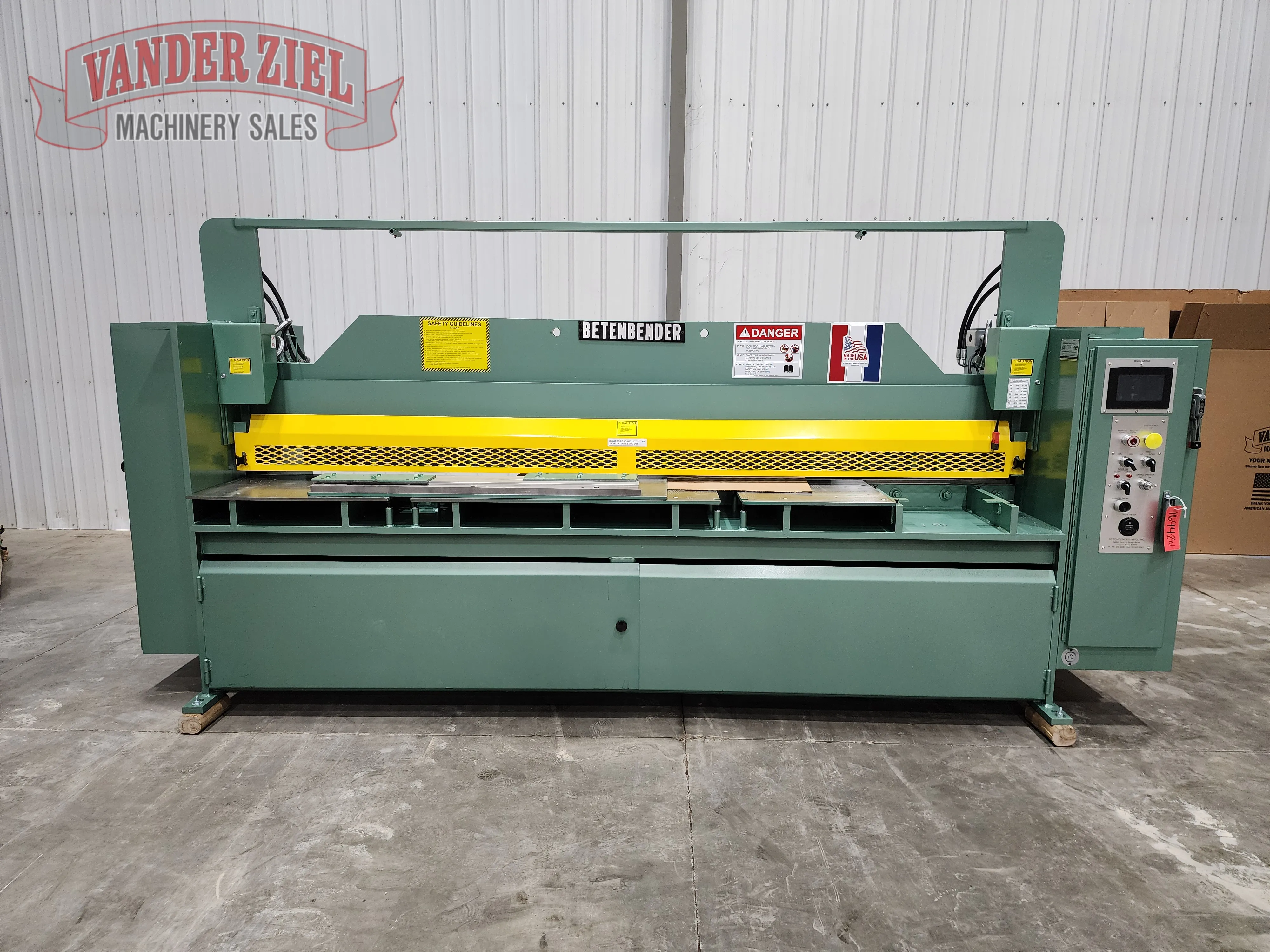

Betenbender 10' x 1/4" Low Profile Shear, Model 10'-250

Betenbender 10' x 1/4" Low Profile shear, Model 10'-250

Asset # 16942

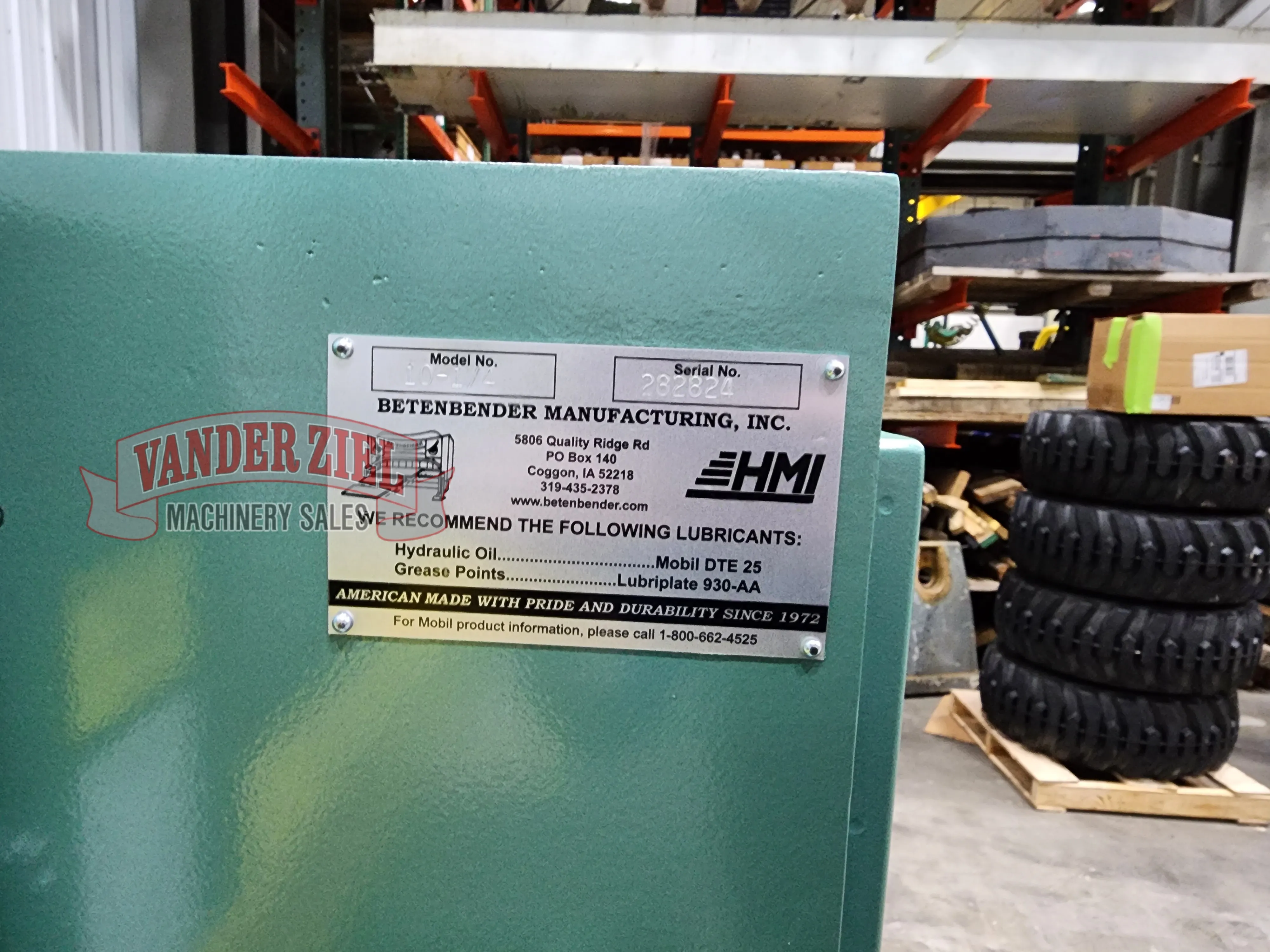

Serial # 282824

Check up to five results to perform an action.

A precision cut doesn't happen by chance.

It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven Hydraulic Shears are designed to do exactly that.

Betenbender designs simplicity and safety into its shears-with an advanced hydraulic system, and flexible operation. They're easy to operate, easy to maintain and able to withstand the rigors of today's production demands. A wide range of options are available.

Features

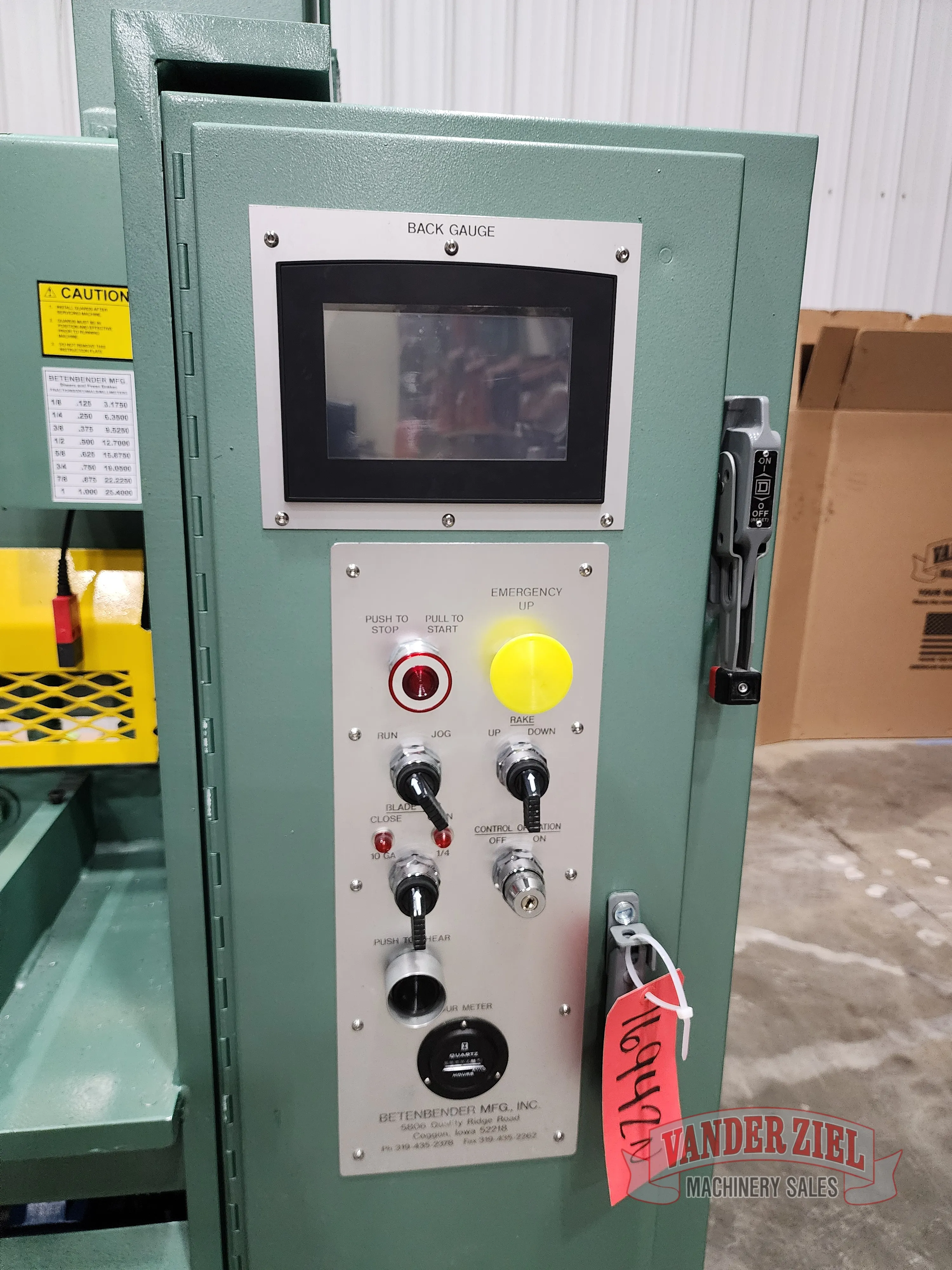

Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110v footswitch lets you interrupt the cutting stroke at any point in its cycle.
Easy Material Handling: A sturdy backgauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4′ squaring arm with a recessed scale makes for fast, easy measurement.
Single Piece Top and Bottom, High Carbon, High Chrome Shock Resistant Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials.
Electrical System: Meets NFPA 79 and construction requirements of the ANSI B11.4. All machines have disconnect switches magnetic starters, 110/120v controls, and 208-230/460v 3 phase, others optional.
Backgauges: A Betenbender Shear is capable of shearing 1/8" (10 GA) material to the following tolerance: Dimension - The width of the off-cut portion of the workpiece is within ±0.005 inch of the backgauge setting.

Model 10′ - 250
Overall Length  156"
Anchor Bolt Dimensions 127"
Length
Knife Length   124"
Strokes Per Minute 15
Weight 12,500 lbs.

Standard Shear Equipment

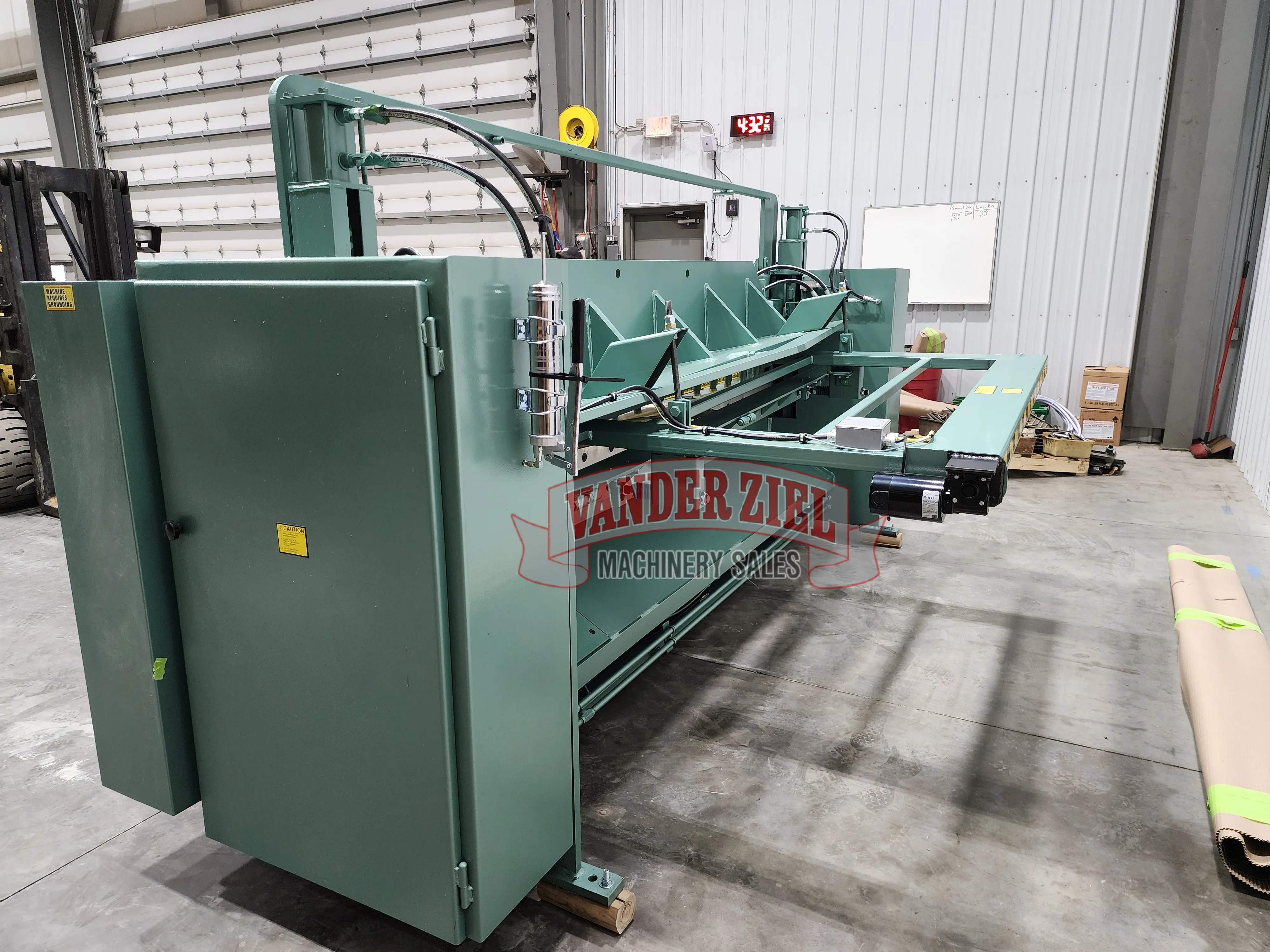

* 36" Power Backgauge w/ LED Readout
* 4' Squaring Arm w/Inlaid Scale
* Power Adjust Variable Rake
* Hour Meter
* All Steel Construction
* Light Beam Gauge
* American Made Motors
* NEMA Electrics
* Disconnect Switch

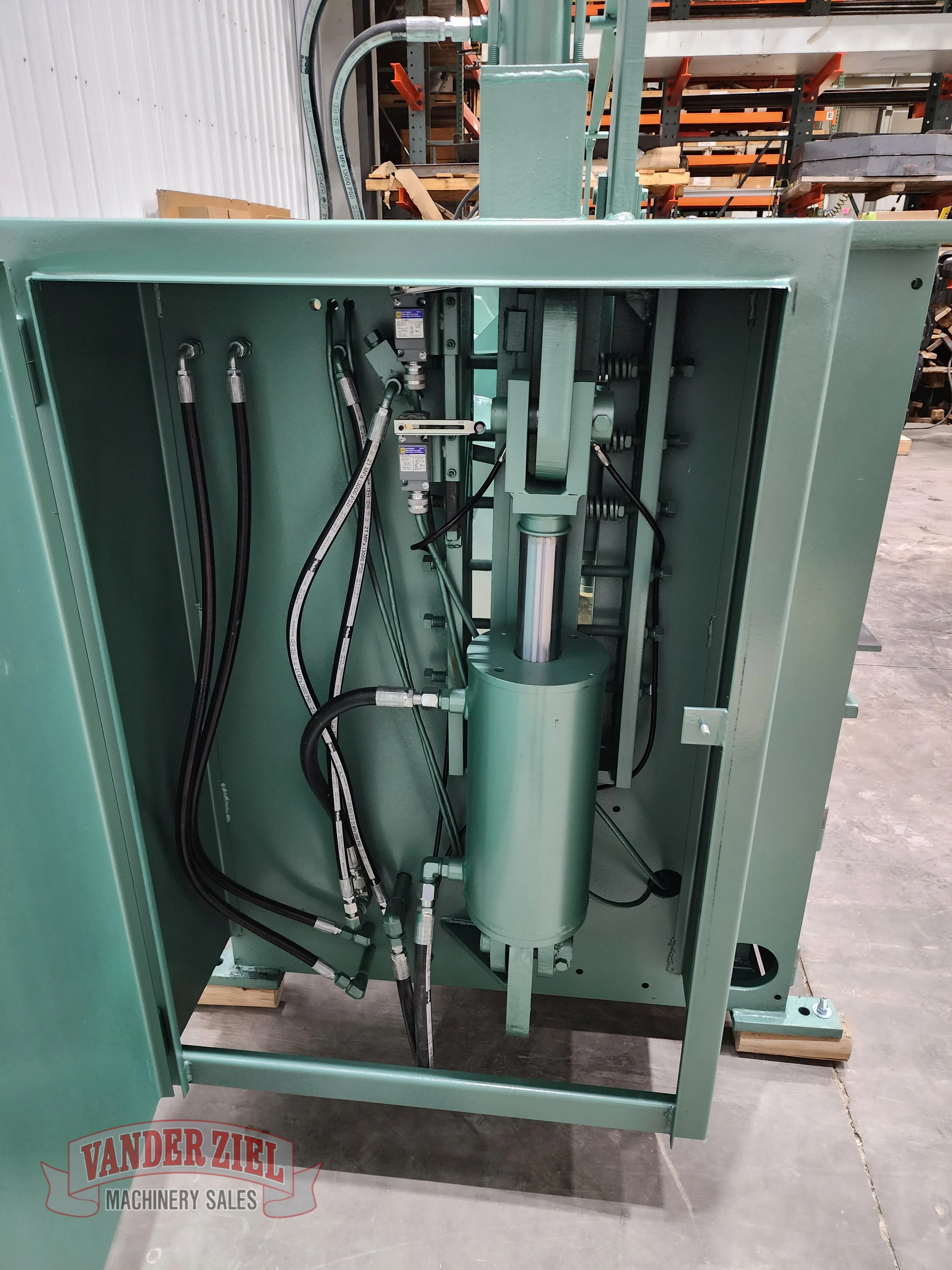

* Hydraulic Self-Compensating Holddown Bar Assembly
* Knives/Four Cutting Edges
* All Hydraulic Fluids Included
* Manual Swingup Backgauge

Shear is equipped with:
NC Control 5 Station "Go To" Backgauge Positioner

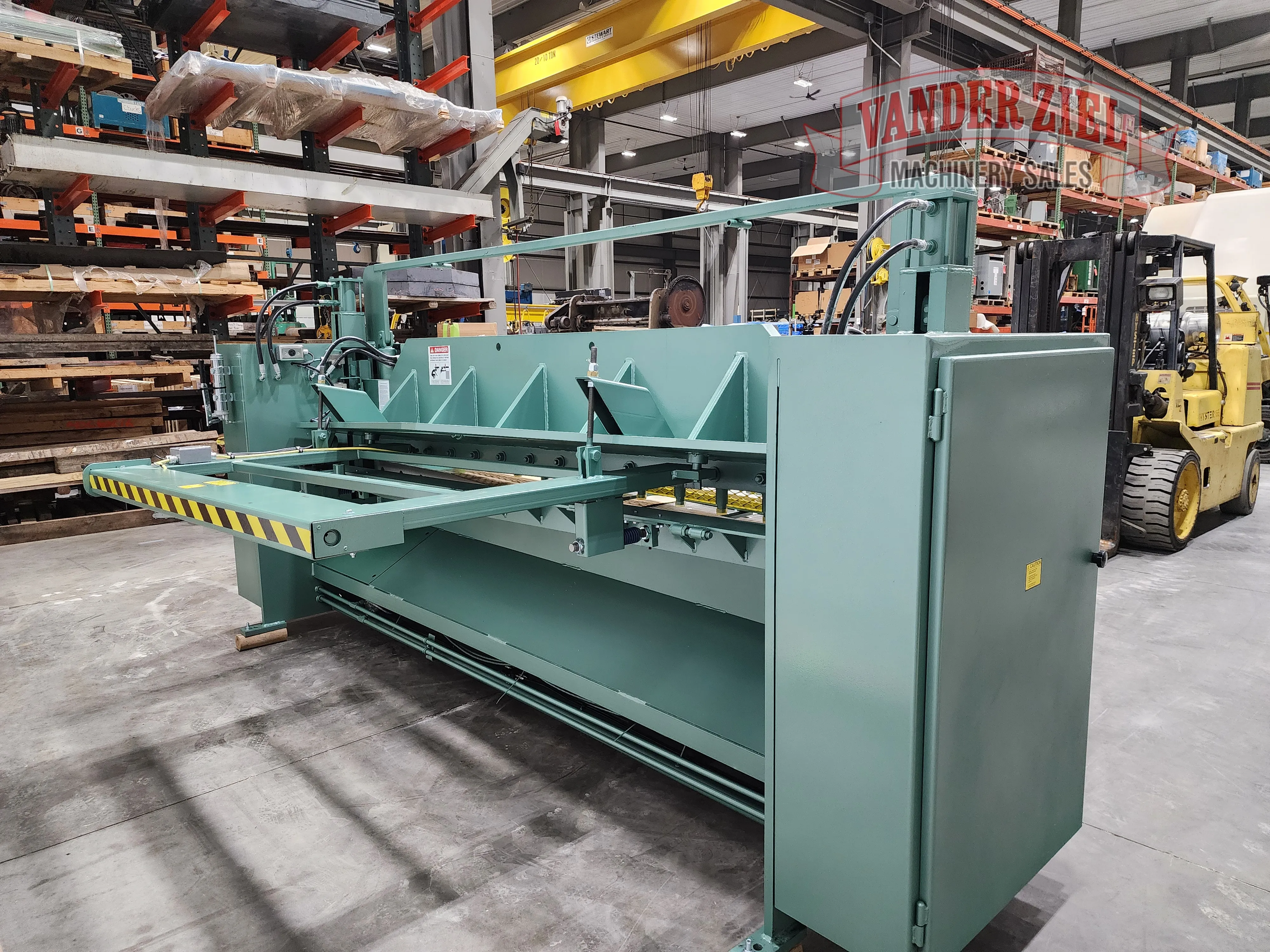

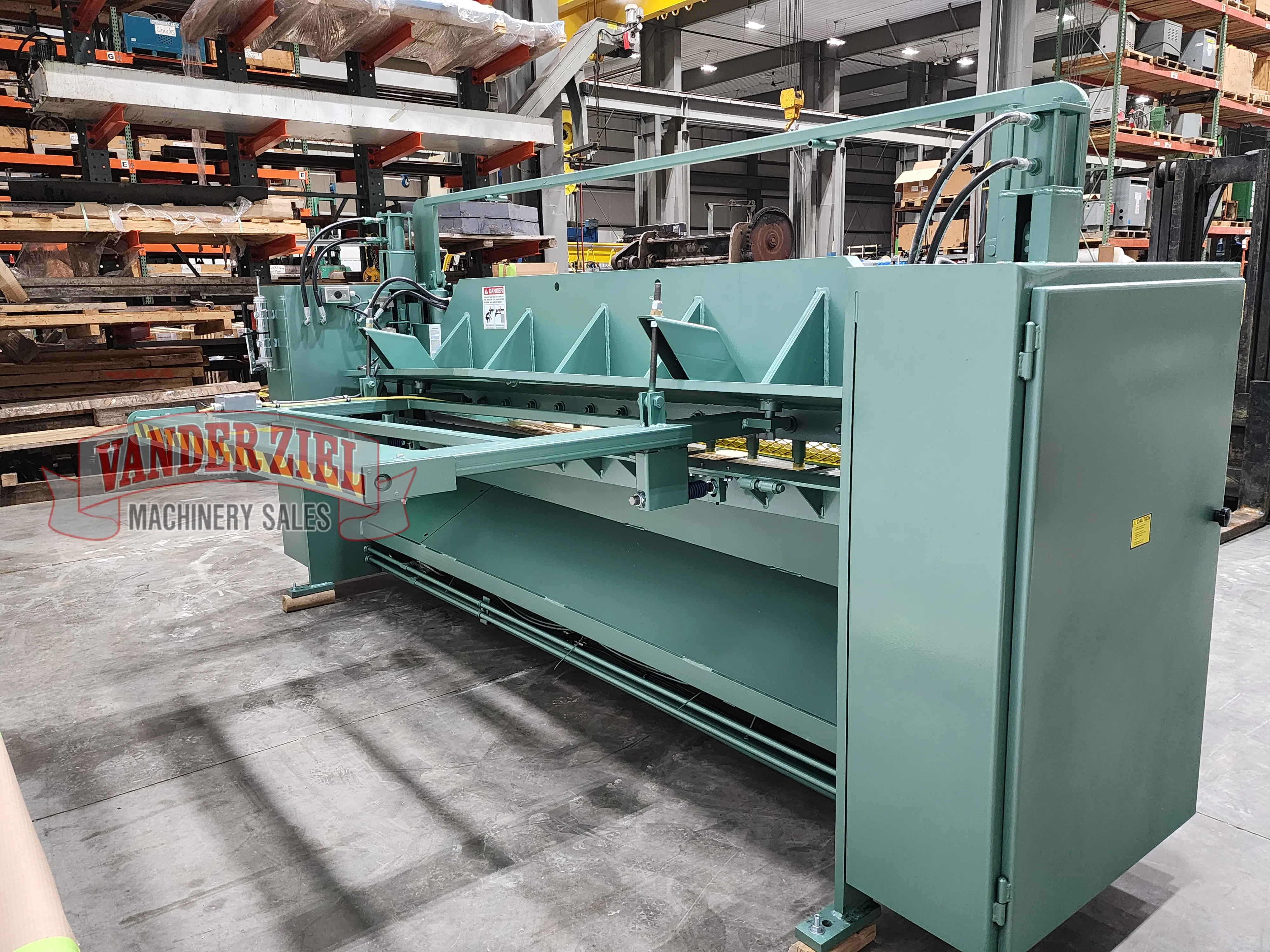

48" Support Arms / Front Gauges with T Slots
Solid Table Top - Bolt on Segments
One Shot Lube
Keylock Switch
Neoprene Holddown Caps
