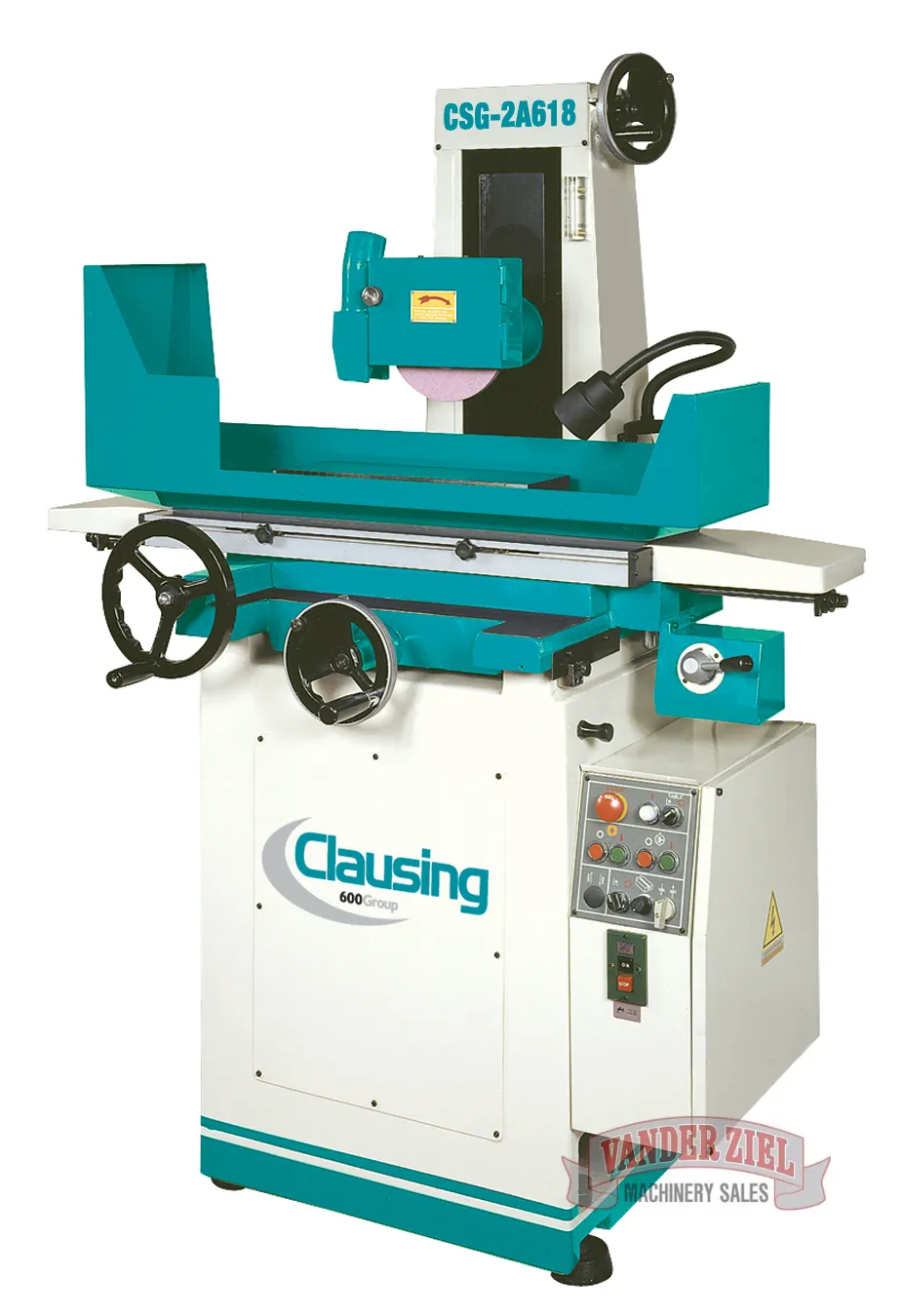

Clausing Model CSG-2A Hydraulic Surface Grinders - NEW

Clausing Model CSG-2A Hydraulic Surface Grinders - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0709000
| Models | CSG2A618 | CSG2A818 | CSG2A1020 | CSG2A1224 | |
| Table Size | 6" x 18" (152 x 460mm) | 8" x 18" (203 x 460mm) | 10" x 20" (254 x 508mm) | 11.81" x 23.62" (300 x 600mm) | |
| Max. grinding length (longitudinal) | 19" (480mm) | 19" (480mm) | 20.47" (520mm) | 23.62" (600mm) | |
| Max. grinding width (crosswise) | 6.61" (168mm) | 9" (228mm) | 11" (280mm) | 11.81" (300mm) | |
| Max. distance from table surface to spindle centerline (standard column) | 18" (460mm) | 18" (460mm) | 19.68" (500mm) | 23" (585mm) | |
| (optional column) | 23.62" (600mm) | - | |||
| Standard magnetic chuck size | 6" x 18" (150 x 450mm) | 8" x 18" (200 x 450mm) | 10" x 20" (250 x 500mm) | 12" x 24" (300 x 600mm) | |
| Longitudinal movement of table | |||||
| Max. travel (hydraulic) | 19" (480mm) | 19" (480mm) | 22.83" (580mm) | 25.59" (650mm) | |
| Max. travel (manual) | 20" (510mm) | 20" (510mm) | 24.41" (620mm) | 28.74" (730mm) | |
| Table speed infinitely variable | 196"-984"/min. (5-25 m/min.) | 196"-984"/min. (5-25 m/min.) | 196"-984"/min (5-25 m/min.) | 196"-984"/min. (5-25 m/min.) | |
| Crossfeed transverse travel | |||||
| Auto transverse increment | .04" - .4"(1-10mm) | .04" - .4"(1-10mm) | .04" - .5" (1-13mm) | .04" - .75" (1-19mm) | |
| Max. auto transverse travel | 7" (180mm) | 9.25" (235mm) | 10.63" (270mm) | 12.2" (310mm) | |
| Max. manual transverse travel | 7.68" (195mm) | 9.84" (250mm) | 11.81" (300mm) | 13.39" (300mm) | |
| Handwheel per revolution | 0.2" (5mm) | 0.2" (5mm) | 0.2" (5mm) | 0.2" (5mm) | |
| Handwheel per graduation | 0.0008" (.02mm) | 0.0008" (.02mm) | 0.0008" (.02mm) | 0.0008" (.02mm) | |
| Wheelhead vertical downfeed | |||||
| Rapid Travel Approx. | N/A | N/A | |||
| Handwheel per revolution | 0.04" (1mm) | 0.04" (1mm) | 0.04" (1mm) | 0.04" (1mm) | |
| Handwheel pe graduation | 0.0002" (.005mm) | 0.0002" (.005mm) | 0.0002" (.005mm) | 0.0002" (.005mm) | |
| Grinding spindle drive | |||||
| Speed (rpm) | 3450 | 3450 | 3450 | 1750 | |
| Power rating | 2 Hp | 2 Hp | 3 Hp | 5 Hp | |
| Standard grinding wheel | |||||
| Diameter | 8" (203mm) | 8" (203mm) | 8" (203mm) | 12" (304mm) | |
| Width | .5"(12.7mm) max .75"(19mm) | .5"(12.7mm) max .75"(19mm) | .75"(19mm) max 1"(25mm) | 1.25" (31.75mm) | |
| Bore | 1.25" (31.75mm) | 1.25" (31.75mm) | 1.25" (31.75mm) | 3" (76.2mm) | |
| Hydraulic motor (power rating) | 1 Hp x 6P | 1 Hp x 6P | 2 Hp x 6P | 2 Hp x 6P | |
| Crossfeed motor (power rating) | 1/6 Hp x 6P | 1/6 Hp x 6P | 80W | 80W | |
| Elevating motor (power rating) | - | - | N/A | N/A | |
| Total space required (LxWxH) | 71" x 45" x 65" (1810 x 1133 x 1660mm) | 71" x 50.6" x 66" (1810 x 1285 x 1680mm) | 94.5" x 57" x 68.9" (2400 x 1450 x 1750mm) | 106.3" x 63" x 73" (2700 x 1600 x 1850mm) | |
| Net weight | 1,808 lbs (820kg) | 2,579 lbs (1170kg) | 3,916 lbs (1780kg) | 4,299 lbs (1950kg) | |
| Gross weight | 2,138 lbs (970kg) | 2,954 lbs (1340kg) | 4,695 lbs (2130kg) | 4,960 lbs (2250kg) | |
| Rated power, approx | 3 Hp (2.3 kw) | 3 Hp (2.3 kw) | 5 Hp (3.7 kw) | 8 Hp (6 kw) | |
| Packing dimensions (L x W x H) | 65" x 45" x 76" (1650 x 1140 x 1930mm) | 67" x 53" x 76" (1710 x 1340 x 1930mm) | 91" x 84" x 83" (2290 x 2130 x 2100mm) | 91" x 84" x 83" (2290 x 2130 x 2100mm) | |
REF: 000254
