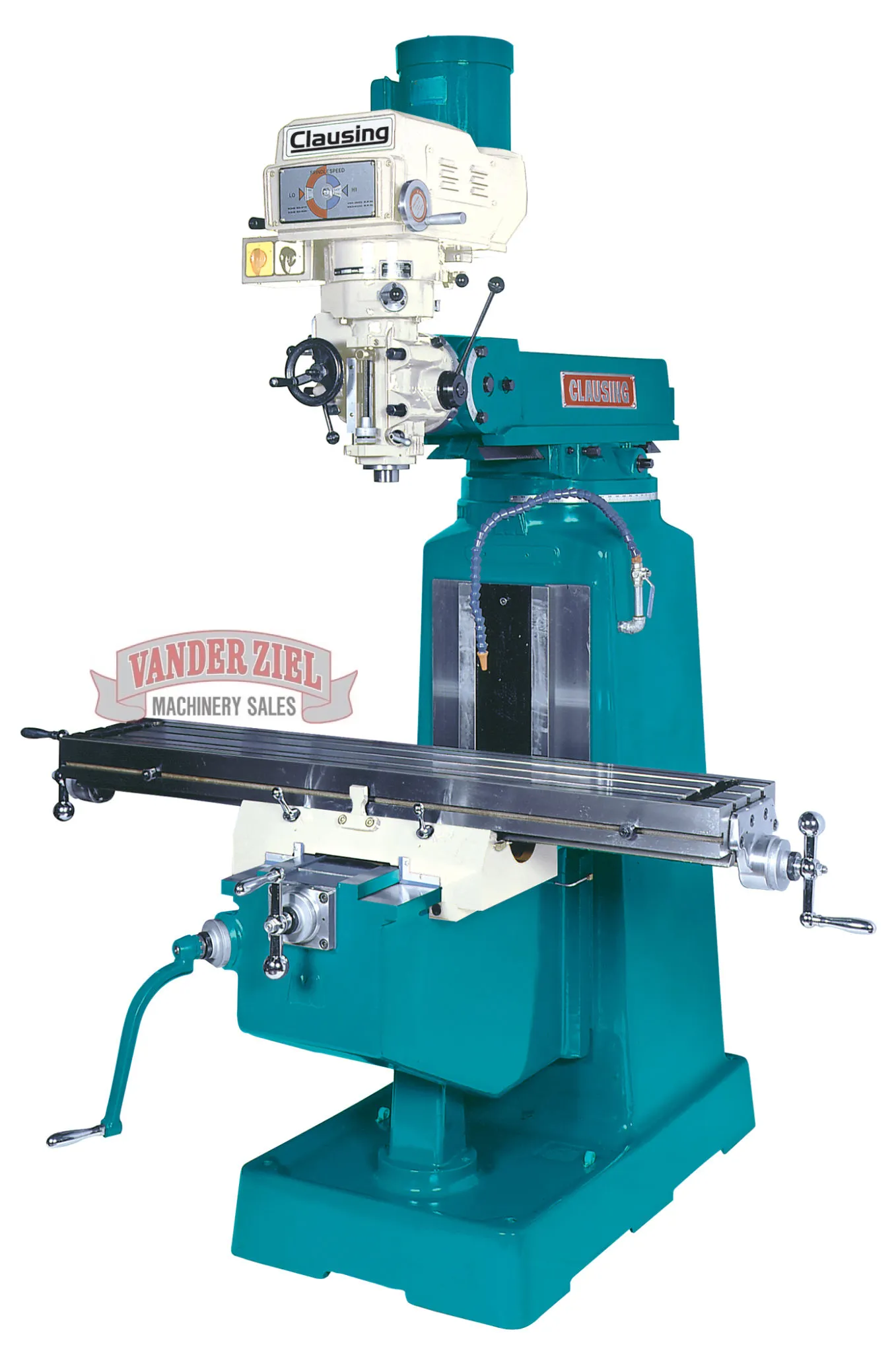

Clausing 3VS Vertical Knee Mill, 10" x 54" Table, 3 HP - NEW

Clausing 3VS Vertical Knee Mill, 10" x 54" Table, 3 HP - NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

SKU #0712001

Standard Features...

• Meehanite Castings for superior rigidity and wear resistance


• Hardened & Ground X,Y & Z Ways


• X/Y ways coated with Turcite B


• Column & Knee Way Covers


• T-slots are ground to provide reference edge for positioning your workpiece


• Hardened & Ground Table Surface


• Hardened & Ground Spindle


• Chromed & Ground Quill


• Chromed X, Y & Z Leadscrews


• Double Nut Leadscrew for backlash compensation


• ABEC 7/CP4 Spindle Bearings


• Coolant System w/Pump & Switch


• Flexible Segmented Coolant Nozzle


• Chromed Y Screw Covers and 0ne-piece Wipers


• 7/16" Imperial Drawbar (2VS, 3VS )


• M16 Metric Drawbar w/lSO 40 Spindle (4VSQ)


• 3 hp AC Motor (2VS & 3VS)


• 5 hp AC Motor (4VSQ)


• AC Rapid Vertical Drive (4VSQ)


• Variable Speed Drive


• Articulating Head for Compound Angles


• Worm gear angular positioning of head in two directions


• Lever-operated manual rapid quill movement


• Handwheel for fine quill feed


• Adjustable automatic feed disengagement for quill feed


• Micrometer depth stop


• Reversing switch for clockwise or counter clockwise operation


• R-8 or lSO 30 Spindle (2VS & 3VS)


• ISO 40 Spindle (4VSQ)


• Spindle Brake (Hand operated)


• One-shot lubrication


• Tool Kit, Test and Accuracy Chart


• Operations Manual/Parts List


• Knee Assist on (4VSQ)

Dimensions
Model	3VS
A Height	91" (2310mm)
B Depth	71" (1803mm)
C Width	73.6" (1870mm)
D Table to Spindle	1.97"-19.68" (50-500mm)
E 45° Inward	0-18" (0-457mm)
F Spindle ø to column	5.5"-24" (140-610mm)
G 45° Outward	10.43"-27.95" (265-710mm)
H Head Tilt	90° right & left
