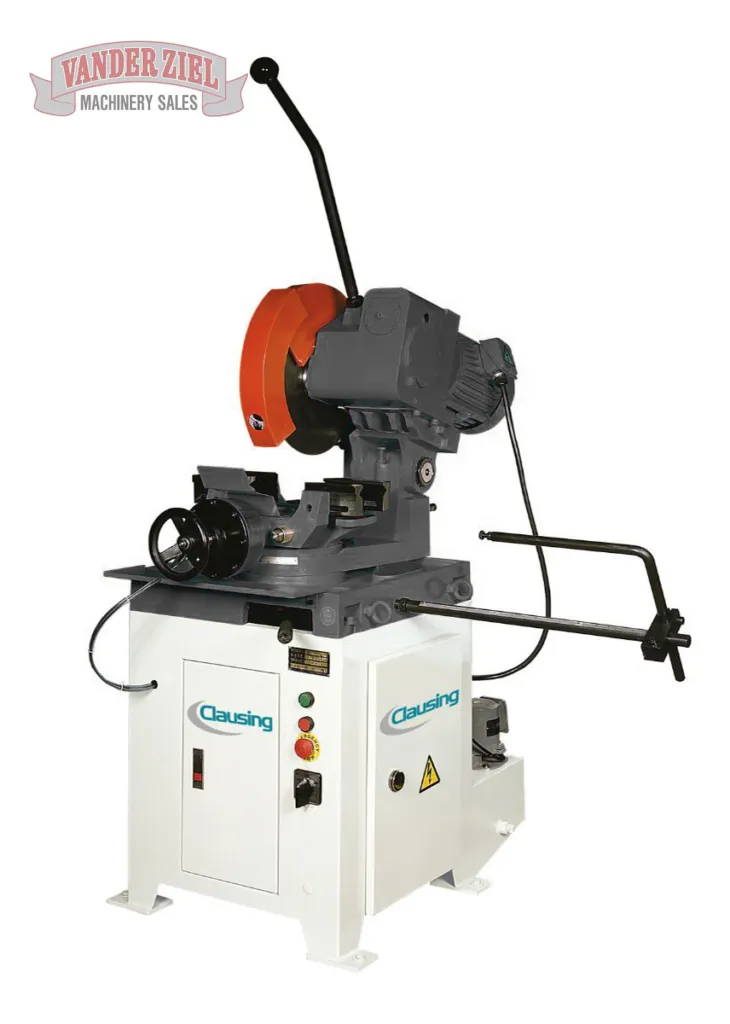

Clausing Kalamazoo 14" Manual Ferrous Cold Saw, Model FHC350D - NEW
Clausing Kalamazoo 14" Manual Ferrous Cold Saw, Model FHC350D - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0719000
Standard Features...
- 230v/460v/60/3 Electricals
- Triger Operated On Off in Handle Grip
- Totally Enclosed Fan-Cooled Motor
- Enclosed Worm Gear Drive for Trouble-free Operation
- Two Speeds for Versatility
- Cast Iron Construction
- Self-Centering Vise with Angle Scale
- Head Rotates 45 Degrees Left and Right of Center
- Flood Coolant System
- Heavy Duty Sheet Metal Base
- Adjustable Stock Stop
- Tool Kit
- Circular Saw Blade
- Operation and Maintenance Manual
- Two (2) Year Limited Warranty
Specifications
| Model | FHC350D |
| Drive Motor | 2/3 Hp (1.4/2.2kw) |
| Angles (left & right) | 45° |
| Electricals | 230v. or 460v. - 3ph |
| Control | 110v. |
| Coolant | Standard |
| Spindle Speeds | 26/52 rpm |
| Max. Blade Size | 10-14" (250-350mm) |
| Max. Vise Opening | 6" (152mm) |
| Recommended Cutting Capacity | |
| Round tube @ 90° | 4.33" (110mm) |
| Round tube @ 45° | 2.95" (75mm) |
| Square tube @ 90° | 4.33" (110mm) |
| Square tube @ 45° | 3.54" (90mm) |
| Rectangular tube @ 90° | 4.33" x 3.54" (110 x 90mm) |
| Rectangular tube @ 45° | 4.33" x 2" (110 x 50mm) |
| Round solid @ 90° | 2.36" (60mm) |
| Round solid @ 45° | 2" (50mm) |
| Square solid @ 90° | 2" (50mm) |
| Square solid @ 45° | 1.77" (45mm) |
| Dimensions | |
| Machine Dimensions LxWxH | 55" x 41" x 75" (1400 x 1050 x 1900mm) |
| Shipping Dimensions LxWxH | 30" x 42" x 60" (750 x 1060 x 1510mm) |
| Net Weight | 660 lbs. (300kg) |
| Shipping Weight | 792 lbs. (360kg) |
REF: 000293
