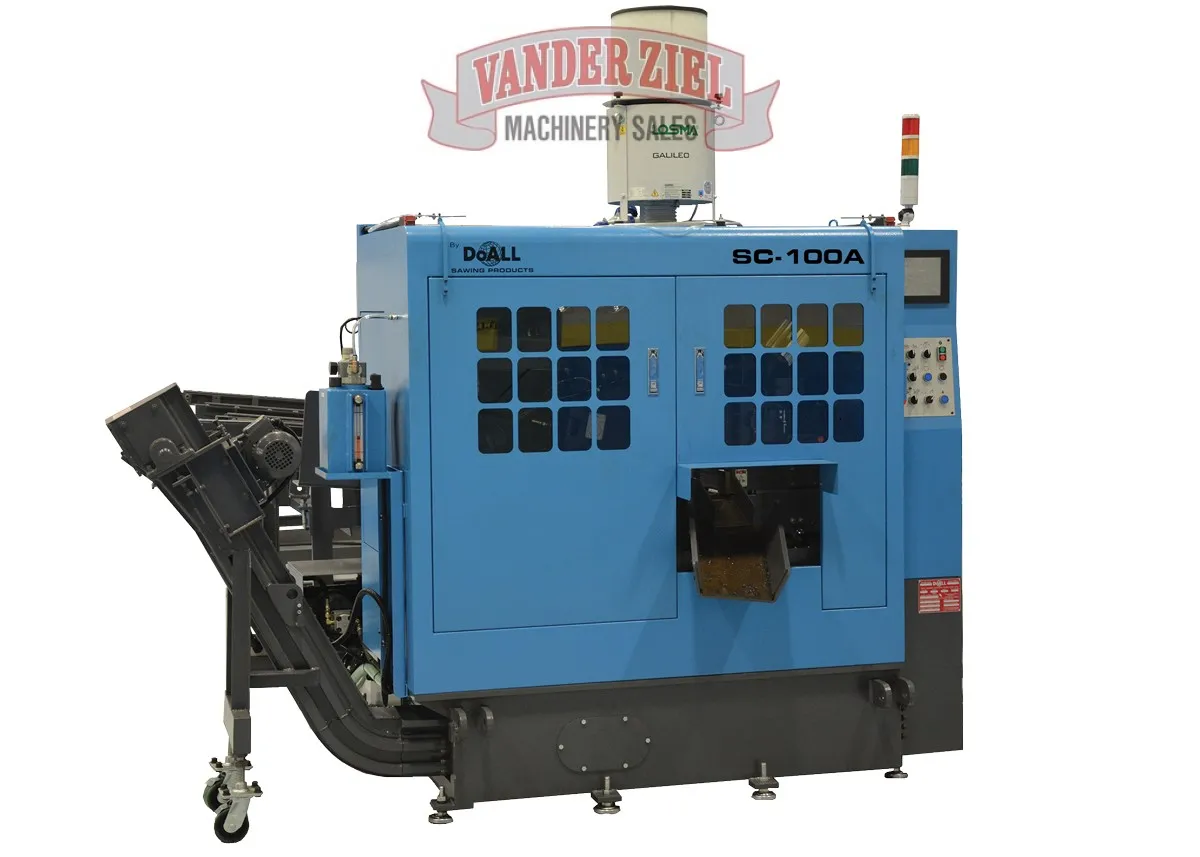

DoAll 14" Automatic Cold Saw, Model SC-100A - NEW
DoAll 14" Automatic Cold Saw, Model SC-100A - NEW
SKU # 1119001
Machine Capacity: 0.39" - 3.15" (10-80 mm)
Production Level: High
The DoALL SC-100A circular saw offers automatic operation, numerical control and features solid heavy-duty construction which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. This circular cut off or cold saw is designed for cutting a wide range of metals on a production basis.
- Cutting Capacity Round: 0.39" H x 4.0" (10 x 102 mm)
- Cutting Capacity Rectangle: 0.39-3.15" x 0.39-3.15" (10-80 x 10-80 mm)
- Blade Motor: 15 HP (11.1 kW)
- Hydraulic Pump Motor: 3 HP (2.23 kW)
- Blade Speed: 30 - 150 rpm (9-45mpm)
- Blade Size: 14.2" x 0.102" x 0.089" (360 x 2.6 x 2.25mm)
- Feed System: Servo Motor and Ball Screw
- Automatic Feed Length Single: 0.24"- 24" (6-600 mm)
- Automatic Feed Length Multiple: 118" - 236" (3,000 - 6,000 mm)
- Minimum Butt End: 4.2" (61mm)
- Cooling: Air Compressed Oil Mist
- Machine Weight With Table: 7937 lbs. (3,600 kg)
- Floor Space - Machine With Table (LxW): 271" x 112" (6,890 x 2,850mm)
Standard Equipment
- PLC control for all electric and hydraulic functions
- Easy conversational HMI
- Infinitely variable blade speed controlled by inverter
- Hydraulic front & vertical vises
- Floating shuttle device
- Hydraulic sorting chute
- Electro-magnetic power brake
- Automatic chip conveyor
- Powered band brush
- Air blow device for tube cutting
- Automatic loading table for round bar
- Cutting mist oil - 5 Gallons
- Work light
- Set up tools and tool box
- Instruction and parts manuals on CD
REF: 000457
