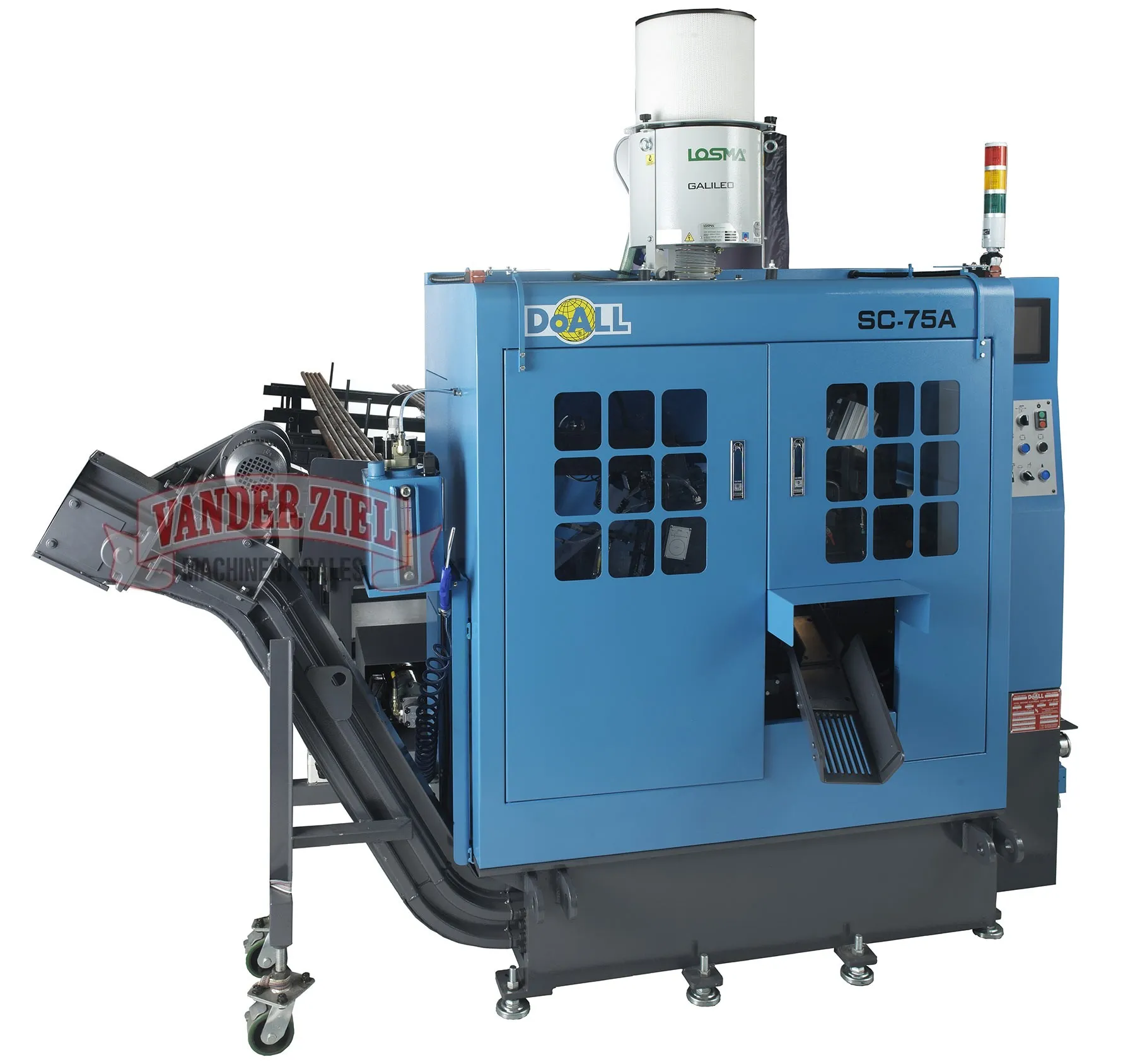

DoAll 11" Automatic Cold Saw, Model SC-75A - NEW
DoAll 11" Automatic Cold Saw, Model SC-75A - NEW
SKU # 1119000
Machine Capacity: 0.3-2.36" (8-60mm)
Production Level: High
The DoALL SC-75A circular saw offers automatic operation, numerical control and features solid heavy-duty construction which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life. This automatic cut off, cold saw is designed for cutting a wide range of metals on a high production basis.
- Cutting Capacity Round: 0.3" - 3" (8 - 75mm)
- Cutting Capacity Rectangle: 0.3-2.36" x 0.3-2.36" (8-60x8-60mm)
- Blade Motor: 10 HP (7.5 kW)
- Hydraulic Pump Motor: 2 HP (1.47 kW)
- Blade Speed: 30 - 150 rpm
- Blade Length: 11.2" (285mm)
- Blade Width: 0.079" x 0.069" (2x1.75mm)
- Feed System: Servo Motor and Ball Screw
- Automatic Feed Length Single: 0.24" to 24" (6-600mm)
- Automatic Feed Length Multiple: 118" to 236" (3000-6000mm)
- Cooling: Air Compressed Oil Mist
- Machine Weight With Table: 6173 lbs. (2800 kg)
- Floor Space Machine With Table (LxW): 267" x 109" (6,755x2,765mm)
Standard Equipment:
- PLC control for all electric and hydraulic functions
- Easy conversational HMI
- Infinitely variable blade speed controlled by inverter
- Hydraulic front & vertical vises
- Floating shuttle device
- Hydraulic sorting chute
- Electro-magnetic power brake
- Automatic chip conveyor
- Powered band brush
- Air blow device for tube cutting
- Automatic loading table for round bar
- Cutting mist oil - 5 Gallons
- Work light
- Set up tools and tool box
- Instruction and parts manuals on CD
REF: 000456
Similar Machines
Browse All Equipment Listings
Used
Generic
VZMS HQ (Alto)
Kalamazoo 14" Automatic Cold Saw, Model FA350A
Asset #: 11726I
Call for Price
Used
Haberle
VZMS HQ (Alto)
Haberle Cold Saw
Asset #: 16689I
Call for Price
New
Marvel Manufacturing

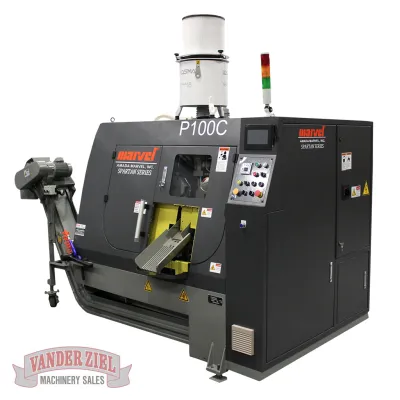

Marvel Spartan 14" Automatic Circular Saw, Model P-100C - NEW
