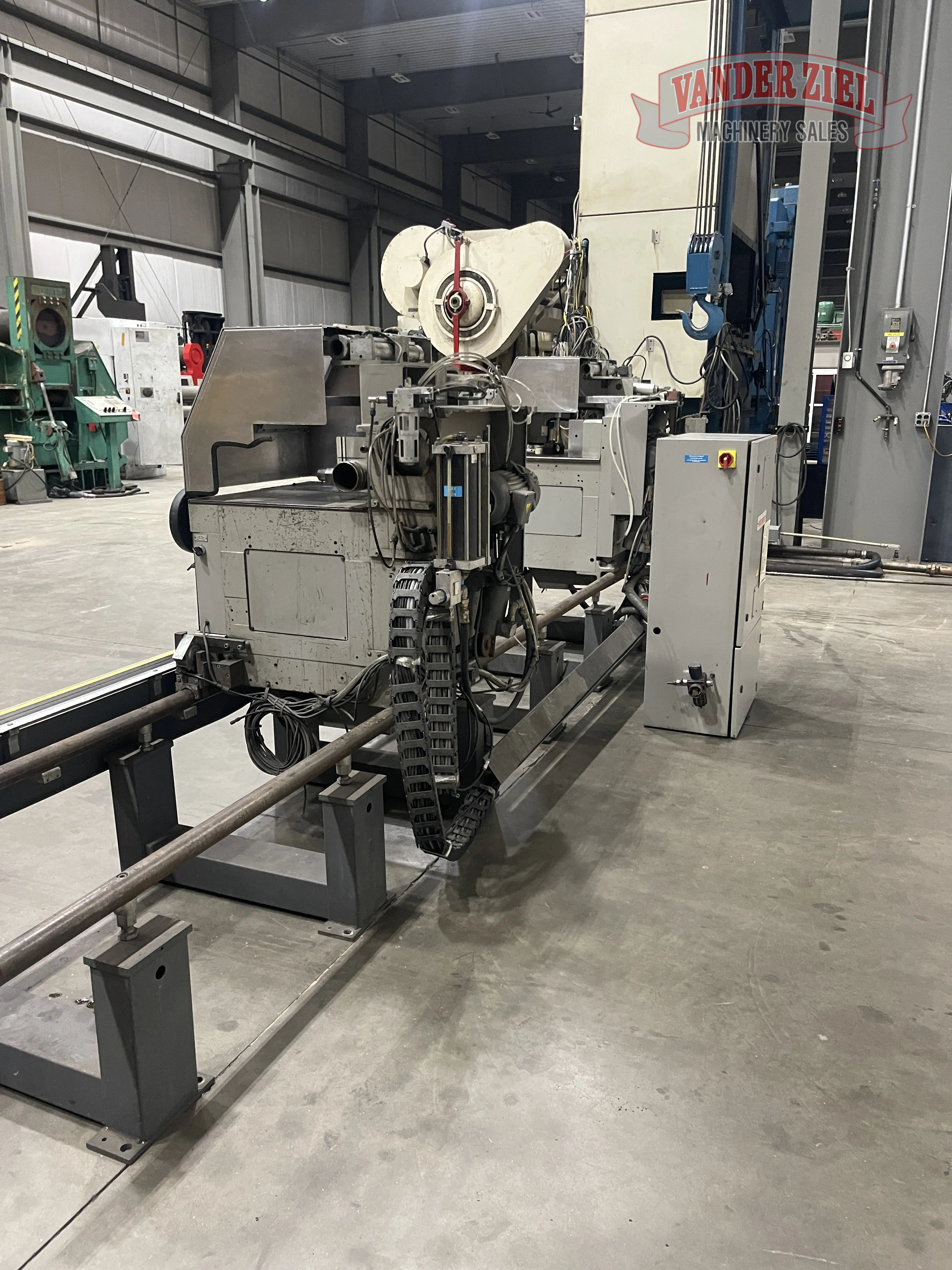

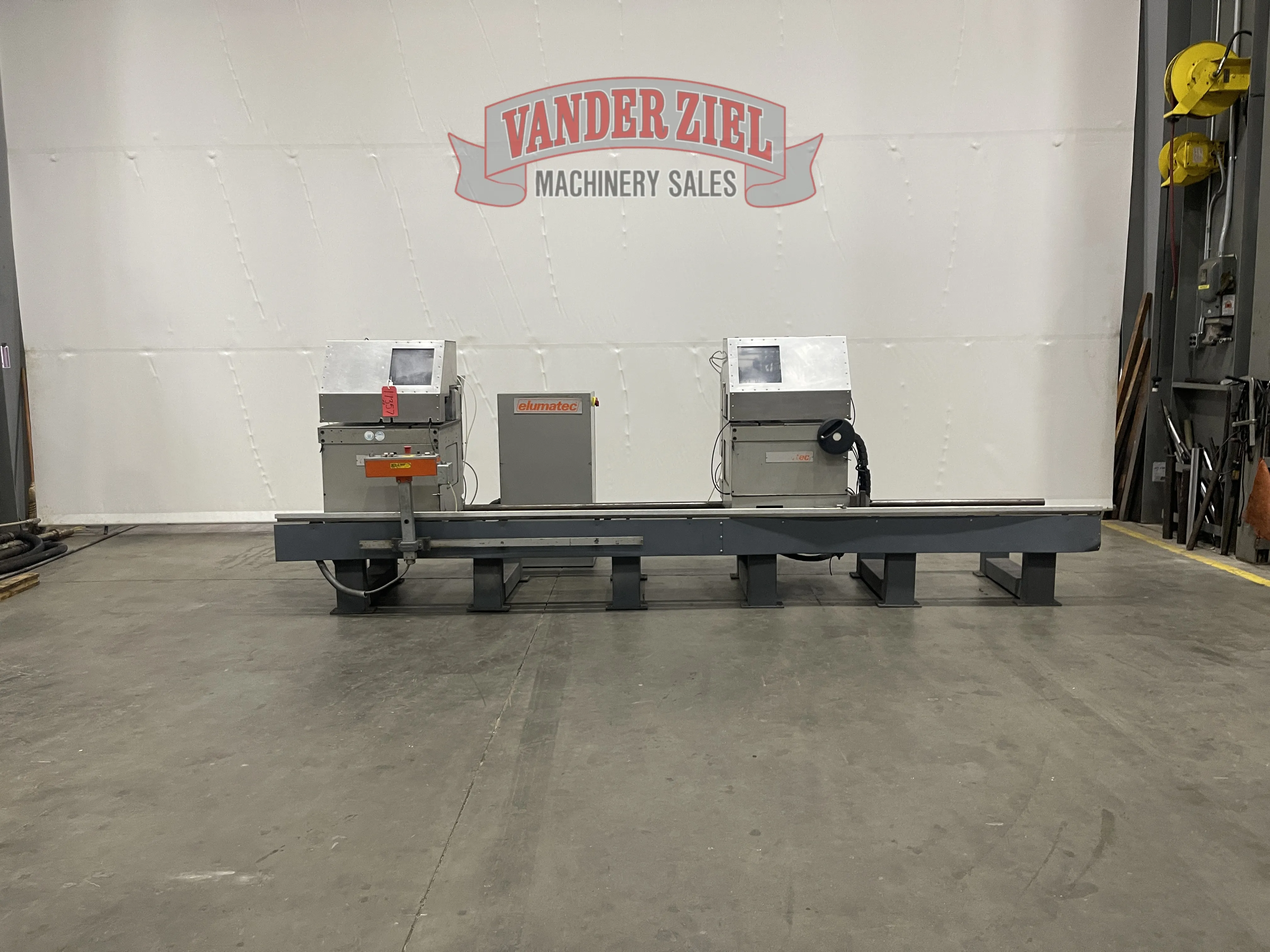

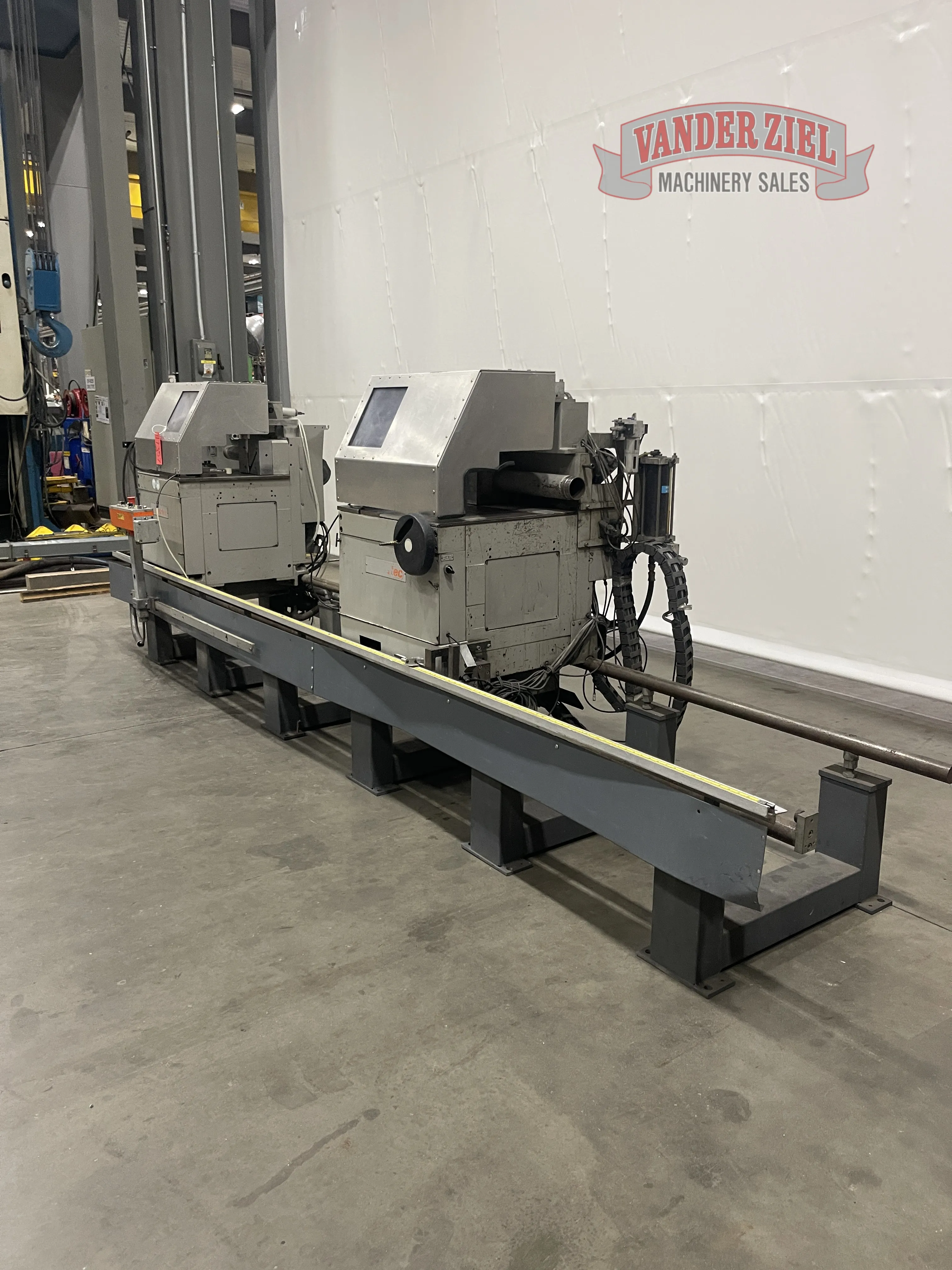

Elumatec 13.75" Double Miter Saw, Model DG 142

Elumatec 13.75" Double Miter Saw, Model DG 142

Asset # 17357
Serial # 20 361

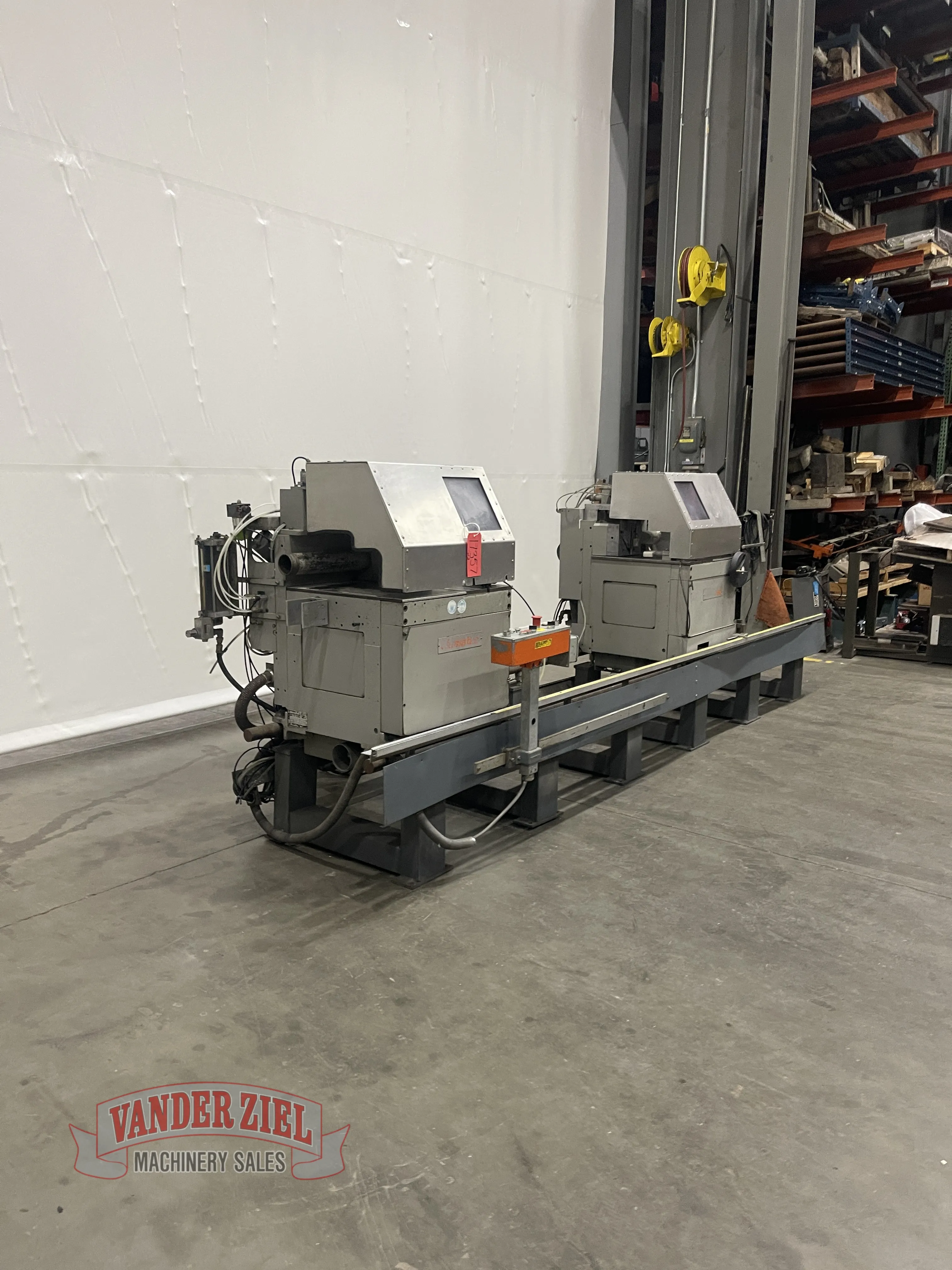

This high quality miter saw is designed for PVC and ALUMINUM profiles and can handle profiles from 13-3/4" (350 mm) to 133.8" (3,400 mm) with automatic positioning of the saw heads through linear guides.

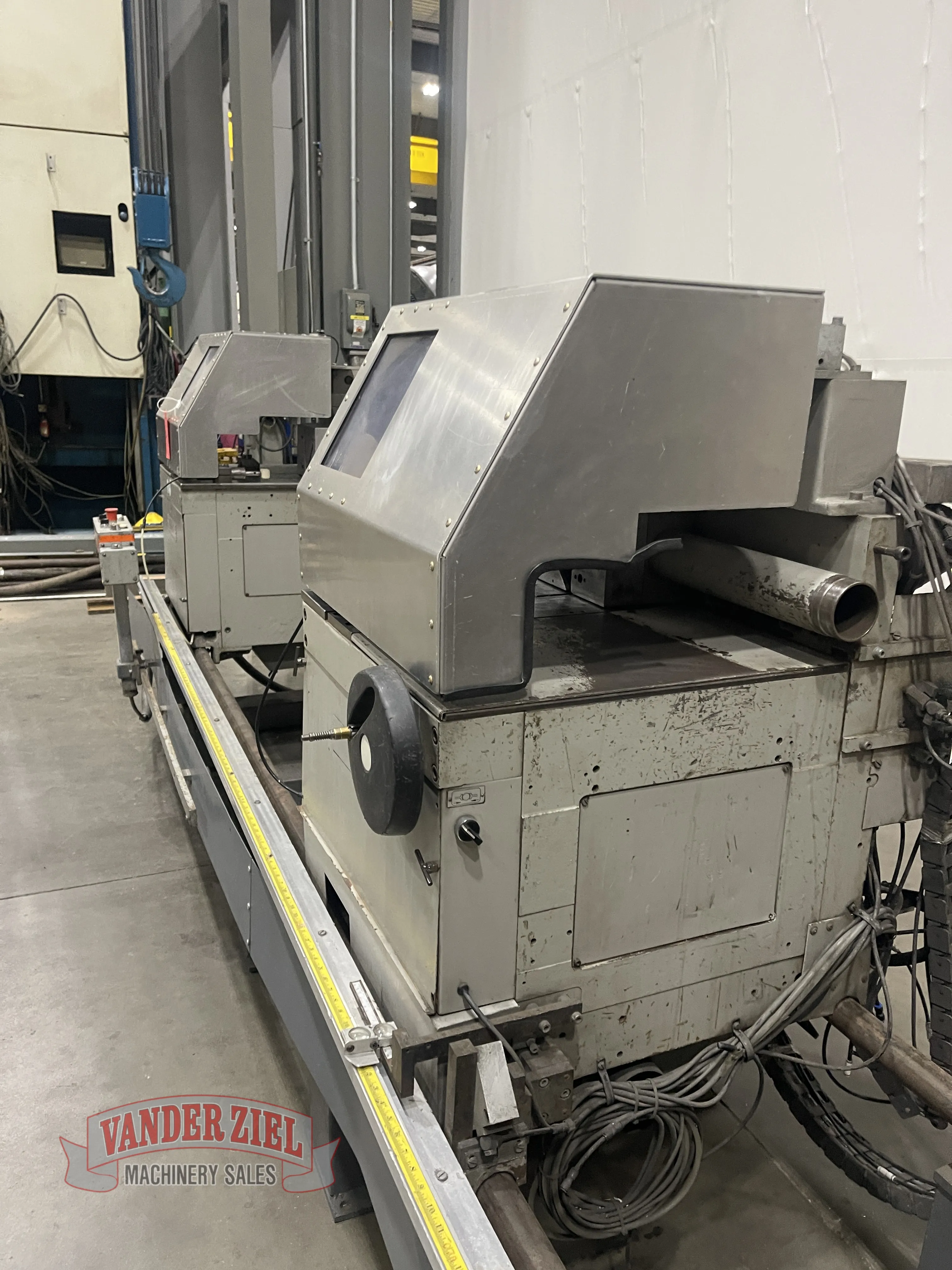

The fixed head is on the left. Motorized saw head adjustment with fixed settings at 20° / 45° / 90° and 45° through "E 255" electronic positioner, saw blade dia. 19-11/16" (500 mm).

Specifications:
• Cutting bed length: 3400 mm (133.8")
• Min. cutting length at 90°: 370 mm
• Min. cutting length tilted at: 45°: 370 mm
• Tilting range inwards: 90° - 45°

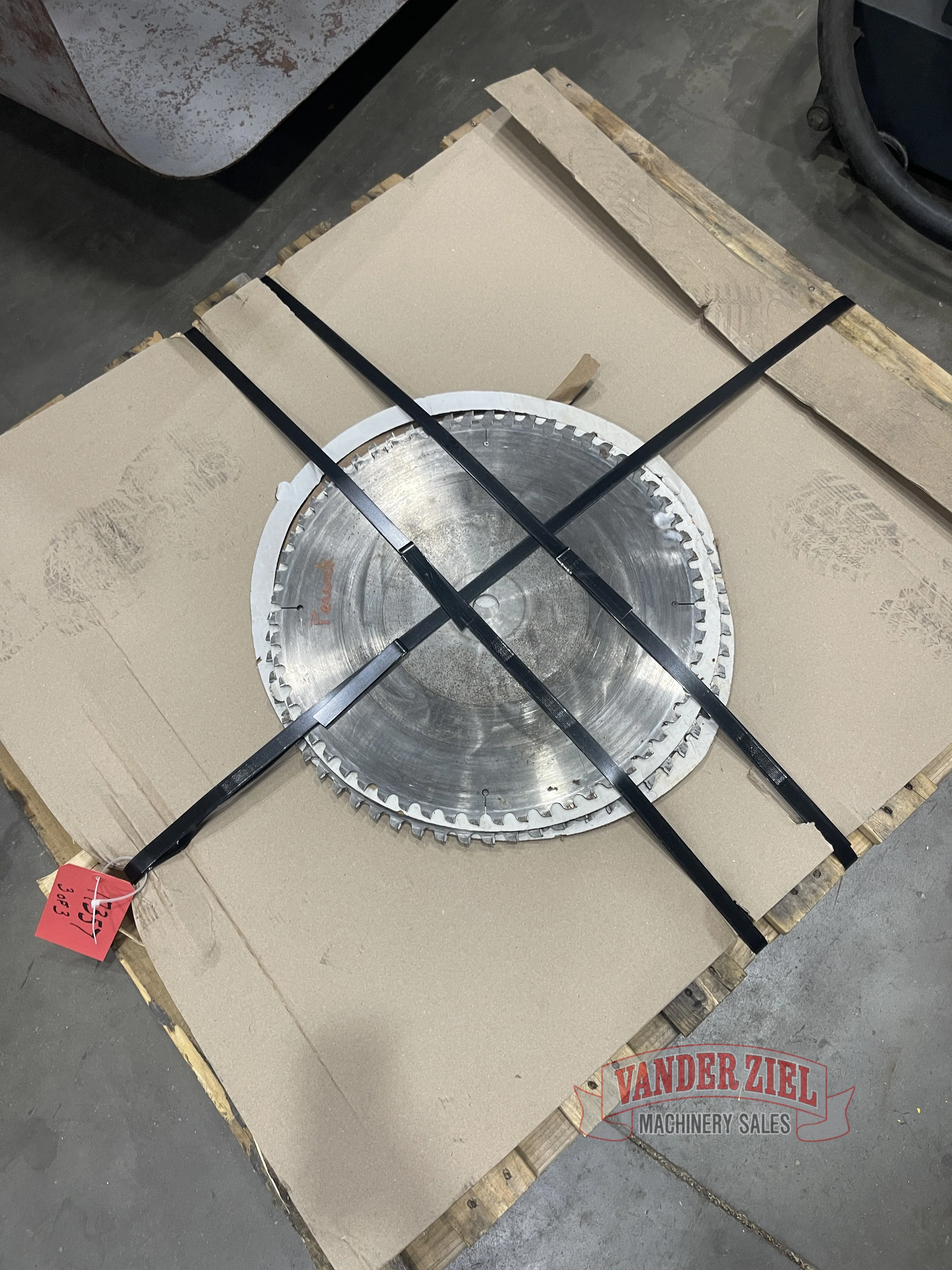

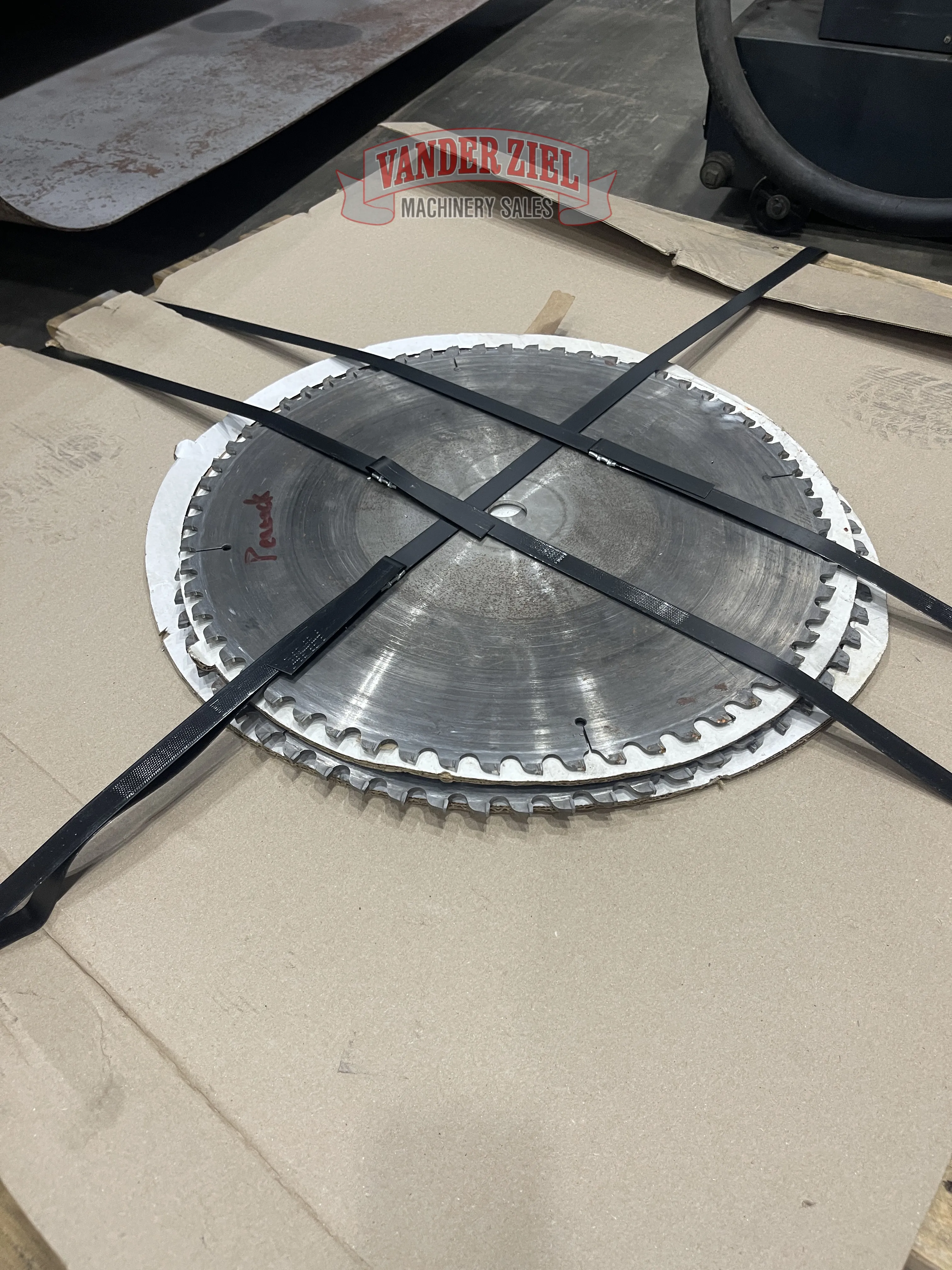

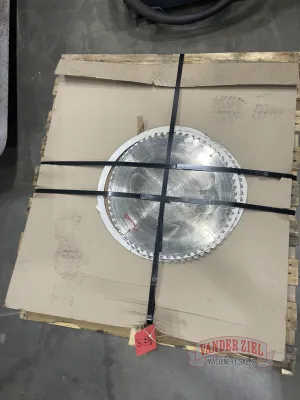

• Saw blade dia.: 500 mm (19-11/16")
• Saw blade speed: 2,800 RPM
• External-dimension cuts possible for all cutting variants
• Ideal machine for high-volume series production when cutting at 90° and 45°
Dimensions: 4880 x 1500 x 1400 mm ( (232" x 59" x 55")
Weight: 1430 kg (3,155 Lbs)

Preliminary Specifications - Subject to Verification
