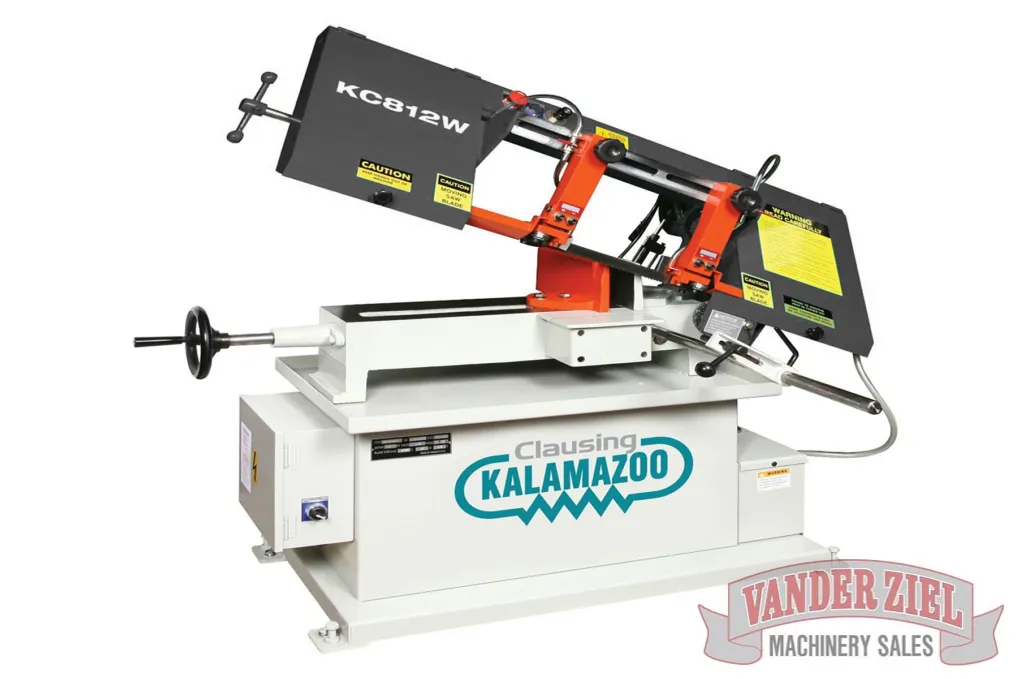

Clausing Kalamazoo 8" x 12" Wet Horizontal Saw, Model KC812W - NEW
Clausing Kalamazoo 8" x 12" Wet Horizontal Saw, Model KC812W - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720000
Standard Features...
- 1 Hp (.75kw) drive motor with magnetic starter and overload protection
- 4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
- Totally enclosed transmission
- Heavy-duty hydraulic cylinder with precision ground hinge support
- Pan shaped base with built-in coolant & hydraulic system
- Cast iron bed
- Carbide blade guides with roller bearings
- Two additional bearings to support blade from the top
- Integral coolant system
- Blade brush
- Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
- Adjustable stock stop
- Simplified control switches mounted on saw head
- Cast iron quick acting 0°- 45° vise with manual leadscrew clamping system
- Anti-slip hand wheel
- Easy blade change with front access at waist level
- 1" wide bi-metal saw blade
- Tool box, leveling pads and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
| Type | Horizontal wet cut |
| Drive Motor | 1 Hp (.75kw) 110v or 220v 1 Ph |
| Band Wheel Diameter | 11.5" (292mm) Flanged, Cast Iron |
| Blade Size | 1" x .035" x 8'-11" (27 x .9 x 2720mm) |
| Bed Height | 24.8" (639mm) |
| Blade Speeds (4) | 59, 96, 155, 260 fpm (18, 29, 47, 79 m/min) |
| 90° Cutting Capacity | |
| Round | 8" (190mm) |
| Square | 7" (180mm) |
| Rectangular (H x W) | 7" x 14" (180 x 355mm) |
| 45° Cutting Capacity | |
| Round | 7.5" (200mm) |
| Square | 6" (152mm) |
| Rectangular (H x W) | 6" x 9" (152 x 228mm) |
| Width | 59" (1500mm) |
| Depth | 24.6" (625mm) |
| Height (head-up) | 63" (1600mm) |
| Height (head-down) | 45" (1150mm) |
| Net Weight | 484 lbs (220kg) |
| Shipping Weight | 580 lbs (263kg) |
| Shipping Dim. (LxWxH) | 58" x 30" x 48" (1475 x 762 x 1220mm) |
REF: 000271
