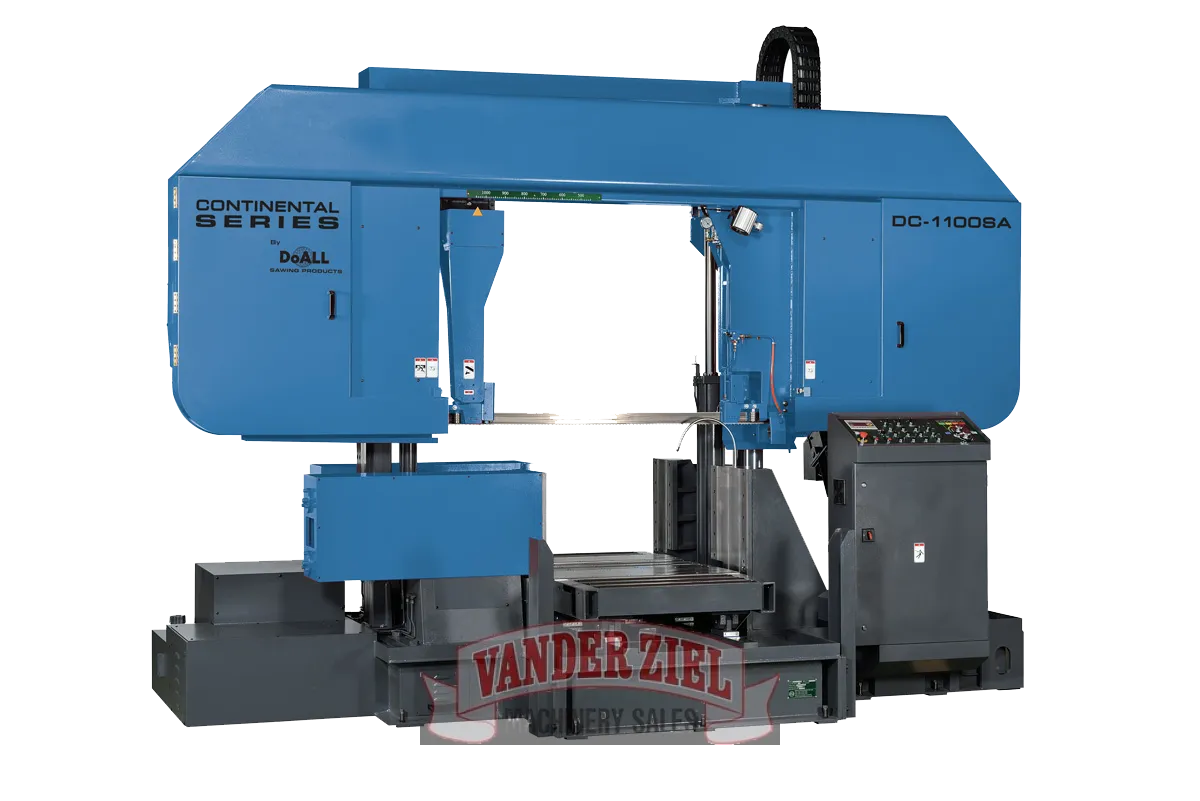

DoAll 43.5" x 43.5" Dual Column Semi-Automatic Horizontal Saw, Model DC-1100SA - NEW
DoAll 43.5" x 43.5" Dual Column Semi-Automatic Horizontal Saw, Model DC-1100SA - NEW
SKU #1120026
Machine Capacity: 43-1/2 x 43-1/2" (1100x1100mm) | Round: 43-1/2"
Production Level: High
The DC-1100SA Dual Column, Semi-Automatic Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.
- Cutting Capacity Round: 43.3" (1100mm)
- Cutting Capacity Rectangle: 43.3 x 43.3" (1100x1100mm)
- Band Saw Blade (L x W x Gage): 394 x 2.64 x 0.063" (10000x67x1.6mm)
- Band Speed: 49-262 FPM (15 - 80 m/min)
- Band Drive: 15 hp (11.1kW)
- Hydraulic Pump: 3 hp (2.2kW)
- Hydraulic Tank Capacity: 23.8 gal (90 L)
- Coolant Pump: 1/4 hp (0.2 kw)
- Coolant Tank Capacity: 53 gal (200 L)
- Material Pass Line Height: 26.8" (680 mm)
- Machine Weight: 30865 lbs (14000 kg)
- Dimensions W x L x H: 181.1 x 94.5 x 128" (2400 x 4600 x 3250 mm)
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- One set of 6-foot (2-meter) roller stands
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000480
