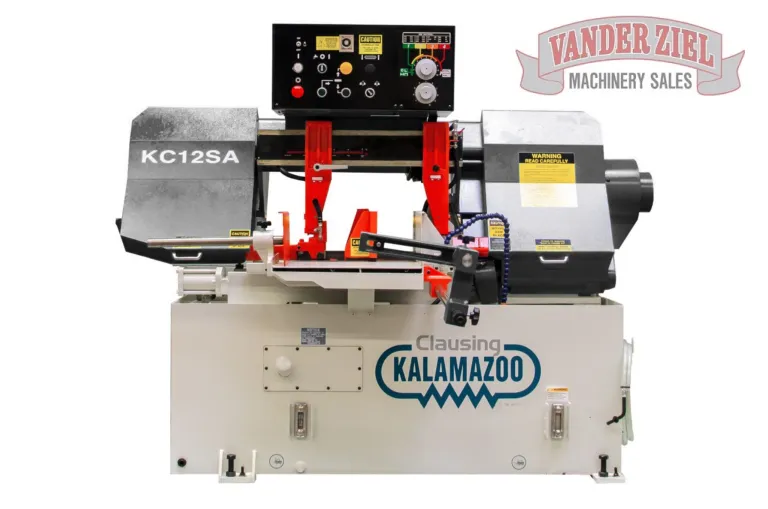

Clausing Kalamazoo 12.75" x 12.6" Semi-Automatic Horizontal Saw, Model KC12SA - NEW
Clausing Kalamazoo 12.75" x 12.6" Semi-Automatic Horizontal Saw, Model KC12SA - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720004
Standard Features...
- 5 Hp 230/460v 3 ph drive motor
- Semi-automatic operation
- Infinitely variable blade speeds
- LED blade speed readout
- Vise clamps work piece both sides of blade
- Powered hydraulic down feed
- Automatic height setting feature
- Auto shutoff at end of cuts
- Blade breakage/stoppage switch
- 110v control circuit
- Overload protection
- Recirculating coolant system
- (1) general purpose bi-metal blade
- (1) gallon coolant
- Flushing hose for cleanup
- Operator's manual
- Two (2) year limited warranty
| Motor | 5 Hp (3.75 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 1 Hp (.75 kw) |
| Hydraulic Oil Capacity | 6.5 gallons (25 liters) |
| Band Wheel Dia. | 16" (406mm) |
| Blade Speeds (Variable speed) | 95-395 fpm (30-120 m/min) |
| Blade Size | 1.25"x.042"x12'-6" (32x1x3810mm) |
| Coolant | Recirculating |
| Coolant Capacity | 10 gallons (39 liters) |
| 90° Cutting Capacity | |
| Round | 12.75" (325 mm) |
| Rectangular | 12.75" x 12.6" (325 x 320mm) |
7.9" x 14.2" (200 x 360mm) | |
| **Bundle Cutting Width | 6.5" to 10" (165 to 254mm) |
| **Bundle Cutting Height | 2" to 8" (51 to 203mm) |
| Length | 32" (812 mm) |
| Width | 75" (1905 mm) |
| Height (head-down) | 57" (1449 mm) |
| Height (head-up) | 67" (1702 mm) |
| Bed Height | 26" (660 mm) |
| Net Weight | 1,540 lbs (698 kg) |
| Shipping Weight | 1,760 lbs (798 kg) |
| *Other voltages optional. | |
REF: 000275
Similar Machines
Browse All Equipment Listings
New
Ellis
VZMS HQ (Alto)

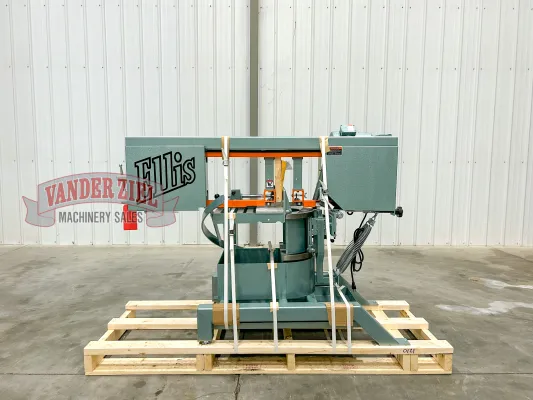

Ellis 11" x 10" Horizontal Saw, Model 1800 - NEW
