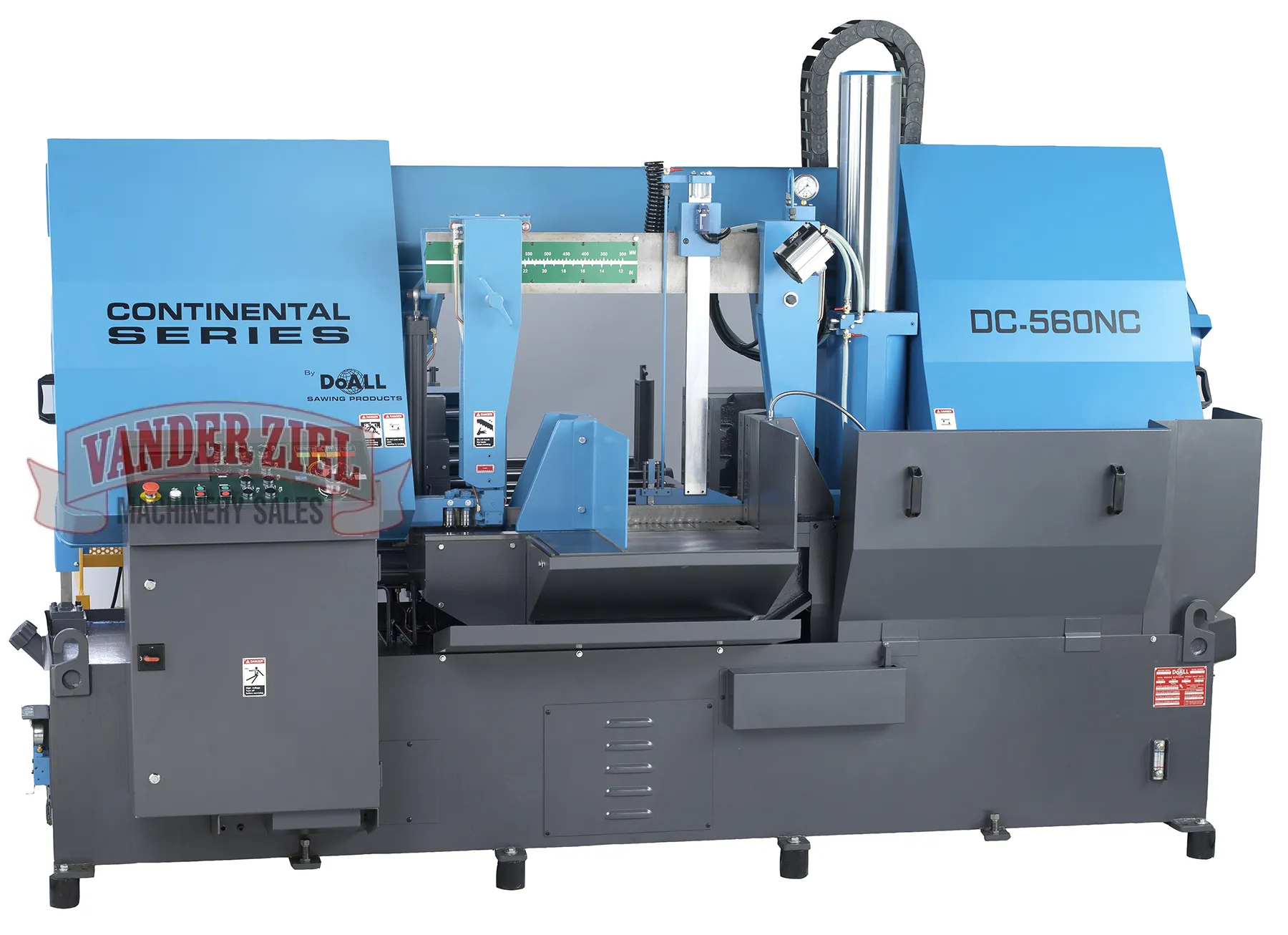

DoAll 24" x 22" Production Horizontal Saw, Model DC-560NC - NEW
DoAll 24" x 22" Production Horizontal Saw, Model DC-560NC - NEW
SKU #1120018
Machine Capacity: 24 x 22" (610x560mm) | Round: 22" (560mm)
Production Level: High
The DC-560NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 22" (560mm)
- Cutting Capacity Rectangle: 24 x 22" (600x560mm)
- Bundle Capacity Maximum: 19-7/8 x 8-7/8" (505x225mm)
- Bundle Capacity Minimum: 9-7/8 x 5-3/4" (250x145mm)
- Band Saw Blade (LxWxGage): 260 x 2 x 0.05" (6604x51x1.3mm)
- Band Speed: 72 - 390 SFPM (22 - 120 m/min)
- Band Drive: 10 hp (7.45kW)
- Hydraulic Pump: 3 hp (2.3kW)
- Hydraulic Tank Capacity: 34 Gal. (130 Liters)
- Coolant Tank Capacity: 37 Gal. (140 Liters)
- Automatic Index Length Single: 15.75" (400mm)
- Automatic Index Length Multiple: 141.73" (3600mm)
- Material Pass Line Height: 33-1/2" (850mm)
- Machine Weight: 9260 lbs. (4200kg)
- Floor Space Required: 127 x 84 x 85" (3210x2135x2160mm)
Standard Equipment:

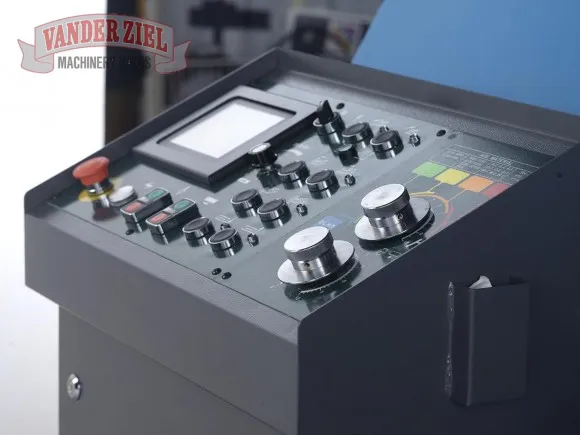

- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control

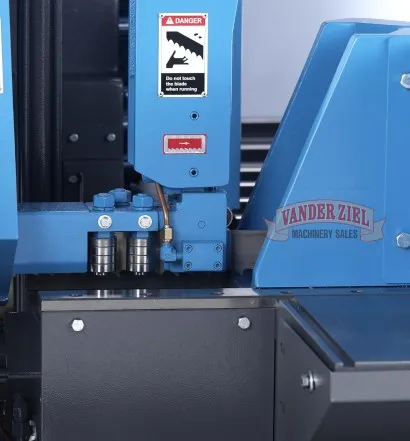

- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000473
