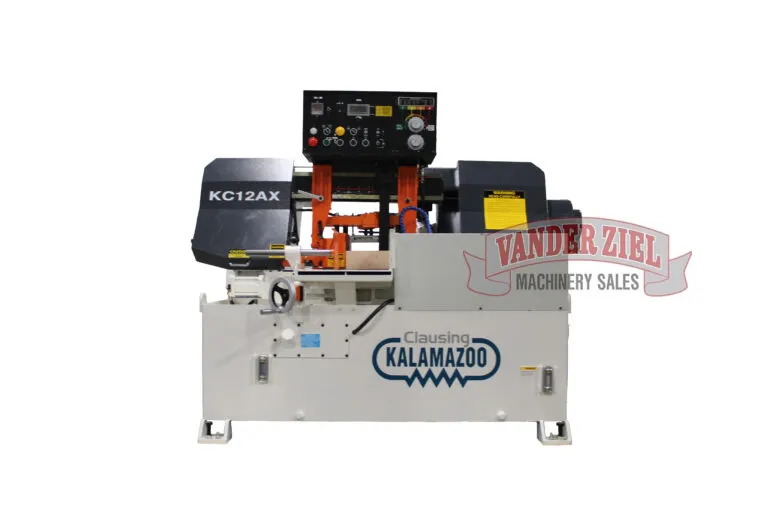

Clausing Kalamazoo 12.7" x 14" Semi-Automatic Horizontal Saw, Model KC12AX - NEW
Clausing Kalamazoo 12.75" x 12.6" Semi-Automatic Horizontal Saw, Model KC12AX - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720005
Standard Features...
- Full or semi-automatic operation
- Infinitely variable blade speeds
- LED blade speed readout
- Vise clamps work piece both sides of blade
- Hydraulic down feed
- Automatic height setting feature
- Auto shutoff at end of material or after preset number of cuts
- Front-mounted digital length gauge
- Blade breakage/stoppage switch
- 110v control circuit
- Overload protection
- Recirculating coolant system
- Shuttle vise
- (1) General purpose bi-metal blade
- Flushing hose for cleanup
- Operator's manual
- Two (2) year limited warranty
| Motor | 5 Hp (3.75 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 1 Hp (.75 kw) |
| Hydraulic Oil Capacity | 6.5 gallons (25 liters) |
| Band Wheel Dia. | 16" (406mm) |
| Blade Speeds (Variable speed) | 95-395 fpm (30-120 m/min) |
| Blade Size | 1.25"x.042"x12'-6" (32x1x3810mm) |
| Coolant | Recirculating |
| Coolant Capacity | 10 gallons (39 liters) |
| 90° Cutting Capacity | |
| Round | 12.75" (300 mm) |
| Rectangular | 12.75" x 12.6" (300 x 320mm) |
7.9" x 14.2" (200 x 360mm) | |
| **Bundle Cutting Width | 6.5" to 10" (165 to 254mm) |
| **Bundle Cutting Height | 2" to 8" (51 to 203mm) |
| Feed Length/Index | 15.75" (400mm) |
| Max.Feed (9 times) | 141.75" (3600 mm) |
| Length | 76.5" (1943 mm) |
| Width | 76.5" (1943 mm) |
| Height (head-down) | 57" (1449 mm) |
| Height (head-up) | 73" (1854 mm) |
| Bed Height | 26" (660 mm) |
| Net Weight | 3,090 lbs (1388 kg) |
| Shipping Weight | 3,400 lbs (1542 kg) |
| *Other voltages optional. | |
REF: 000276
Similar Machines
Browse All Equipment Listings
New
Ellis
VZMS HQ (Alto)

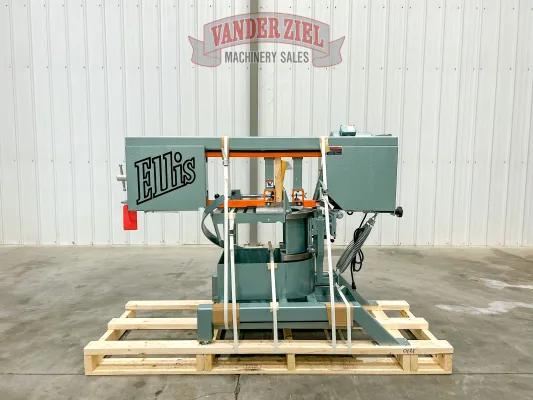

Ellis 11" x 10" Horizontal Saw, Model 1800 - NEW
Asset #: 15970N
$4,995
New
Dake
Dake 7" x 12" Horizontal Saw, Model SE712 - NEW
Asset #: 0920000N
$2,635
New
W.F. Wells

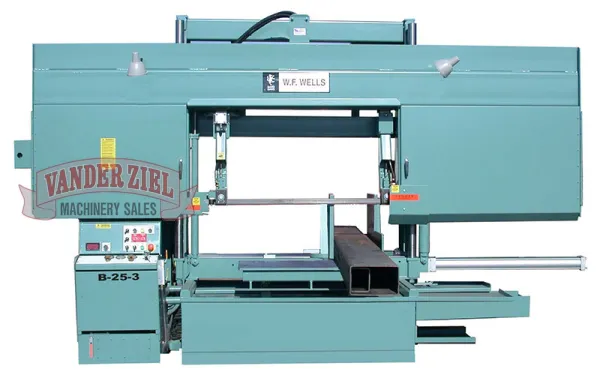

W.F. Wells 25" x 40" Semi-Automatic Horizontal Saw, Model B-25-3 - NEW
