Clausing Kalamazoo 16.5" x 27.5" Semi-Automatic Horizontal Saw Model H1628SA - NEW
Clausing Kalamazoo 16.5" x 27.5" Semi-Automatic Horizontal Saw Model H1628SA - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720013
Standard Features...
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Automatic shutoff at end of material or after preset number of cuts
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
| Motor | 7.5 Hp (5.5 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 1 Hp (.75 kw) |
| Hydraulic Oil Capacity | 13 gallons (50 liters) |
| Blade Speeds (Variable speed) | 66-328 fpm (20-100 m/min) |
| Blade Size (W x T x L) | 1.6" x .05" x 215" (41 x 1.3 x 5450mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 10.4 gallons (40 liters) |
| 90° Cutting Capacity | |
| Round | 16.5" (420mm) |
| Square | 16.5" (420mm) |
| Rectangular | 13.8" x 27.5" (350 x 700mm) |
| Length | 47" (1200mm) |
| Width | 108" (2750mm) |
| Height | 84.2" (2150mm) |
| Bed Height | 27.5" (700mm) |
| Net Weight | 4,250 lbs (1930 kg) |
| Shipping Weight | 5,940 lbs (2700 kg) |
REF: 000281
Similar Machines
Browse All Equipment Listings
New
Marvel Manufacturing

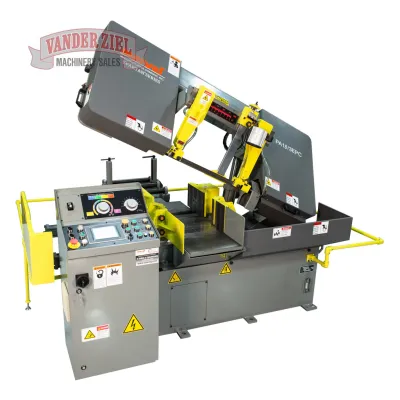

Marvel Spartan 18" x 18" Horizontal Scissor Saw with Programmable Controls, Model PA18-MPC - NEW
Asset #: 2320012N
$51,900
New
Amada
Amada Horizontal Scissor Style Saw Model HFA400W
Asset #: 04620100N
Call for Price
New
W.F. Wells

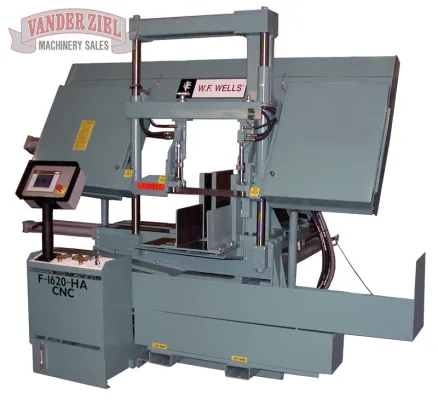

W.F. Wells 17" x 20" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-1620-HA CNC - NEW
