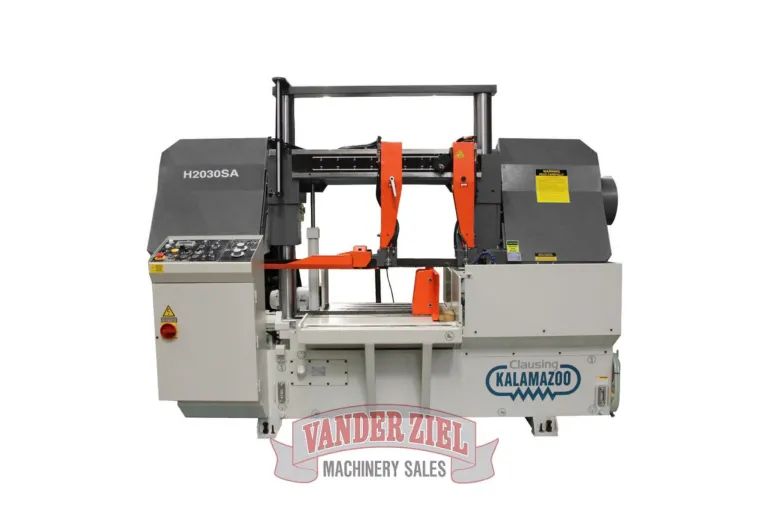

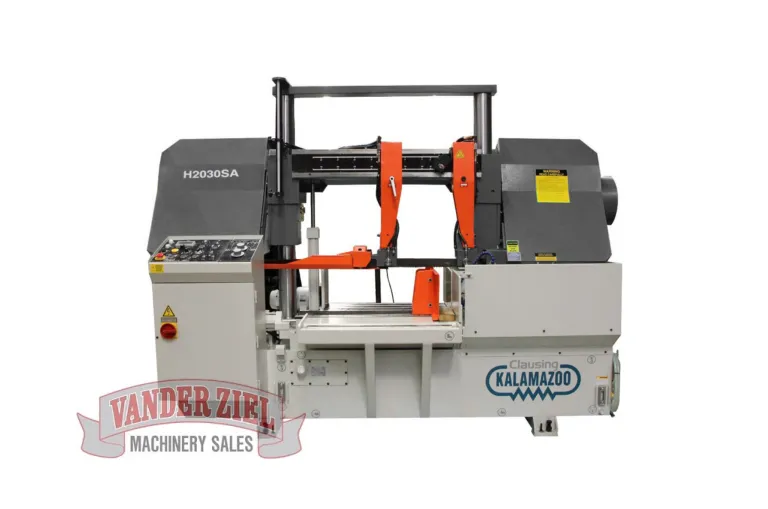

Clausing Kalamazoo 20" x 29.5" Semi-Automatic Horizontal Bandsaw, Model H2030SA - NEW

Clausing Kalamazoo 20" x 29.5" Semi-Automatic Horizontal Bandsaw, Model H2030SA - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720015
Standard Features...
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Automatic shutoff at end of material or after preset number of cuts
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
| otor | 7.5 Hp (5.5 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 2 Hp (.75 kw) |
| Hydraulic Oil Capacity | 10 gallons (40 liters) |
| Blade Speeds (Variable speed) | 66-328 fpm (20-100 m/min) |
| Blade Size (W x T x L) | 2" x .063" x 238 " (54 x 1.6 x 6040mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 21.5 gallons (85 liters) |
| 90° Cutting Capacity | |
| Round | 20" (500mm) |
| Square | 20" (500mm) |
| Rectangular | 20" x 29.5" (500 x 750mm) |
| Length | 55.5" (1410mm) |
| Width | 124" (3150mm) |
| Height | 79" (2010mm) |
| Bed Height | 27.5" (700mm) |
| Net Weight | 4,620 lbs (2100 kg) |
| Shipping Weight | 5,720 lbs (2600 kg) |
REF: 000283
