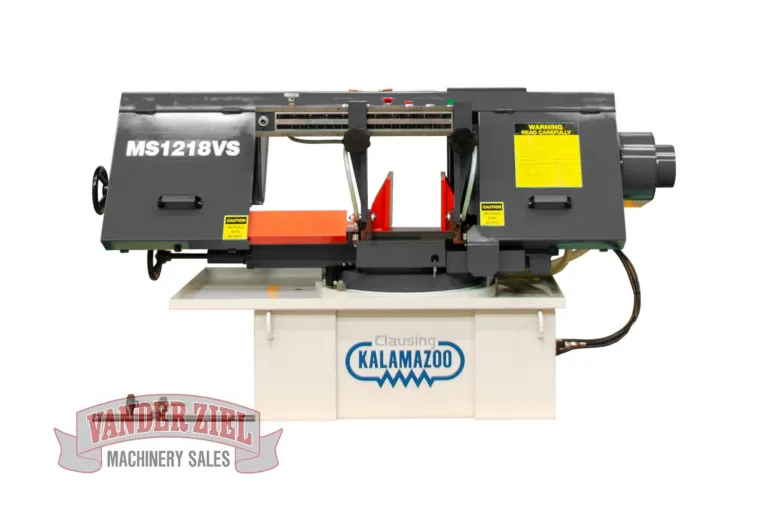

Clausing Kalamazoo 12" x 18" Wet Semi-Automatic Horizontal Saw, Model MS1218VS

Clausing Kalamazoo 12" x 18" Wet Semi-Automatic Horizontal Saw, Model MS1218VS
Prices subject to change every 10 days due to economic changes please call us to verify the price!
SKU #0720002
Standard Features...
- 0°-45° Miter cutting, make angle cuts without swinging material to be cut
- 2 Hp (1.5kw) main drive with magnetic starter and overload protection
- Variable speed drive
- 230/460v 60 cycle 3 phase electricals
- Recirculating coolant system with application through both guides
- Solid carbide blade guides with rollers
- Quick position vise
- Automatic shut-off at end of cut
- Totally enclosed transmission
- Blade cleaning brush
- Cast iron bed
- 1" (254mm) wide blade
- Stock stop
- Easily adjusted head feed with power lift
- Two (2) year limited warranty
| Drive Motor | 2 Hp (1.5kw) 230/460v 3 phase |
| Hydraulic Motor | 0.25 Hp (.19kw) |
| Coolant Pump | 0.125 Hp (.1kw) |
| Band Wheel Dia. | 15.4" (391mm) |
| Blade Size | 1" x .035" x 11'-4.5" |
| (25 x .9 x 3467mm) | |
| Bed Height | 21.75" (552mm) |
| Vise Opening | 18" (457mm) |
| Blade Speeds | 80-360 fpm (24-110 m/min) |
| variable speed | |
| 90° Cutting Capacity | |
| Round | 12" (305mm) |
| Square | 10" x 10" (254 x 254mm) |
| Rectangular | 10" x 16" (254 x 406mm) |
| 45° Cutting Capacity | |
| Round | 8" (203mm) |
| Square | 8" x 8" (203 x 203mm) |
| Rectangular | 8" x 12" (203 x 305mm) |
| Width | 75" (1905mm) |
| Depth/with stock stop | 34"/49.5" (864/1257)mm) |
| Height (head-up) | 64" (1626mm) |
| Height (head-down) | 41" (1041mm) |
| Net Weight | 880 lbs (400kg) |
| Shipping Weight | 1,100 lbs (500kg) |
REF: 000273
Similar Machines
Browse All Equipment Listings
New
Ellis
VZMS HQ (Alto)
Ellis 13″ x 16″ Horizontal Saw, Model 4000 – NEW
Asset #: 17540N
$7,195

New
Clausing
Clausing Kalamazoo 13" x 18" Semi-Automatic Swivel Horizontal Saw, Model MS1318SA - NEW
Asset #: 0720003N
Call for Price

Used
Generic
VZMS HQ (Alto)
Kalamazoo Horizontal Saw - Model 13AW
Asset #: 17388I
Call for Price

New
W.F. Wells

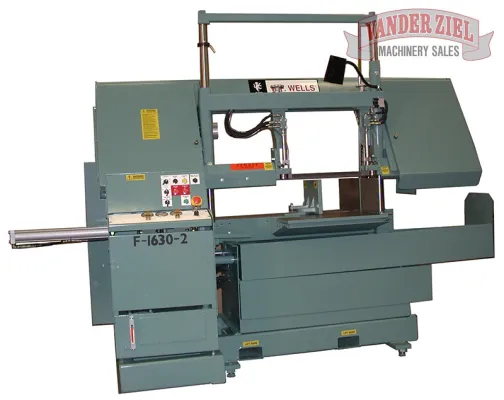

W.F. Wells 16" x 30" Semi-Automatic Horizontal Saw, Model F-1630-2 - NEW
