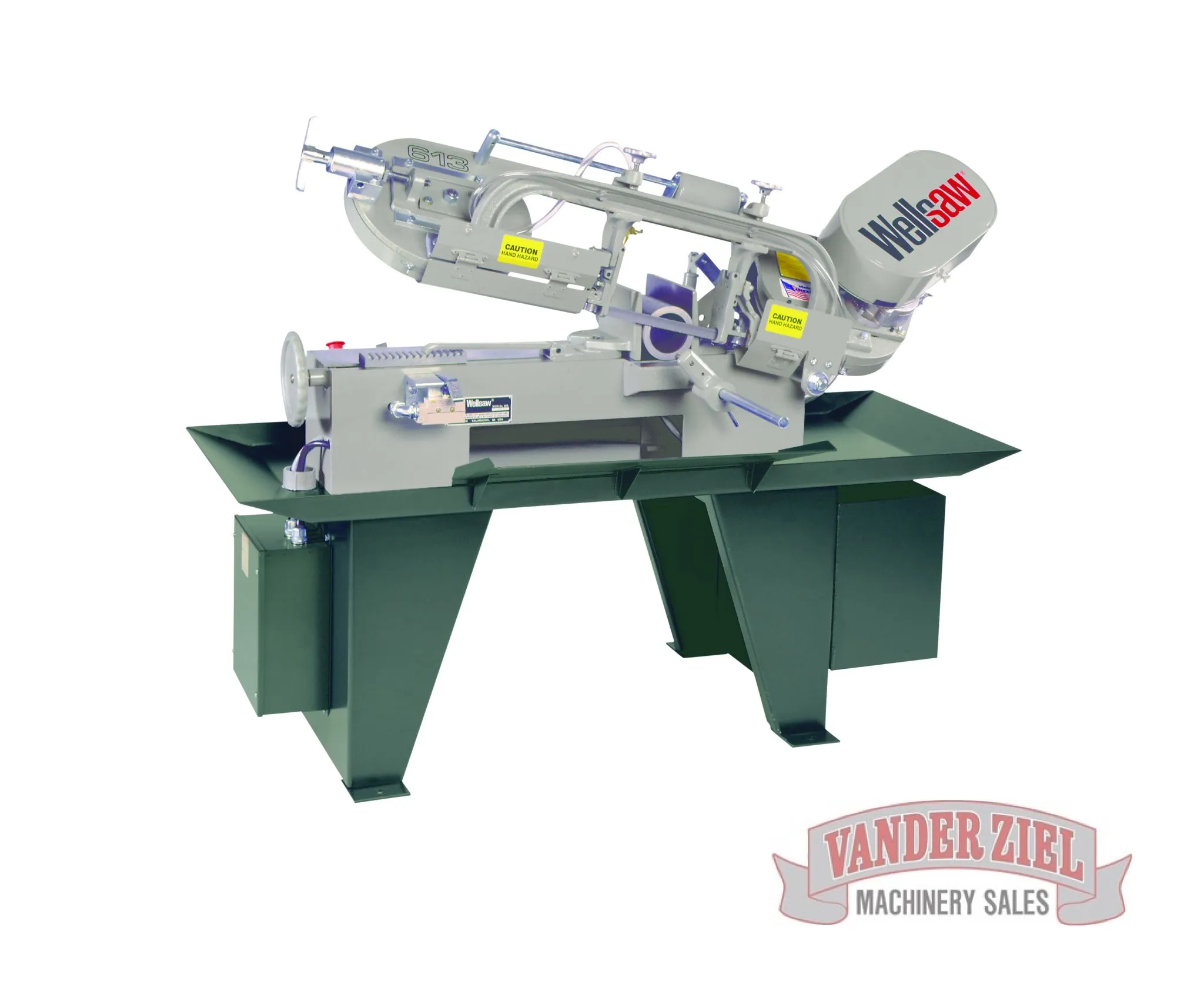

Wellsaw 7" x 13" Horizontal Saw, Model 613 - NEW

Wellsaw 7" x 13" Horizontal Saw, Model 613 - NEW
SKU#3920003
Specifications
Capacity
Round 7"
Flat 13"
Rectangular 6" x 13"
45° Angle 6" x 6-1/2"
Blade Size 3/4" x .035" x 8'3"
Blade Speeds 50-90-160-250 SFPM
Blade Guides Six Sealed Ball Bearings
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1 or
208-230-460/60/3
Coolant System
Tank Capacity
Submersible Pump
8 Gallons
115V/.6 Amp/170 GPH
Vise Control Manual Screw
Swivel Vise To 45º
Feed Control Hydraulic with Adjustable
Counterbalance
Band Wheels 11" Diameter Cast Iron
Bed Height 29"
Floor Area 25"W x 60"L
Shipping Weight Approx. 650 Lbs.
Standard Features
Hydraulic Feed Control with Adjustable Counterbalance Spring
Ball Bearing Blade Guides
Perimeter Ring Gear Blade Drive
1hp Baldor® Motor
Four Blade Speeds
Rite-Tension® Band Tensioning Device
Wet Cutting System
Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed
Quick Acting Vise
Positive Frame Lock
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
