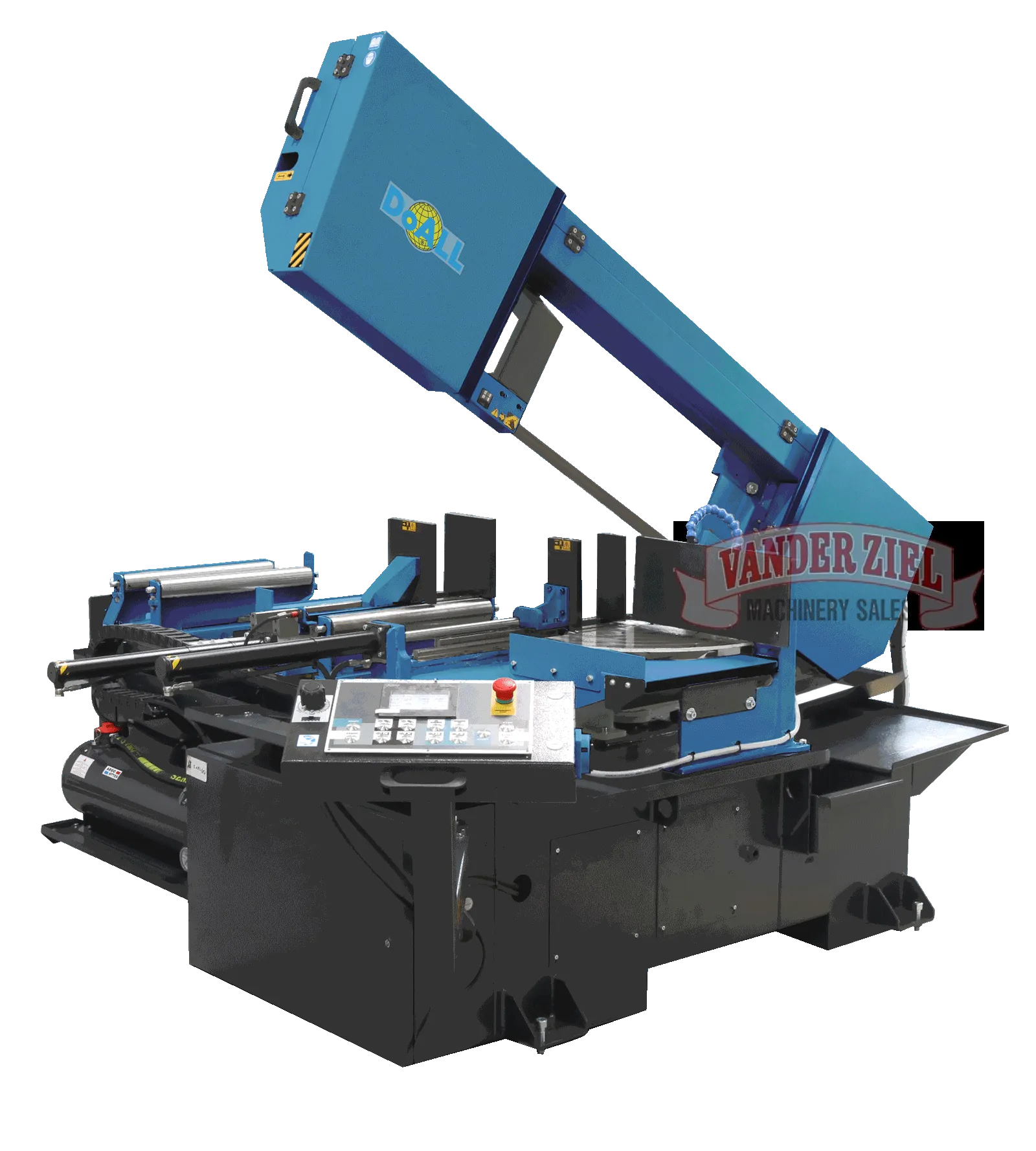

DoAll 14" x 20" Horizontal Saw, Model S-500CNC - NEW
DoAll 14" x 20" Horizontal Saw, Model S-500CNC - NEW
SKU #1120013
Machine Capacity: 14" x 20" (355x508mm)
Production Level: Intermittent
The DoALL S-500CNC StructurALL® miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-500CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the S-500CNC is adjustable to 60° to the right in semi-automatic mode only.
- Cutting Capacity Round Tube: 14" (360mm)
- Cutting Capacity Rectangle: 14 x 20" (360x500mm)
- Cutting Capacity Round Solid: 9-7/8" (250mm)
- Miter Cutting: 60° right
- Nesting Capacity (Min to Max): 0.20" (5mm) to 23.6 x 9.8" (600x250mm)
- Auto Index Single Stroke Min-Max: 0.12-19.7" (3-500mm)
- Auto Index Multiple Stroke Min-Max: 394" (9999mm)
- Capacity Round at 45°: 14.2" (360mm)
- Capacity Rectangle at 45°: 7 x 14.2" (180x360mm)
- Capacity Round at 60°: 11.8" (300mm)
- Capacity Rectangle at 60°: 13.75 x 10.2" (350x260mm)
- Band Saw Blade: Width: 1-1/4 x 0.042" (34x1.1mm), Length: 187" (4750mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive Motor: 4 hp (3kW)
- Hydraulic Pump: 1.14 hp (0.85kW)
- Coolant Pump: 0.07 hp (0.05kW)
- Coolant Tank Capacity: 5-1/4 gal (20 lit)
- Material Pass Line Height: 31-1/2" (800mm)
- Remnant Length Drop: 0.8" (20mm)
- Machine Weight: 3307 lbs (1500kg)
- Dimensions W x L x H: 100 x 100 x 56" (2550x2550x1420mm)
Standard Features
- Mitsubishi saw control
- Variable frequency drive
- Pulley-driven band brush
- Overfeed protection
- Digital read out of cutting angle
- Hydraulic band tension
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One (1) complimentary DoALL bi-metal saw blade
- Operations and parts manuals on CD or USB data stick
REF: 000468
