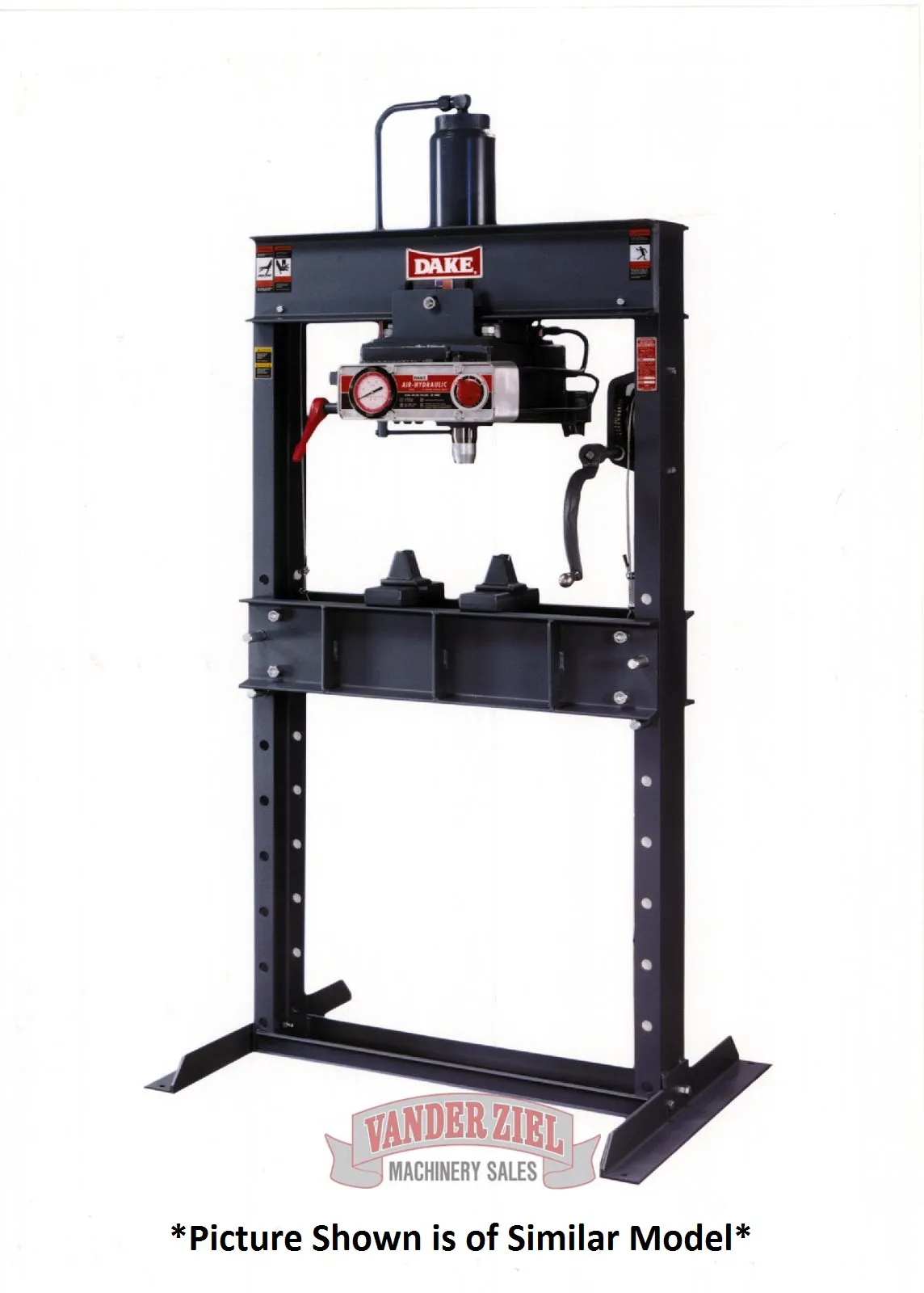

Dake 25 Ton Air Operated H-Frame Press, Model 6-425 - NEW
Dake 25 Ton Air Operated H-Frame Press, Model 6-425 - NEW
SKU #0914005
| Number | 906425 |
| Capacity | 25 tons |
| Operation | Air |
| Horsepower | n/a |
| Voltage | n/a |
| Width between uprights | 33.5" |
| Width between table channels | 5-3/16" |
| Minimum ram to table | 1" |
| Maximum ram to table | 36" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | 13-1/2" |
| Footprint | 42-1/2" x 30" |
| Height | 81" |
| Weight | 800 lbs |
| Base | 42-1/2" x 30" |
| Ram advance speed | 100 ipm |
| Pressing speed | 10 ipm |
| Number of Pumps | 2 |
| Air Pressure | 90-125 psi |
REF: 000376
