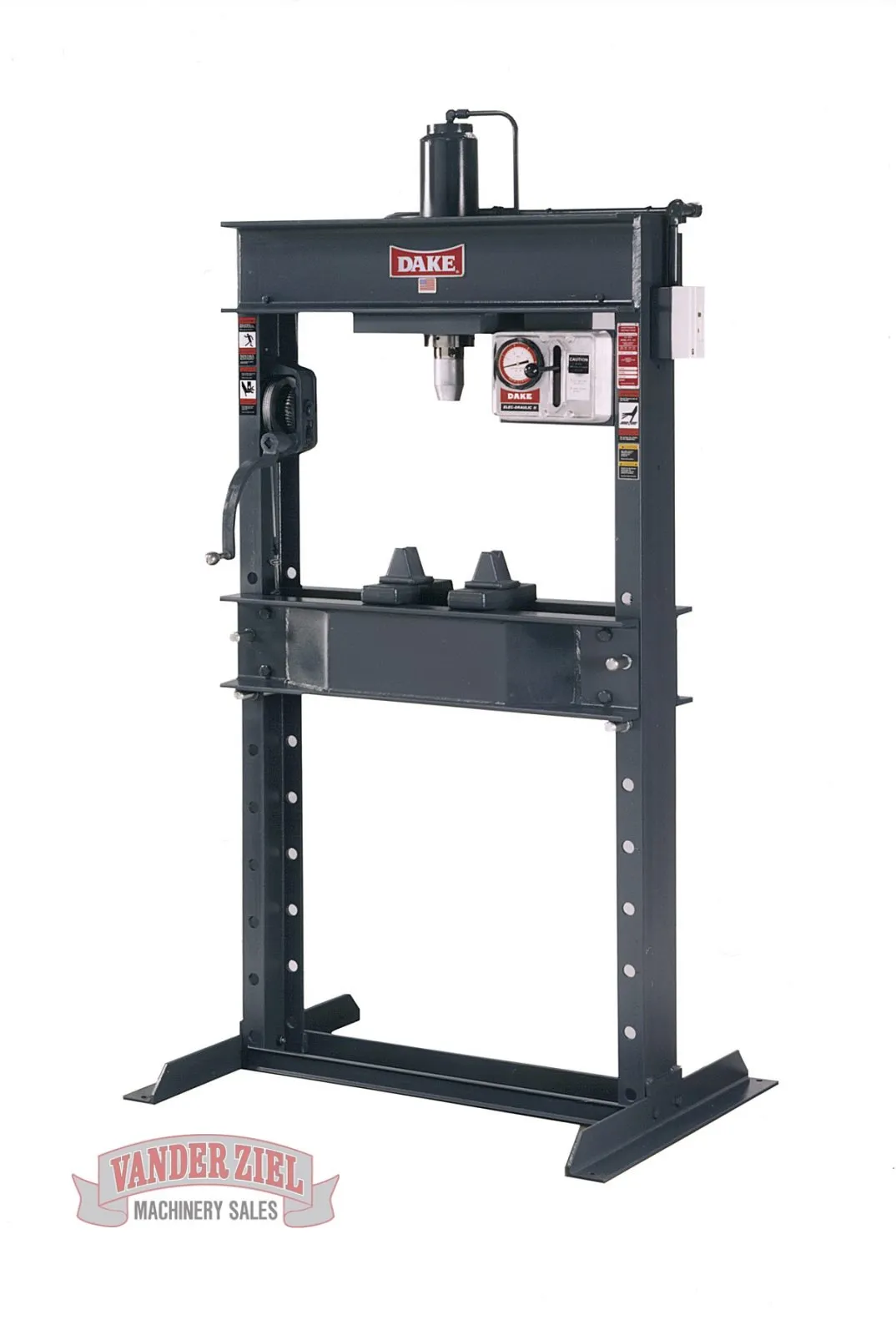

Dake 75 Ton Elec-Draulic II H-Frame Press, Model 8-075 - NEW
Dake 75 Ton Elec-Draulic II H-Frame Press, Model 8-075 - NEW
SKU #0914020
| Number | 908075 |
| Capacity | 75 tons pressing, 28 tons pulling |
| Operation | Electric |
| Horsepower | 2 |
| Voltage | 220V/440V, 3-Phase |
| Width between uprights | 44" |
| Width between table channels | 8-1/4" |
| Minimum ram to table | 7-5/8" |
| Maximum ram to table | 37-5/8" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 55-1/2" x 36" |
| Height | 86" |
| Weight | 1,950 lbs |
| Base | 55-1/2" x 36" |
| Ram advance speed | n/a |
| Pressing speed | 5 ipm |
| RPM | 1,800 |
| Air Pressure | n/a |
REF: 000385
