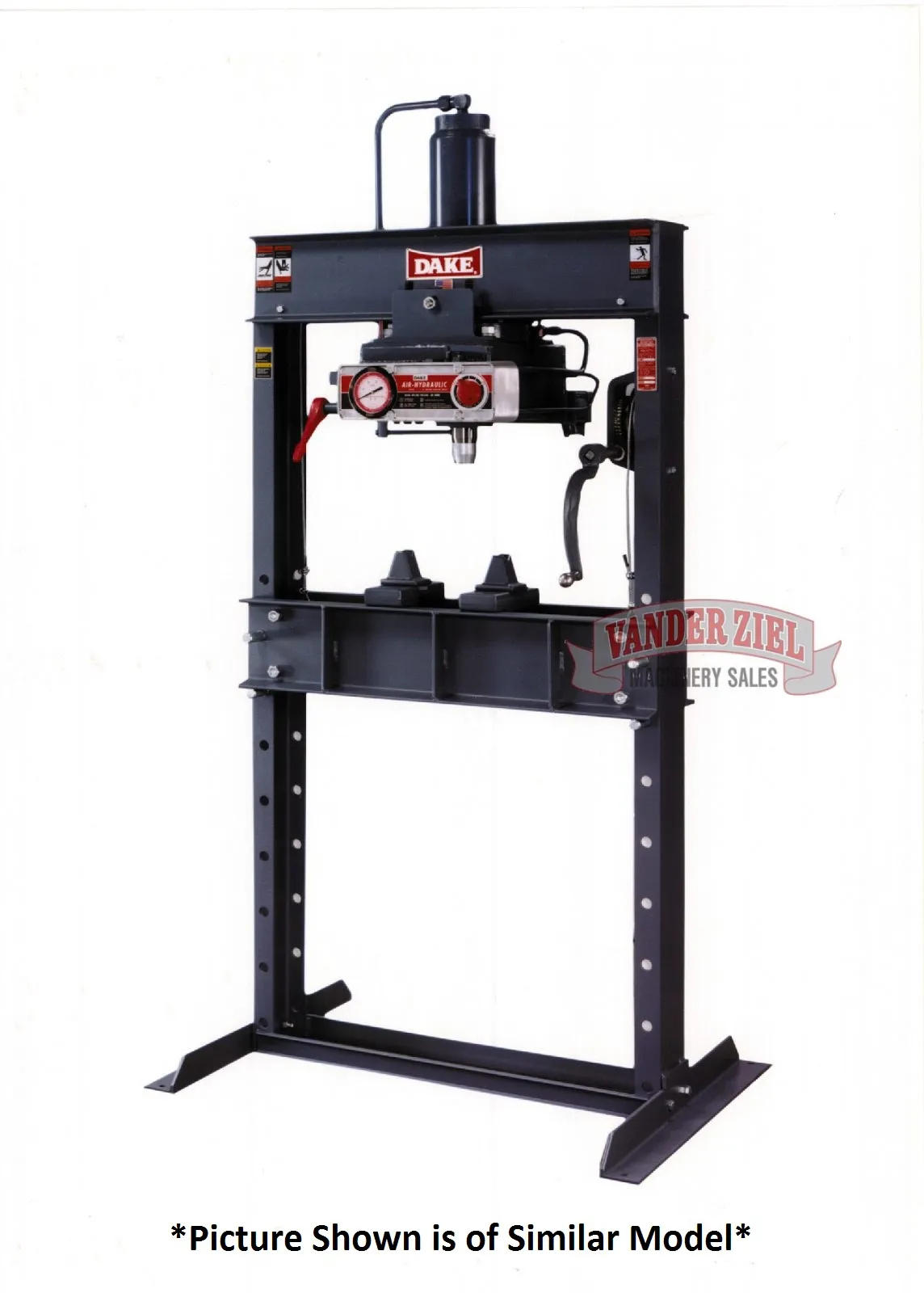

Dake 75 Ton Air Operated H-Frame Press, Model 6-475 - NEW
Dake 75 Ton Air Operated H-Frame Press, Model 6-475 - NEW
SKU #0914009
| Number | 906475 |
| Capacity | 75 tons |
| Operation | Air |
| Horsepower | n/a |
| Voltage | n/a |
| Width between uprights | 44" |
| Width between table channels | 8-1/4" |
| Minimum ram to table | 6" |
| Maximum ram to table | 36" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | 24-5/8" |
| Footprint | 55" x 36" |
| Height | 86" |
| Weight | 1550 lbs |
| Base | 55" x 36" |
| Ram advance speed | 40 ipm |
| Pressing speed | 3-1/2 ipm |
| Number of Pumps | 2 |
| Air Pressure | 90-125 psi |
REF: 000378
