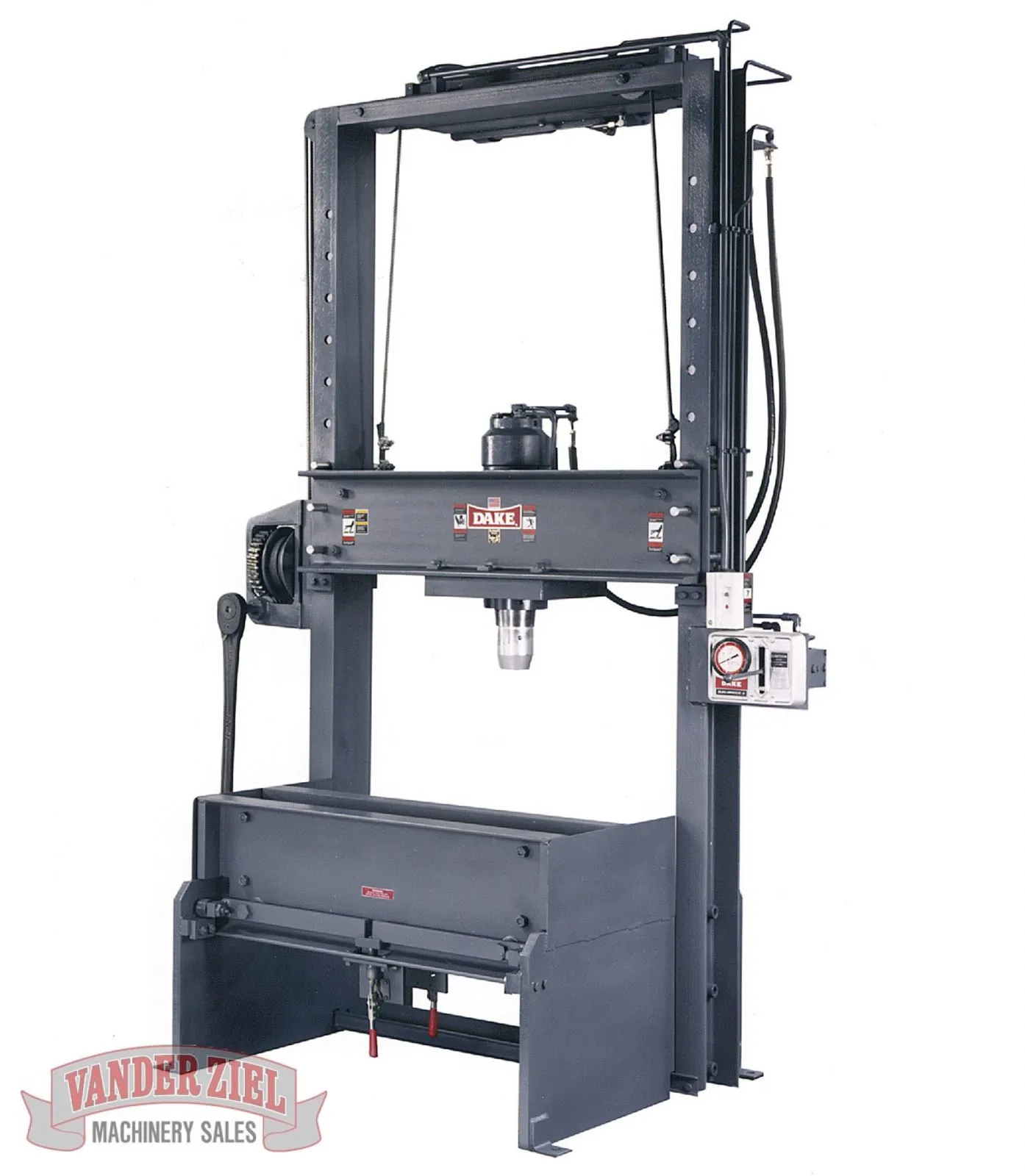

Dake 50 Ton Moveable Table H-Frame Press, Model 42-501 - NEW
Dake 50 Ton Moveable Table H-Frame Press, Model 42-501 - NEW
SKU #0914029
| Number | 942501 |
| Capacity | 50 tons |
| Operation | Elec-Draulic |
| Horsepower | 2 |
| Voltage | 220V/440V, 3-Phase |
| Width between uprights | 32- 3/4" |
| Width between table channels | 7- 1/4" |
| Minimum ram to table | 14" |
| Maximum ram to table | 44" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 37" x 43" |
| Height | 114" |
| Weight | 2,200 lbs |
| Base | 37" x 43" |
| Ram advance speed | n/a |
| Pressing speed | 8 ipm |
| RPM | n/a |
| Air Pressure | n/a |
REF: 000390
