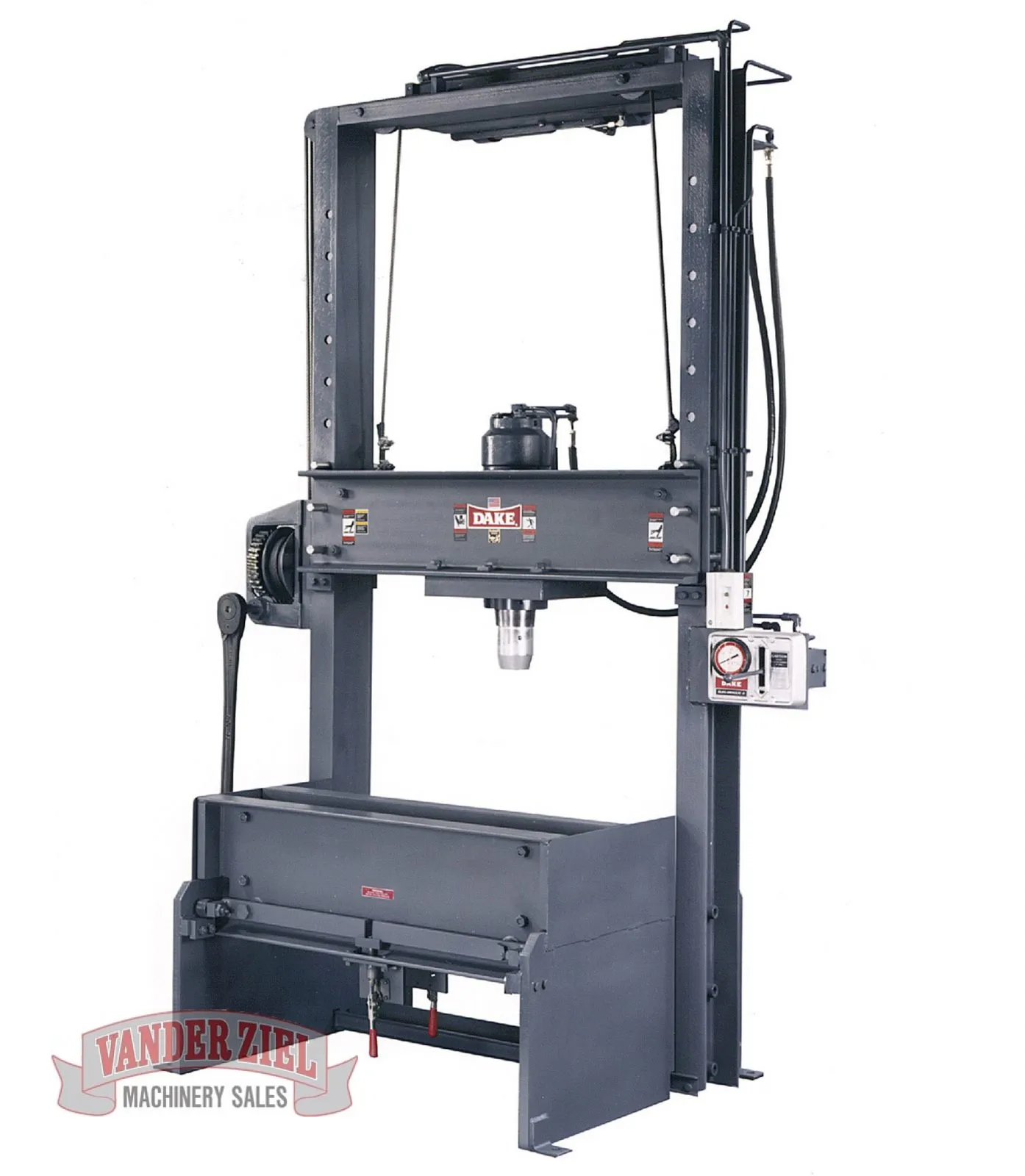

Dake 75 Ton Moveable Table H-Frame Press, Model 42-502 - NEW

Dake 75 Ton Moveable Table H-Frame Press, Model 42-502 - NEW
SKU #0914032
| Number | 942502 |
| Capacity | 75 tons |
| Operation | Elec-Draulic |
| Horsepower | 2 |
| Voltage | 220V/440V, 3-Phase |
| Width between uprights | 44" |
| Width between table channels | 8- 1/4" |
| Minimum ram to table | 13" |
| Maximum ram to table | 43- 3/8" |
| Ram travel | 10" |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 47" x 52" |
| Height | 116" |
| Weight | 2,950 lbs |
| Base | 47" x 52" |
| Ram advance speed | n/a |
| Pressing speed | 5 ipm |
| RPM | n/a |
| Air Pressure | n/a |
REF: 000392
