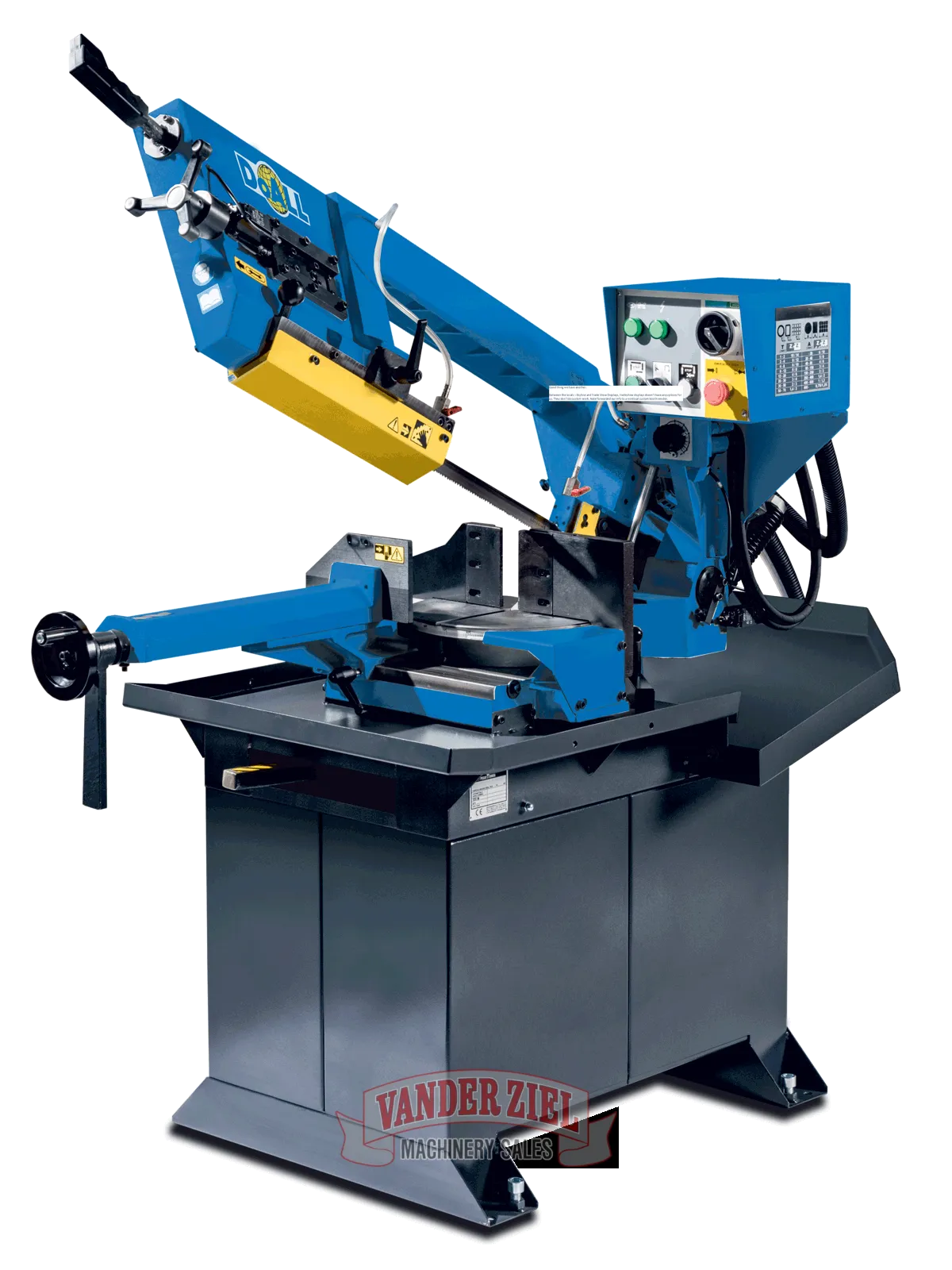

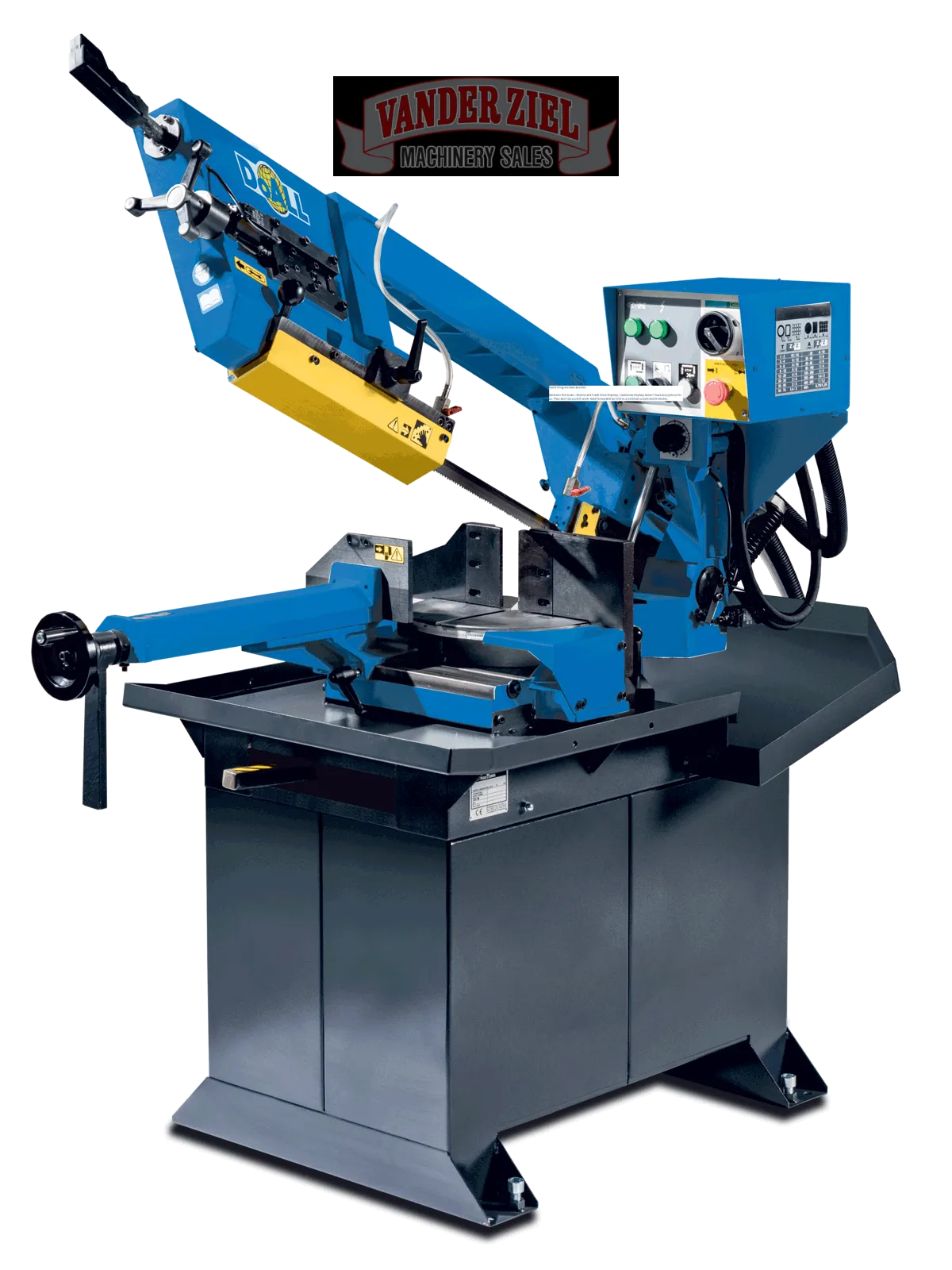

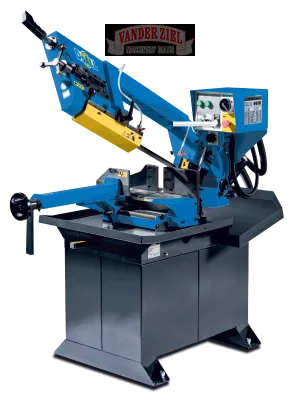

DoAll 7" x 11" Dual Miter Manual Bandsaw, Model DS-280M

The DoALL DS-280M StructurALL® 2-speed, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. The DS-280M dual-swivel ability allows miter-cutting from 60° right and 45° left. The DS-280M features 2-speeds, a blade-driven band brush and a 3.3 foot manual set work stop. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round Tube: 9" (230mm)
- Cutting Capacity Rectangle: 11" x 8.2" (280mm x 210mm)
- Cutting Capacity Round Solid: 5.9" (150mm)
- Miter Cutting: 60° right and 45° left
- Capacity at 45°: Round: 7.5" (190mm), Rectangle: 7" x 6.7" (180mm x 170mm)
- Capacity at 60°: Round: 4" (100mm), Rectangle: 4" x 4.75" (100mm x 70mm)
- Band Saw Blade Width: 1" x 0.035" (27x0.9mm)
- Maximum Blade Length: 107" (2720mm)
- Band Speed: 115 fpm / 230 fpm (35mpm / 70mpm)
- Band Drive: 1hp / 1.5hp (0.75kw / 1.1kw)
- Coolant Pump: 0.07 hp (0.05kW)
- Material Pass Line Height: 31-1/3" (795mm)
- Machine Weight: 618lbs (280kg)
- Dimensions W x L x H: 65" x 35" x 74" (1650mm x 885mm x 1860mm)
Standard Equipment:
- 2-Speed gear box
- Flood coolant
- Blade-driven band brush
- 3.3 ft (1M) Manual set work stop
- Tool kit
- Complimentary DoALL cutting fluids package
- One (1) DoALL bi-metal saw blade
- Instruction and parts manuals on CD or USB data stick
REF: 011431
