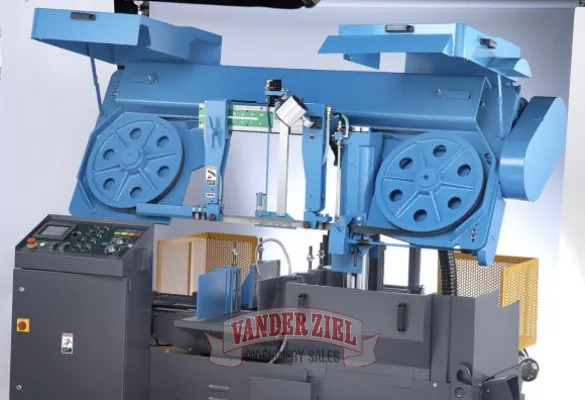

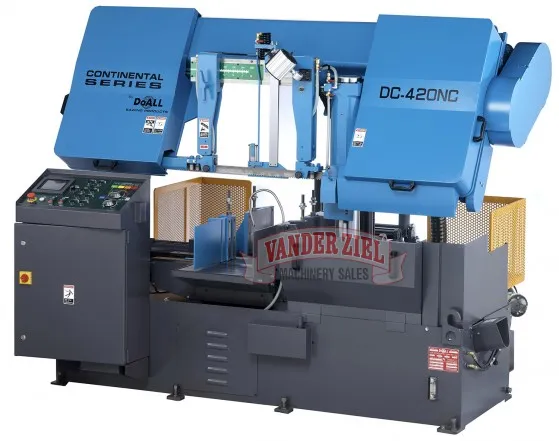

DoAll 16.5" x 16.5" Production Horizontal Saw, Model DC-420NC - NEW
DoAll 16.5" x 16.5" Production Horizontal Saw, Model DC-420NC - NEW
SKU #1120016
Machine Capacity: 16-1/2 x 16-1/2" (420x420mm) | Round: 16-1/2"
Production Level: High
The DC-420NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Cutting Capacity Round: 16-1/2" (420mm)
- Cutting Capacity Rectangle: 16-1/2" x 16-1/2" (420mm x 420mm)
- Bundle Capacity Maximum: 14-1/2" x 7-5/8" (370mm x 200mm)
- Bundle Capacity Minimum: 6-1/2" x 3-1/4" (165mm x 80mm)
- Band Saw Blade (L x W x Gage): 192 x 1-1/2 x 0.05" (4880x38x1.3mm)
- Band Speed: 72 - 390 SFPM (22 - 120 m/min)
- Band Drive: 10 HP (7.5kW)
- Hydraulic Pump: 2HP (1.5kW)
- Hydraulic Tank Capacity: 22 Gal. (85 Liters)
- Coolant Tank Capacity: 26 Gal. (100 Liters)
- Automatic Index Length Single: 19.68" (500mm)
- Automatic Index Length Multiple: 177.16" (4500mm)
- Material Pass Line Height: 27-1/2" (698mm)
- Floor Space Required: 97 x 88 x 66" (2450x2235x1665mm)
- Machine Weight: 5512 lbs (2500kg)
Standard Equipment:

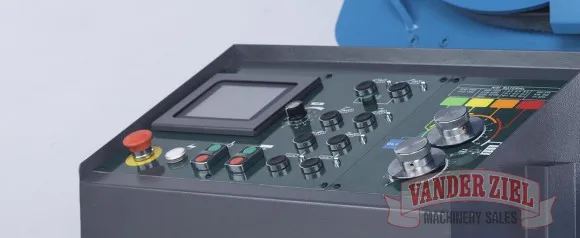

- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Nesting fixture for bundle cutting

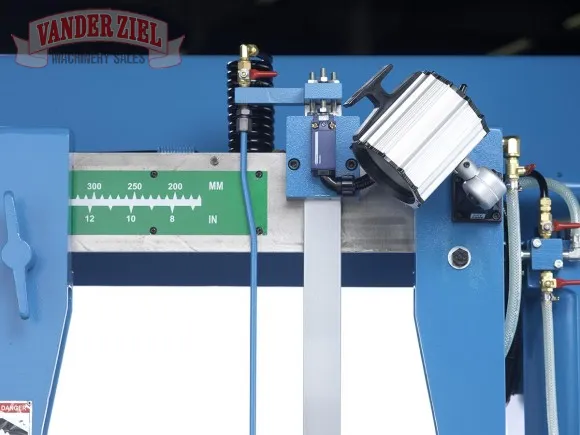

- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush

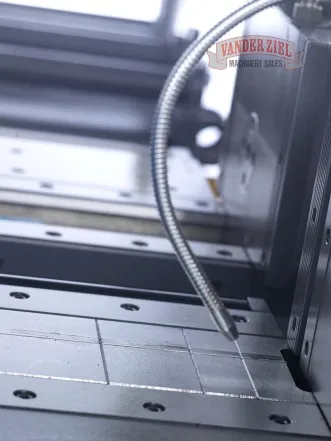

- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light

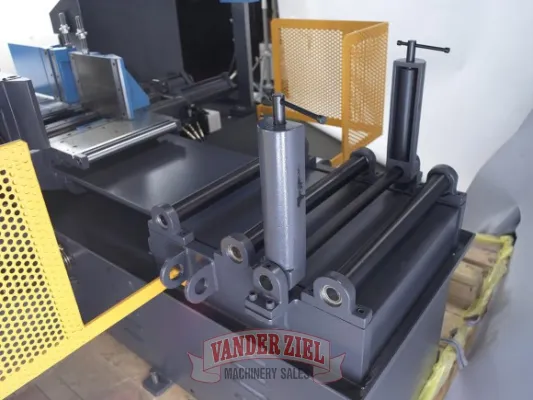

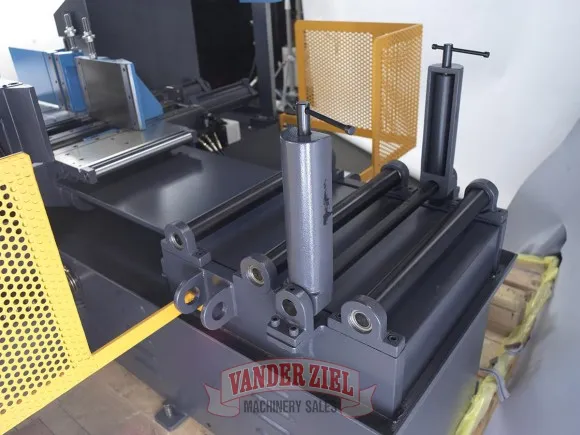

- One 6 1/2 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
REF: 000471
