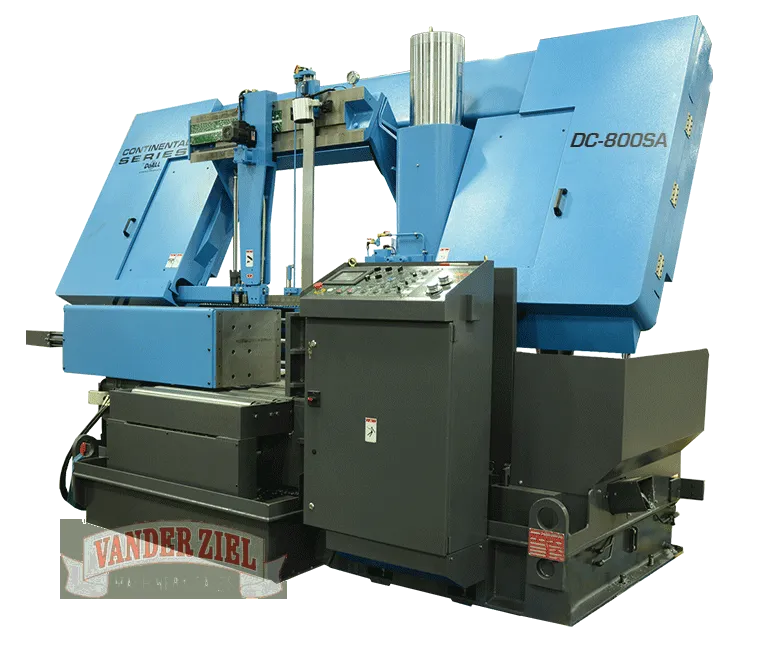

DoAll 31.5" x 39.5" Semi-Automatic Horizontal Saw, Model DC-800SA - NEW
DoAll 31.5" x 39.5" Semi-Automatic Horizontal Saw, Model DC-800SA - NEW
SKU #1120025
Machine Capacity: 31-1/2 x 39-1/2" (1000x800mm) | Round: 31-1/2" (800mm)
Production Level: High
The DC-800SA Semi-Automatic Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.
- Cutting Capacity Round: 31.5" (800mm)
- Cutting Capacity Rectangle: 39.3 x 31.5" (1000x800mm)
- Band Saw Blade (L x W x Gage): 344 x 2-5/8 x 0.063" (8800x67x1.6 mm)
- Band Speed: 85-279 FPM (16 - 85 m/min)
- Band Drive: 15 hp (11.1kW)
- Hydraulic Pump: 3 hp (2.2kW)
- Hydraulic Tank Capacity: 22.5 gal (85 L)
- Coolant Pump: 1/4 hp (0.2 kw)
- Coolant Tank Capacity: 58 gal (220 L)
- Material Pass Line Height: 28.3" (720 mm)
- Machine Weight: 24251 lbs (11000 kg)
- Dimensions W x L x H: 171.3 x 85 x 104.3" (4350x2160x2650 mm)
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One set of 6-foot (2-meter) roller stands
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
