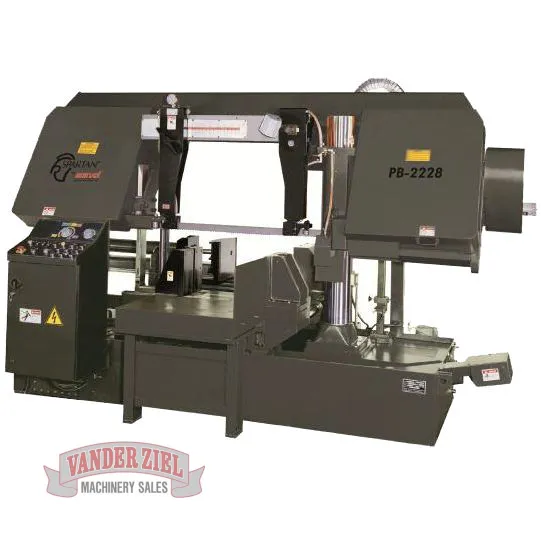

Marvel Spartan 22" x 28" Semi Automatic Horizontal Saw, Model PB2228 - NEW

Marvel Spartan 22" x 28" Semi Automatic Horizontal Saw, Model PB2228 - NEW

SKU #2320022

STANDARD SPARTAN MODEL PB 2228 HEAVY DUTY SEMI  AUTOMATIC, HORIZONTAL, METAL CUTTING BANDSAW WITH 10 H.P. AND 2" BLADE

Capacity:  22" x 28", 22" round. Minimum Vise Clamp 4.33"

Blade:  2" x .063" x 22' 4"

Blade Tension:  Hydraulically controlled to (38,000 psi). Includes Motion Detector switch to shut down machine if the blade should stall or break.

Speed Range:  60 -265 fpm infinitely variable, driven by heavy-duty worm gear transmission  frequency inverter blade speed control.

Feed Force:  Hydraulic feed pressure 0 -350lbs. (0 - 1334 N) infinitely variable.  Feed force and feed rate can be independently controlled for optimum cutting.

Secondary Head Hydraulic Cylinder: Maintains constant feed rates for optimum cutting performance

Hydraulic Bar Feed:  For manual material positioning, shuttle stroke is11.8".

Motors:  Blade Drive: 10 H.P. (7.5 kW). Hydraulic Pump - 3 H.P. (2.25kW).

Coolant Pump Motor: 0.25 H.P. (.1875kW).

Automatic Saw Return: Automatic saw head return with height control

Blade Motion Detector: Automatic shut-down of machine during blade breakage.

Blade Guides:  Hydraulically controlled solid carbide guides are actuated when the machine's hydraulic system is started to ensure rigid clamping for accurate cuts. The cast iron guide arms are manually positioned.

Chip Brush:  Powered from the main drive shaft of the saw, cleans chips from blade to improve cutting performance and blade life.

Vise Jaws:  The front vise jaws are split to hold material on both sides of the blade, reducing vibrations and burrs. Vise height is 11.22" (285mm).

Work Light:  Standard feature, mounted directly over work area.

Floor Space Required: 11' 3" x 7' 3"

Hydraulic Capacity ..................................................................................................................30 gal
Coolant Capacity.....................................................................................................................21 gal
Table Height..........................................................................................................................29.5 in
Crated weight of machine.......................................................................................................9,920 lbs
Table load capacity...............................................................................................................7,250 lbs

Electrical Voltage required: 230V AC 3 Phase or 460 AC 3 Phase (MUST CHOOSE ONE)

Start-up Supplies:  Includes Operator's Manual, Start-up Blade, Hydraulic Fluid
