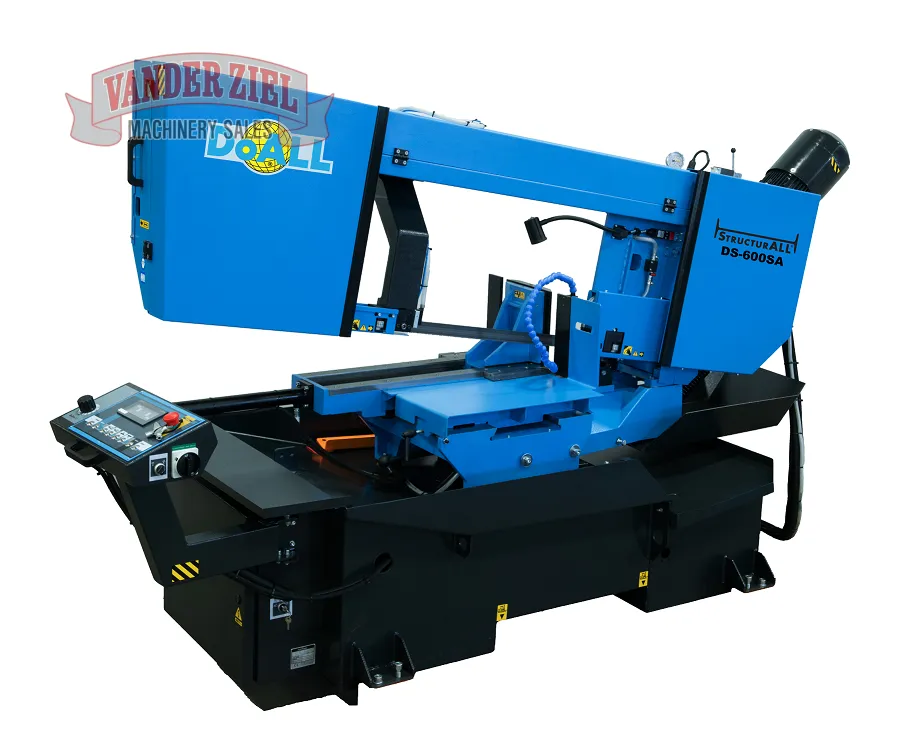

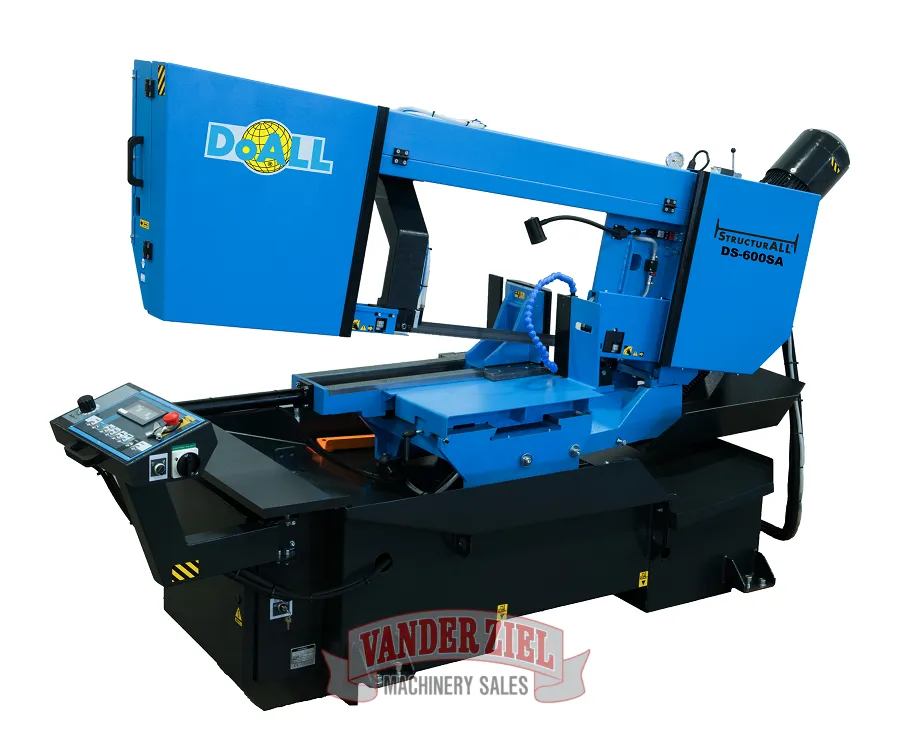

DoAll 18" x 23.5" Dual Miter Semi-Automatic Band Saw, Model DS-600SA - NEW
The DoALL DS-600SA StructurALL® semi-automatic, dual-miter metal-cutting band saw is designed for straight and angled cuts. Miter angle cuts are possible up to 60° left and right. A digital readout comes standard and makes it easy to verify exact cutting angles. Also classified as a horizontal structural, scissor saw, the DoALL DS-600SA is ideal for fabrication shops, repair facilities and industrial manufacturing plants that cut tubing and structural shapes and occasional large solids. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
- Cutting Capacity Round Tube: 18" (460mm)
- Cutting Capacity Rectangle: 23.5" x 18" (600x460mm)
- Cutting Capacity Round Solid: 15.75" (400mm)
- Miter Cutting: 60° left and 60° right
- Nesting Capacity (Min to Max): 0.20" (5mm) to 23.6 x 9.8" (600x250mm)
- Capacity at 45°: Round: 18" (460mm), Rectangle: 18.5" x 9.5" (470x240mm)
- Capacity at 60°: Round: 12.6" (320mm), Rectangle: 13" x 7" (330x180mm)
- Band Saw Blade: Width: 1.5" (41mm), Length: 212" (5380mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive Motor: 5 hp (4kW)
- Hydraulic Pump: 1 hp (0.75kW)
- Coolant Pump: 0.07 hp (0.05kW)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 2646 lbs (1200kg)
- Dimensions W x L x H: 136 x 45 x 65" (3457x1140x1650mm)
Standard Equipment:

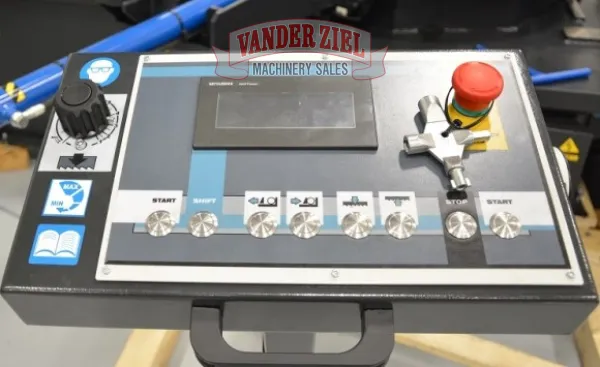

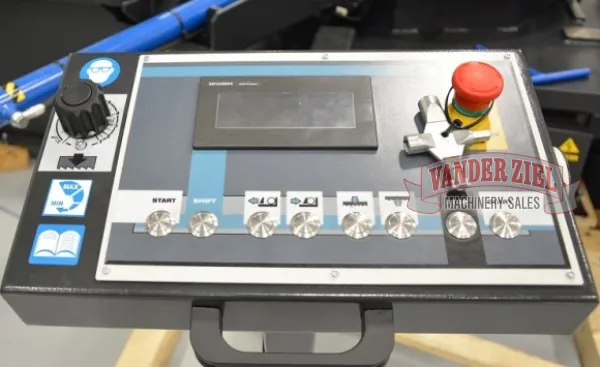

- Mitsubishi saw control
- Variable frequency drive
- Pulley-driven band brush
- Overfeed protection
- Digital read out of cutting angle
- Hydraulic band tension
- Work light
- Mist-style band lubrication
- Variable vise pressure control
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One (1) complimentary DoALL bi-metal saw blade
- Operations and parts manuals on CD or USB data stick
REF: 011432
